Revotron 1.2T
73
2.6 ENGINE SYSTEM :
A. AIR INTAKE SYSTEM :

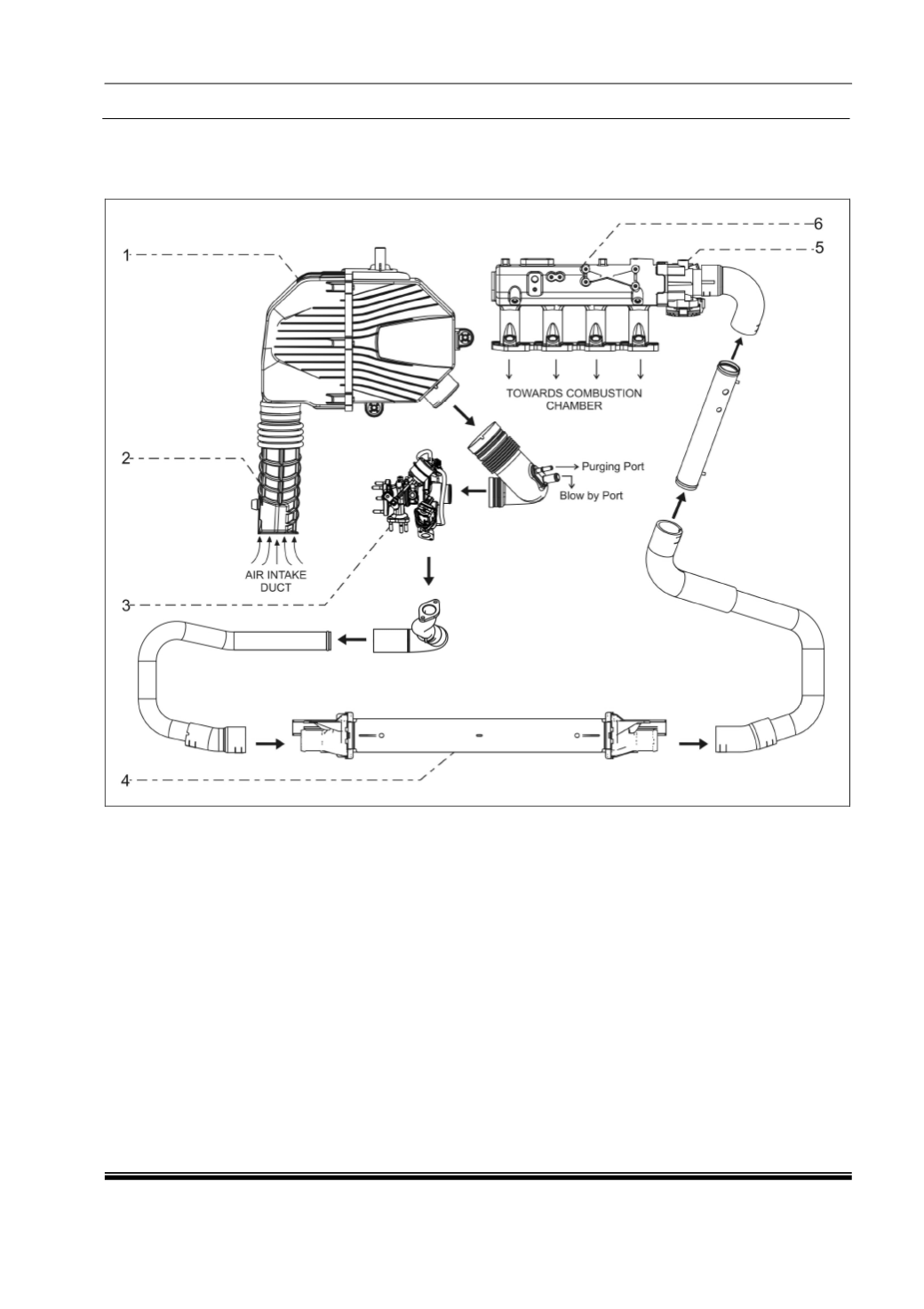

Air Intake System Schematic Layout :
1 Air Filter
4 Intercooler
2 Intake Snorkel
5 Electronic Throttle Control
3 Turbocharger
6 Intake Manifold
Description :
Air is drawn into the combustion chamber
through the air intake system as shown in
above schematic layout.
The air is driven to the intake manifold
primarily due to the suction created by the
engine. The fresh air from the outside
atmosphere is made to pass through air
snorkel and air filter and into the turbocharger.
Here the air is compressed by the
turbocharger which is driven by exhaust gas.
The compressed air then passes through the
intercooler where it made to dissipate the heat
it has gained by compression. From
intercooler it is drawn into the intake manifold
and into the engine.
The Air intake System consists of the
following components.
1. Air Filter
2. Intake Snorkel
3. Turbocharger
4. Intercooler
5. Electronic Throttle Control
6. Intake Manifold
