ZEST AND BOLT - page 123

Revotron 1.2T

B. BLOW BY SYSTEM :

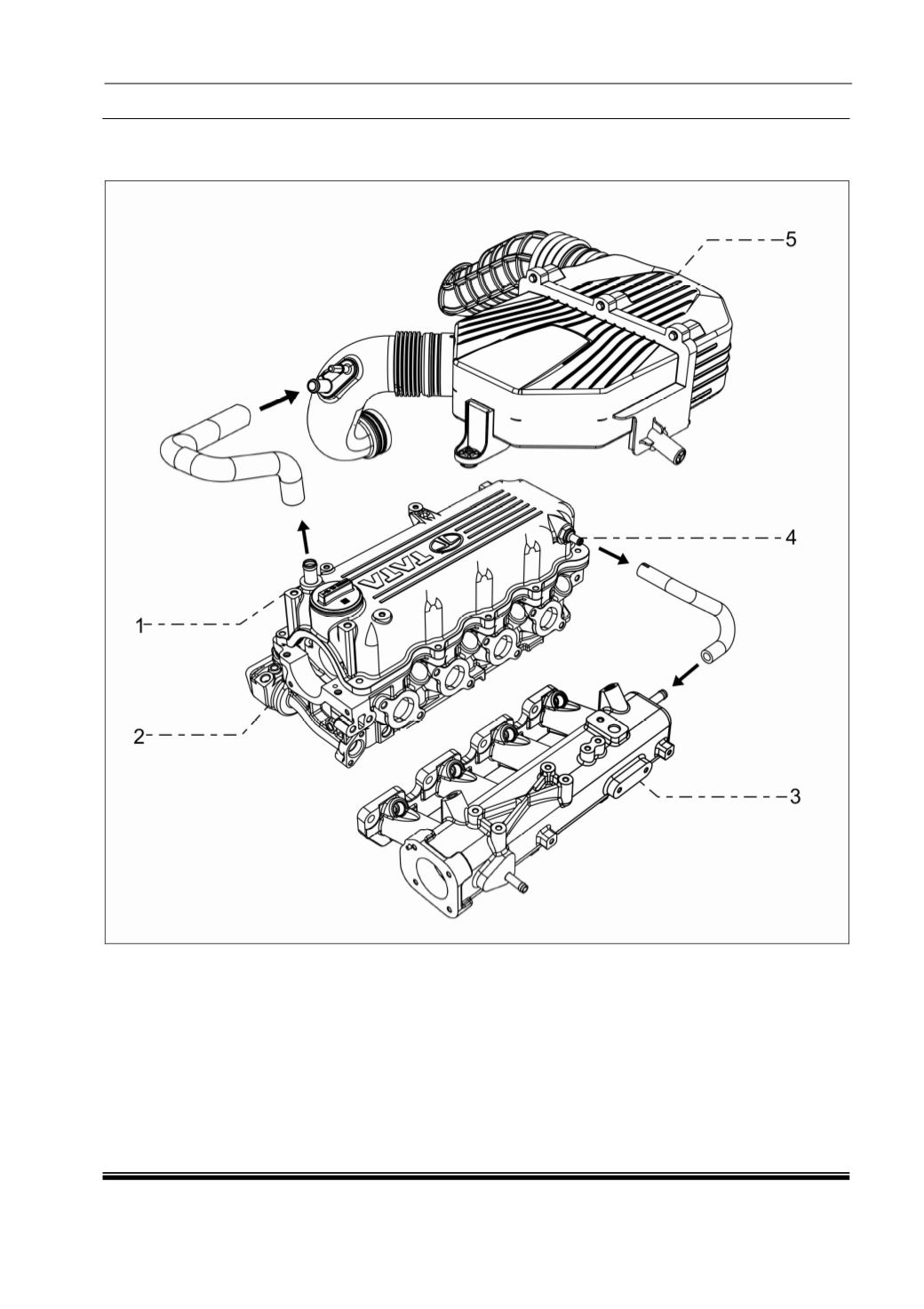

Blow By Schematic Layout

1 Cylinder Head Cover

4 Non Return Valve

2 Cylinder Head

5 Air Filter

3 Intake Manifold
