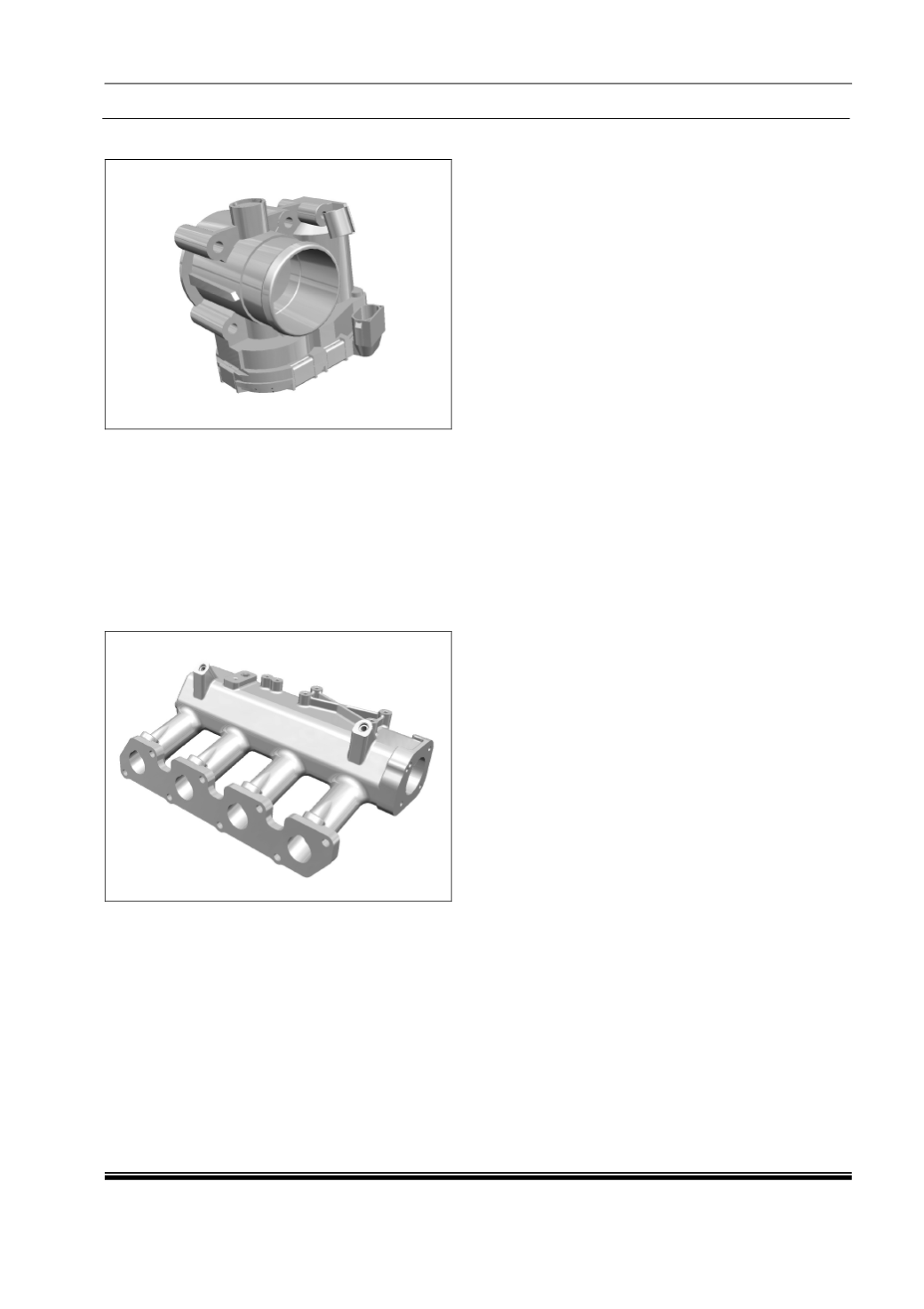

5. Electronic Throttle Control :
A DC motor drive is used to move the
throttle valve over the complete movement
range. The DC motor is directly controlled by
the ECU of the Diesel engine. Throttle Valve
H-bridge driver of EMS ECU provides
bidirectional control with active recirculation
and over current detection.
6. Intake Manifold :
The intake manifold is located between
the air intake pipe supplying air from the
intercooler and cylinder head. It is mounted
on the cylinder head. The air from the air filter
flows to the engine cylinder through the air
intake manifold.
