ELECTRICAL
111
SPECIFICATIONS
Operating voltage range: 8 V to 16 Vdc
Operating temperature range: -40°C to +85°C
Storage Temperature range: -40°C to +85°C
Diagnostics: KWP2000 protocol over k-line
Unlock Mechanism: CAN 2.0B based

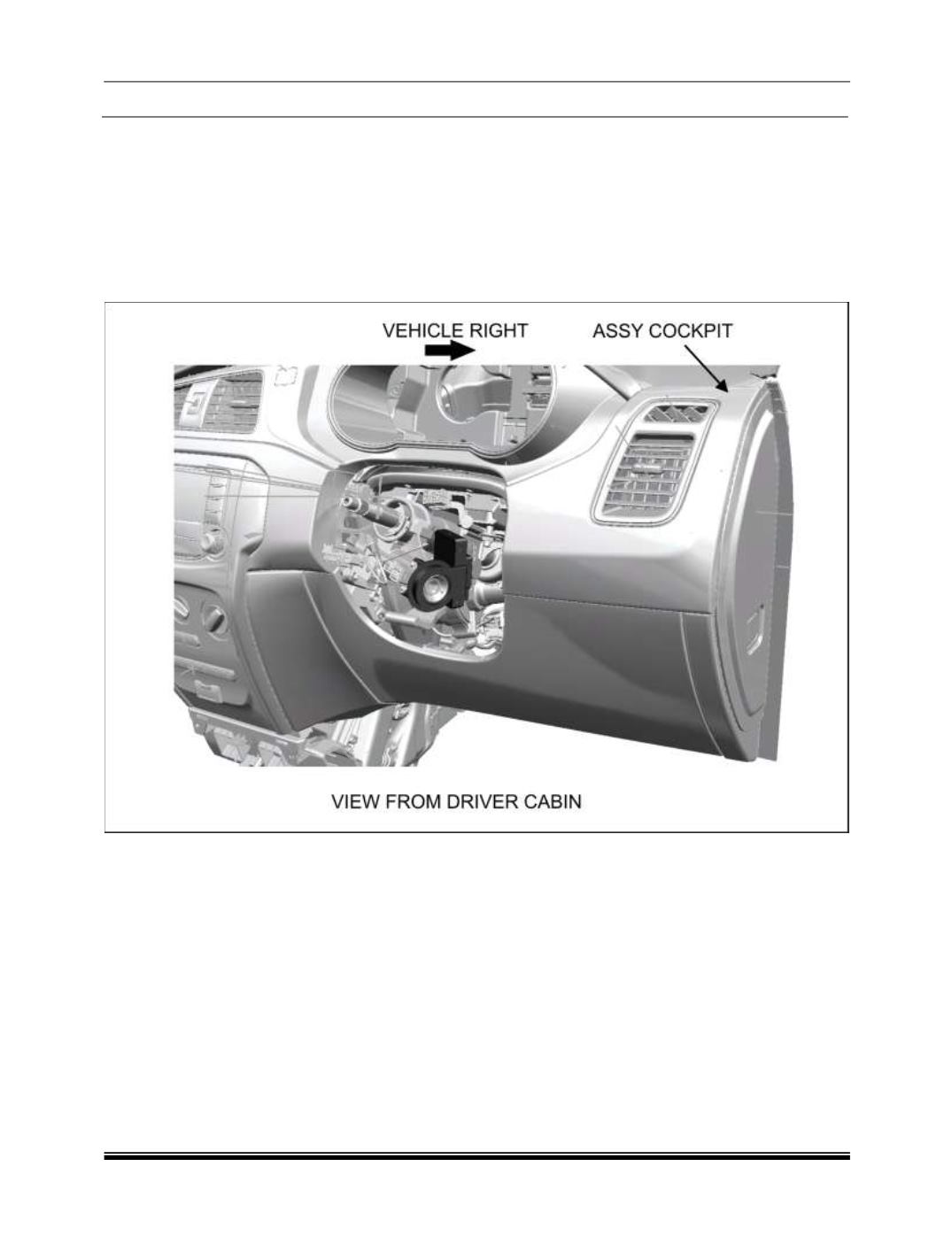

LOCATION
Note:
As the Immobilizer PCB (located in dash board) & Antenna PCB (located in ignition lock) are connected
without any connector, so please take necessary precautions while removing the immobilizer/
dashboard.
.
