KRYOTEC ENGINE
85

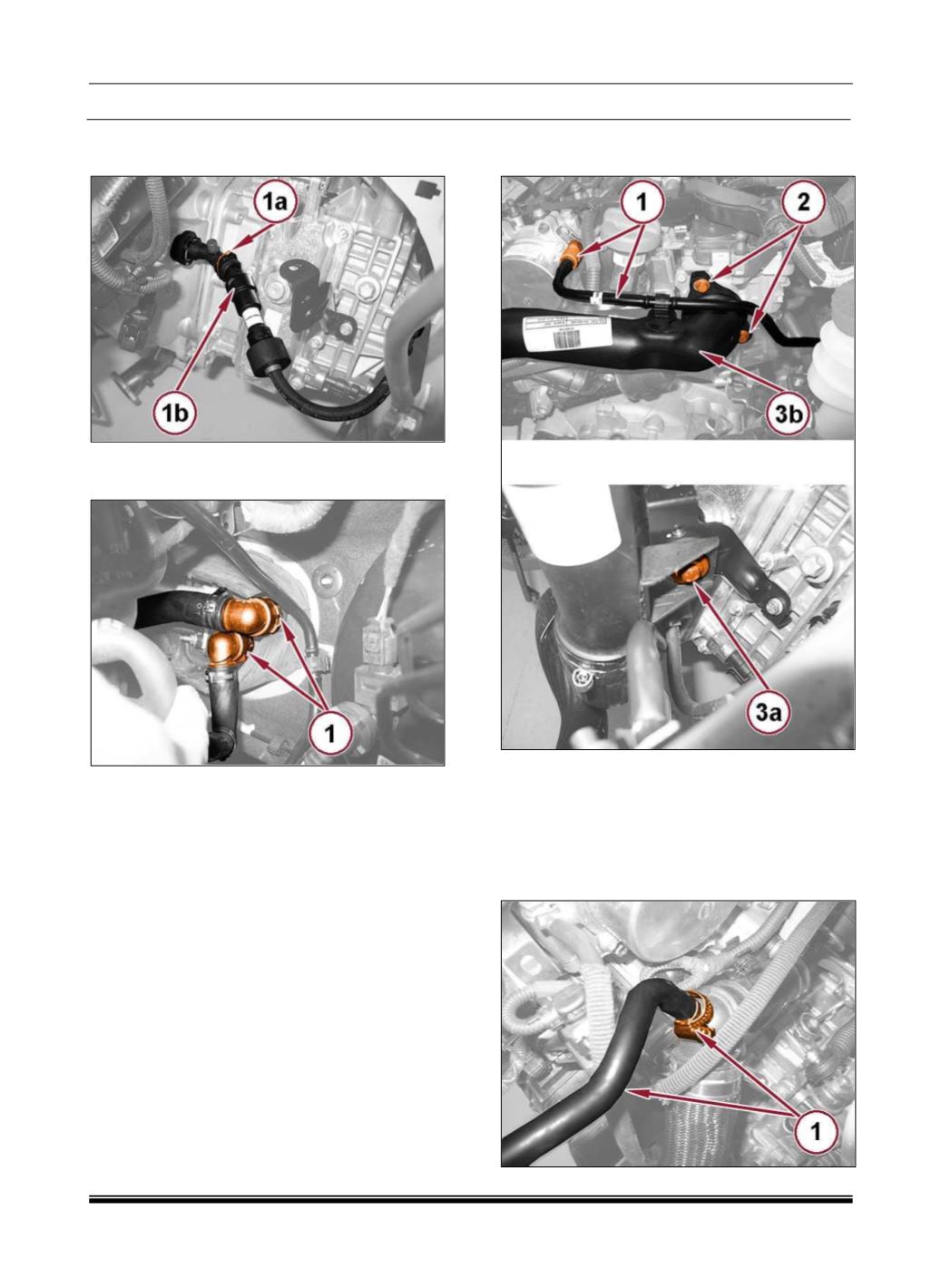

34. Lift the retaining clip (1a) and disconnect the
hose (1b) from the clutch slave cylinder.
35. Disconnect the heater core hose quick
couplings (1).
36. Disconnect the quick coupling (1) and remove
the vacuum hose from the vacuum pump.
37. Remove the screws (2) securing the air delivery
pipe to the throttle body.
38. Remove the screw (3a) and remove the air
delivery pipe from the throttle body (3b).
39. Loosen the clamp (1) and remove the degas
hose from the thermostat.
