ELECTRICAL
1
1. INSTRUMENT CLUSTER
FEATURES
Dynamic and monitoring information (e.g. fuel level) to which the driver should respond, is indicated in the
instrument cluster.
The Instrument Cluster has following features
Analogue Gauge : Speedometer, Tachometer
Bar graph: Engine coolant Temperature (as a part of LCD display), Fuel gauge
LCD Display : Clock, Odometer & Trip meter (A & B)
Tell tales
Mode & Set switches

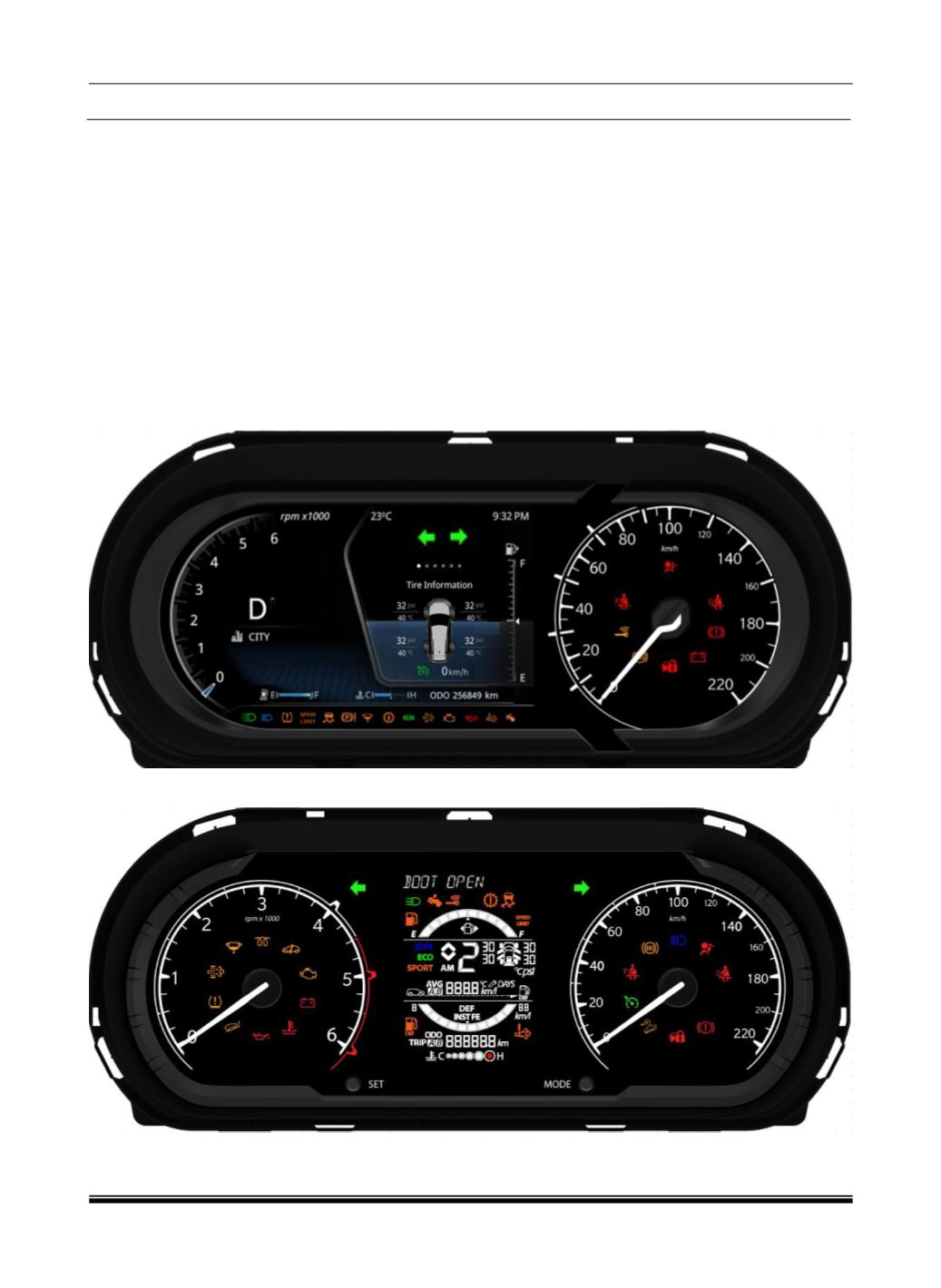

7” Display Instrument Cluster
4” Display Instrument Cluster
