6F33 TRANSAXLE
38

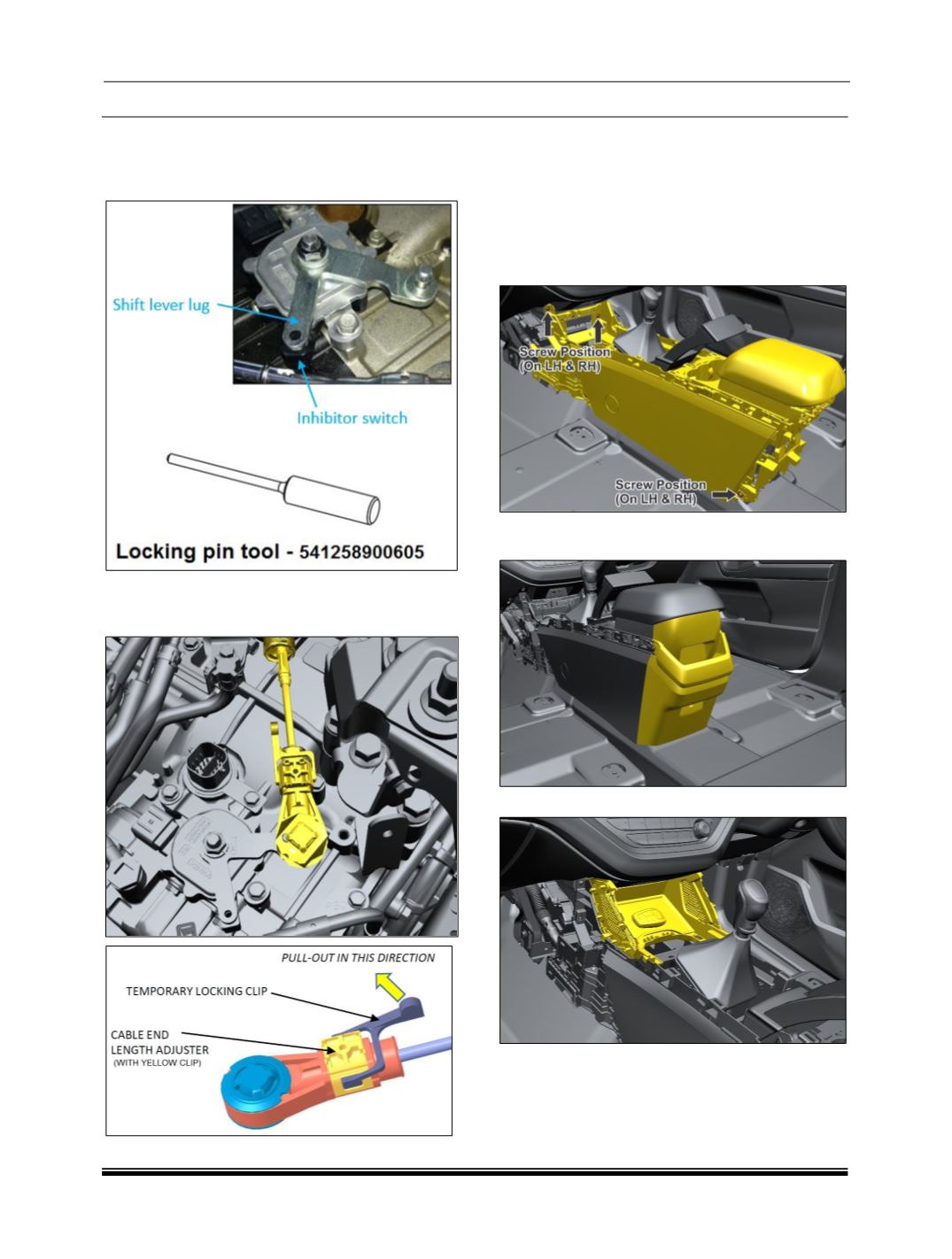

7. Place/lock the transaxle shift lever in “N” mode
(Neutral mode) by matching/aligning shift lever
hole & Inhibitor switch hole on transaxle with the
help of
Locking pin tool 541258900605.
8. Snap fit the cable end socket (with adjustor
body) into spherical ball pin of shift lever on
transaxle.
9. Remove the temporary locking clip of cable end
and Lock/press the yellow clip on adjustor body.
10.Remove neutral locking pin from Gear shifter
housing.
11.Shift into all four mode( P-R-N-D) and check all
modes are engaging properly.
12.Install Main console structure Assembly with
PEPS antenna & wiring harness.
13.Install Console Rear Storage Assembly with
Auxiliary USB.
14.Install Console Lower trim Assembly.
