KRYOTEC ENGINE
109

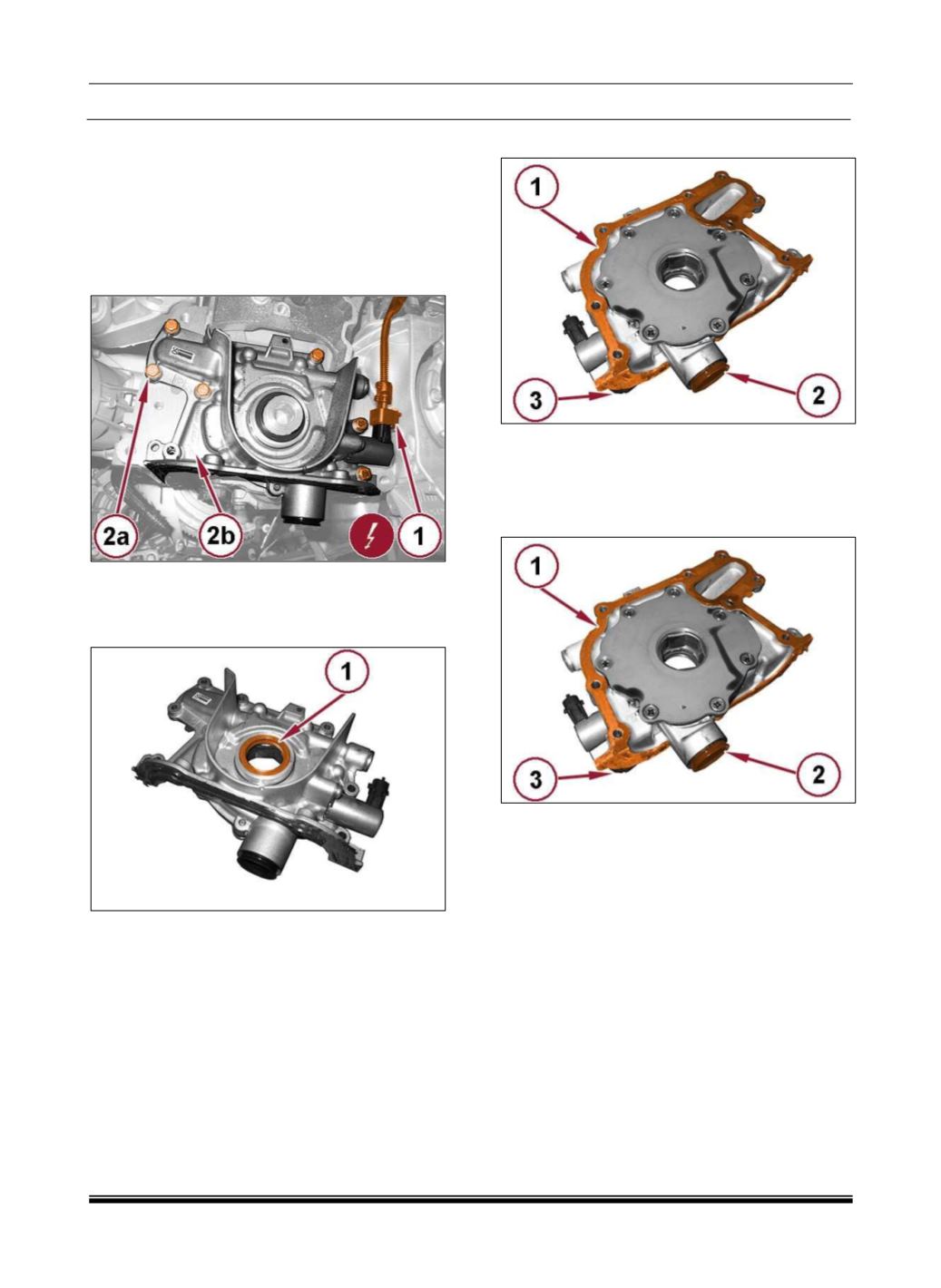

L. ENGINE OIL PUMP
REMOVAL
1. Remove the crankshaft sprocket (Refer to 09 -
Engine/Valve Timing/BELT and SPROCKETS,
Timing/Removal and Installation).
2. Disconnect the oil pump solenoid wire harness
connector (1).
3. Remove the bolts (2a) and the engine oil pump
(2b).
4. Remove the engine oil pump front oil seal (1).
5. Remove the oil pump gasket (1).
6. Remove the oil pump intake seal (2).
FITMENT
1. Install a NEW oil pump gasket (1) and intake seal
(2).
2. Install the oil pump (3) and tighten the bolts to
the proper (Torque Specifications).
3. Install a NEW front oil seal with tool 2000004100.
4. Connect the oil pump solenoid wire harness
connector.
5. Install the timing drive gear (Refer to 09 -
Engine/Valve Timing/CHAIN and SPROCKETS,
Timing/Removal and Installation).
