Trouble Shooting:-
Flow Diagram or table format for diagnosing the fault code
Step no.Description
Check Point
if YES
if NO
1
Remove the 12V LV battery
negative terminal.
After a minute connect the 12V
LV battery negative terminal &
"Ignition Switch" to ON
position.
Crank and wait for 2 minutes.
Check for the fault code.
Fault code
P130600 is
present?
Replace E-drive. For
replacement
instructions of
Edrive, contact Tata
Authorized supplier.
Repair complete.
DTC
’
s confirmation:-
After rectification, ensure the following points by referring E-drive parameters using TML
diagnostic tool before handing over to customer.
a) Check the torque value.
b) Check whether the vehicle runs properly in Forward and reverse direction.

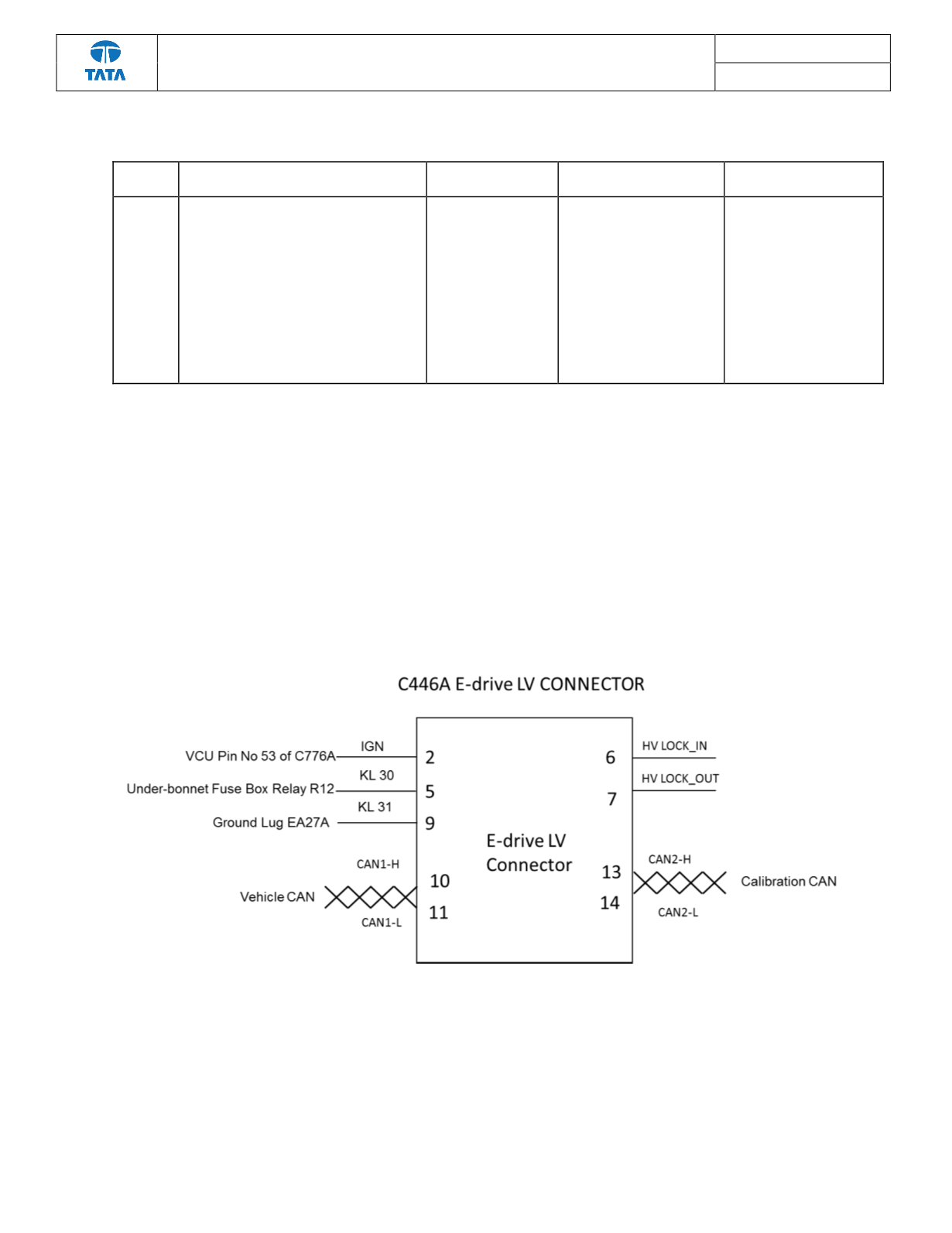

Schematic Block Diagram:-
Refer the LV schematic for more details
