BRAKES

48

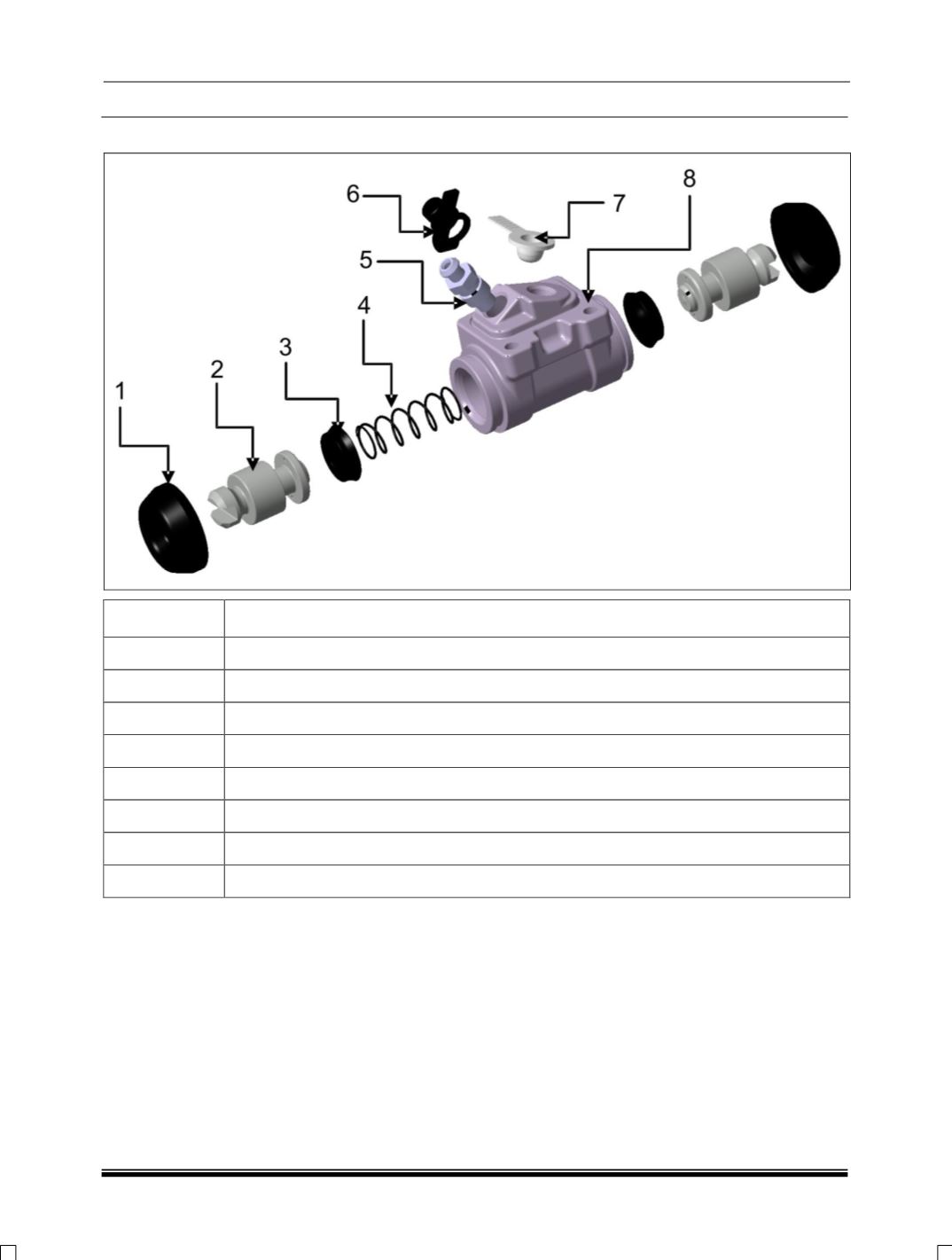

WHEEL CYLINDER EXPLODED VIEW

ITEM NO

DESCRIPTION

01

BOOT/DUST COVER

02

PISTON/PLUNGER

03

L TYPE SEAL

04

SPRING

05

BLEED SCREW

06

BLEED SCREW CAP

07

PROTECTIVE PLUG

08

WHEEL CYLINDER BODY
