DRIVESHAFT
8

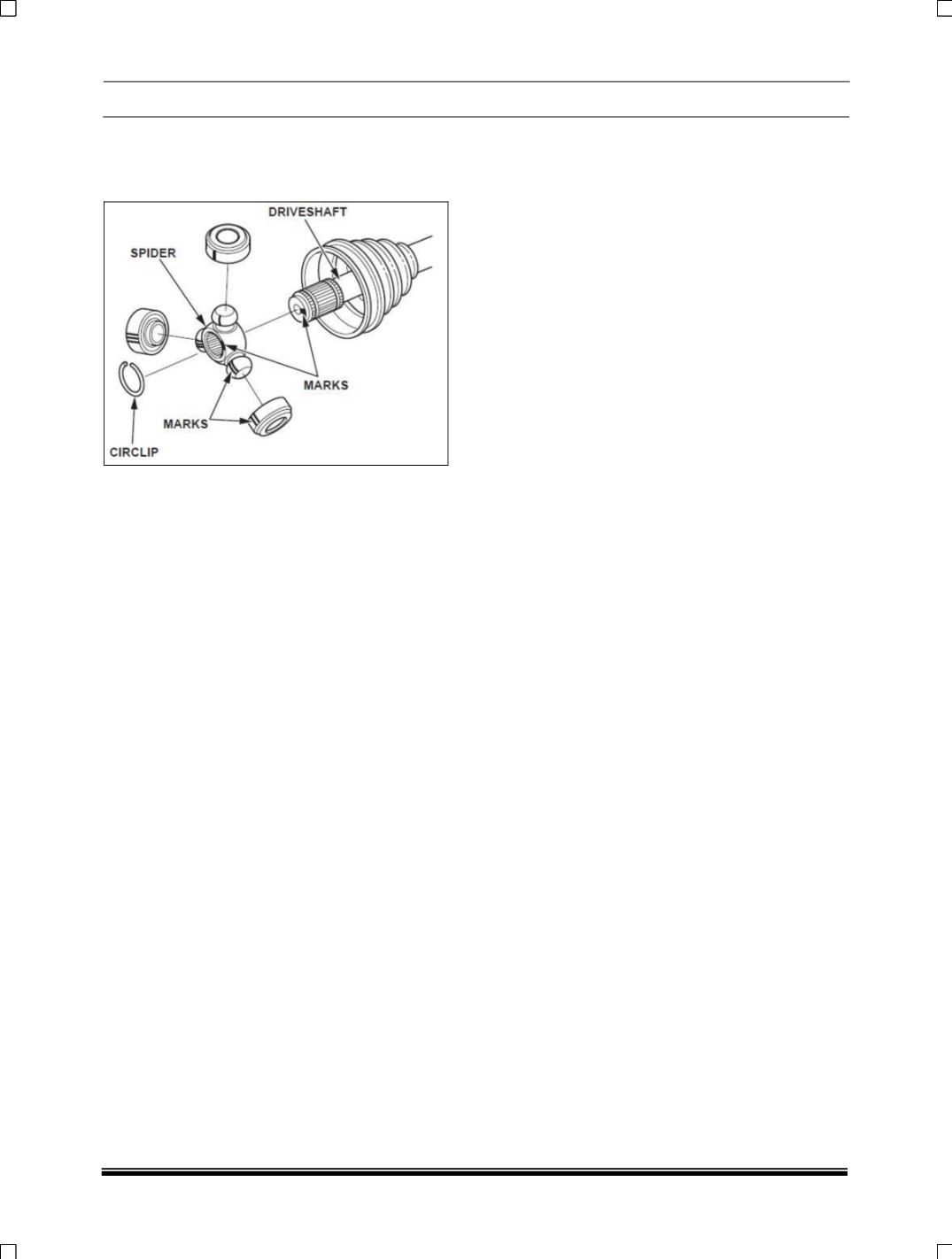

6. Remove the tripot spider assembly from the
axle shaft as showing below figure. If required
tab the spider assembly gently using a nylon
mallet.
7. Clean the following items thoroughly with
cleaning solvent. Remove all traces of old
grease and any contaminates.
A. Tripot balls
B. Needle rollers
C. Housing
8. Dry all the parts. Inspect these parts for
damage or wear. (If any of the parts are
damaged, the entire sub- assembly along with
the outer housing needs to be replaced.)
9. After this remove the rubber boot from the
axle shaft.
