18 INSTRUMENT CLUSTER
FEATURES
• "The purpose of this section is to elaborate Instrument cluster features applicable for Nexon EV. The
instrument cluster consists of telltales, speedometer, drive mode indicator, charge graph and driver
information system among other information."

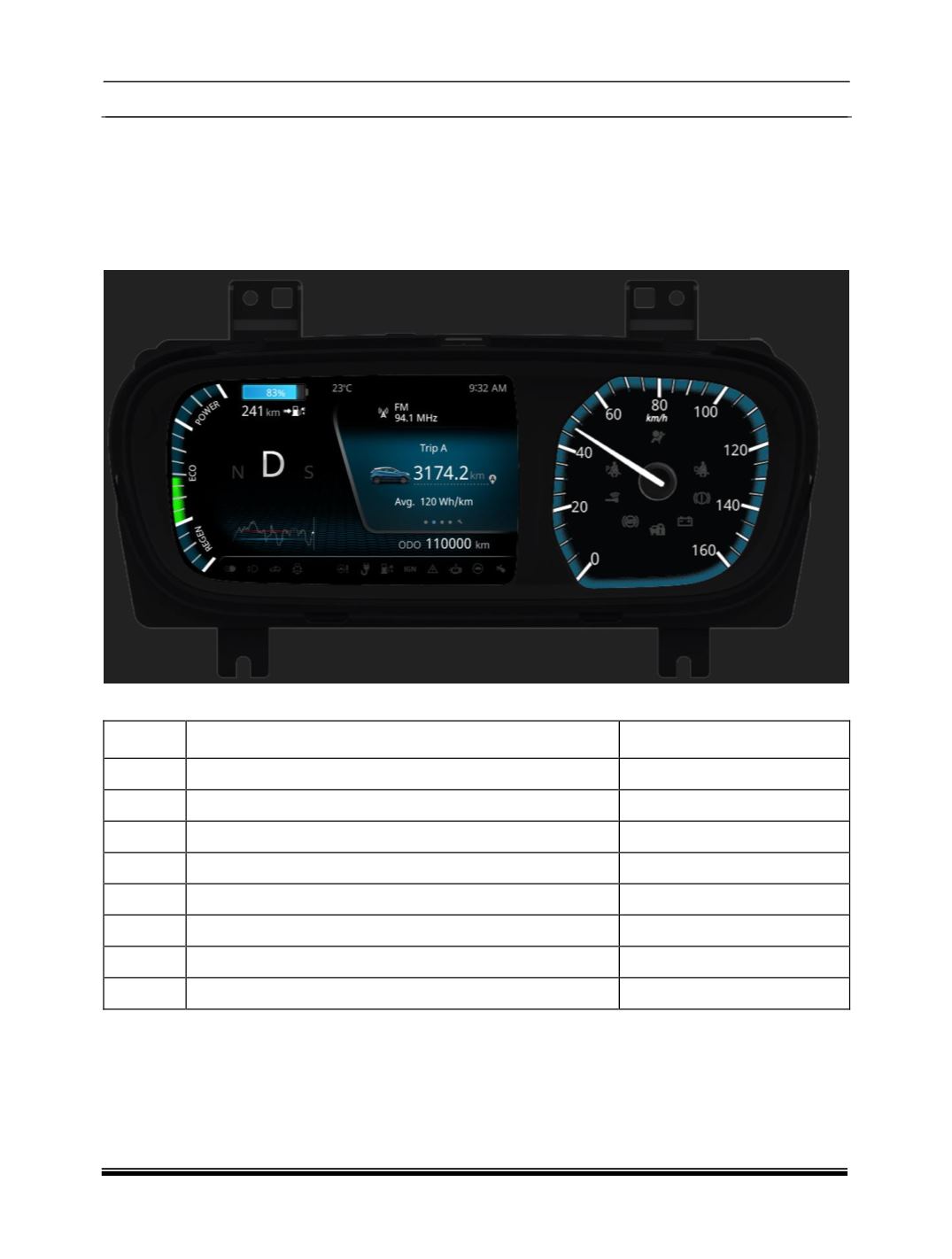

Instrument Cluster 7” (TFT)
BASIC ELECTRICAL SPECIFICATIONS
. PARAMETERS SPECIFICATIONS
1 Nominal Voltage 13.5 V DC
2 Operating Voltage range 8 to 16 V DC
3 Test voltage 13.5 V DC
4 Boot-up time < 0.5 secs.
5 Operating Current 2 Amps. Max. @ all loads ON
6 Sleep mode (Ignition off) current < 1mA
7 Operating Temperature - 30°C to + 85°C
8 Storage Temperature -40°C to +85°C
