LV ELECTRICAL SYSTEM
75

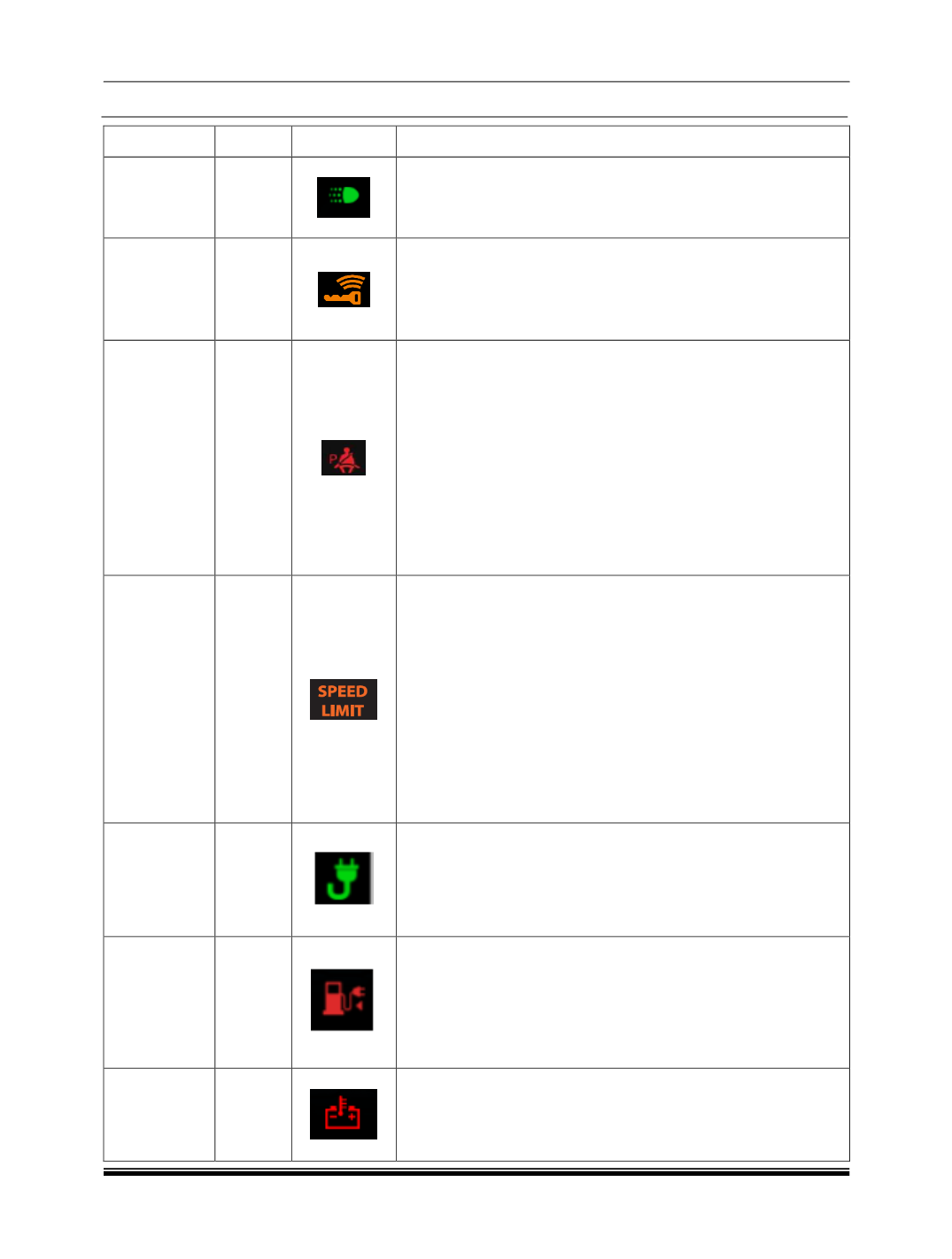

TELL TALES COLOR INDICATOR
REMARKS
DRL
indication
Green
This symbol lights up when the ‘IGN’ is turned ‘ON’ and shall go
‘OFF’ after 4 seconds.
This symbol comes ON when the Day Time Running lamp is
‘ON’.
Key
Not
Detected
(Used
in
PEPS
Vehicles)
Amber
This symbol lights up when the Valid UID (User Identification
Device) is not detected inside the vehicle.
Co-Driver
Seat
belt
Indicator
Red
Seat belt warning indicator comes ‘ON’ for 4 seconds, when
ignition is turned ‘ON’ irrespective of seat belt buckle status.
If Co-Driver is present & its seat belt is not fastened then
Telltale will be ON as initial warning with No audio chime. If
seat belt remains unbuckled and vehicle speed goes above 15
kmph, Final Warning will start with audio chime for 90 seconds
continuously.
Note:
•
Once the seat belt is fastened, the buzzer and warning
indicator will go ‘OFF’.
•
Seat belt audio alarm remains OFF when reverse gear is
engaged.
Speed Limit
Lamp
Amber
When Vehicle Speed cross 80 Km/hr then Speed Limit Warning
Indicator will turn ON along with one time Chime per 2 Minute
(Audible Warning).
If Vehicle Speed crosses 120 Km/hr then along with Speed
Limit Warning Indicator, Chime will start continuously ON till
vehicle speed is above 120 Km/hr.
Once Vehicle Speed is reduced below 120 Km/hr but above 80
Km/hr, then Continuous Chime will stop but Speed Limit
Warning Indicator will remains ON continuously with one time
Chime per 2 Minute (Audible Warning).
When Vehicle Speed is reduce below 80 Km/hr, then Speed
Limit Warning Indicator along with Chime ( if it On ) will gets
turns OFF.
Charging
Indicator
Green
This feature provides HV (High voltage) battery charging status
to user. A bulb check shall be performed for this TT at every
IGN ON for 4 seconds. The TT shall remain ON irrespective of
the Input state during these 4 seconds. This tell-tale shall be
controlled turned ON/OFF by receiving the charging input
signal. This Telltale is ON during charging.
Zero Charge/
Low Charge
Red
This feature provides the HV battery Low/Zero Charge Status
to the user. A bulb check shall be performed for this TT at every
IGN ON for 4 seconds. The TT shall remain ON irrespective of
the Input state during these 4 seconds. This tell-tale shall be
controlled turned ON/OFF by receiving the SoC input when the
SoC level is low TT will turn ON to indicate charging system
battery low to the user.
Battery High
Temperature
Telltale
Red
This feature provides HV battery high temperature status to
user. A bulb check shall be performed for this TT at every IGN
ON for 4 seconds. The TT shall remain ON irrespective of the
Input state during these 4 seconds. This tell-tale shall be
controlled turned ON/OFF by receiving the input HV battery
