LV ELECTRICAL SYSTEM
55

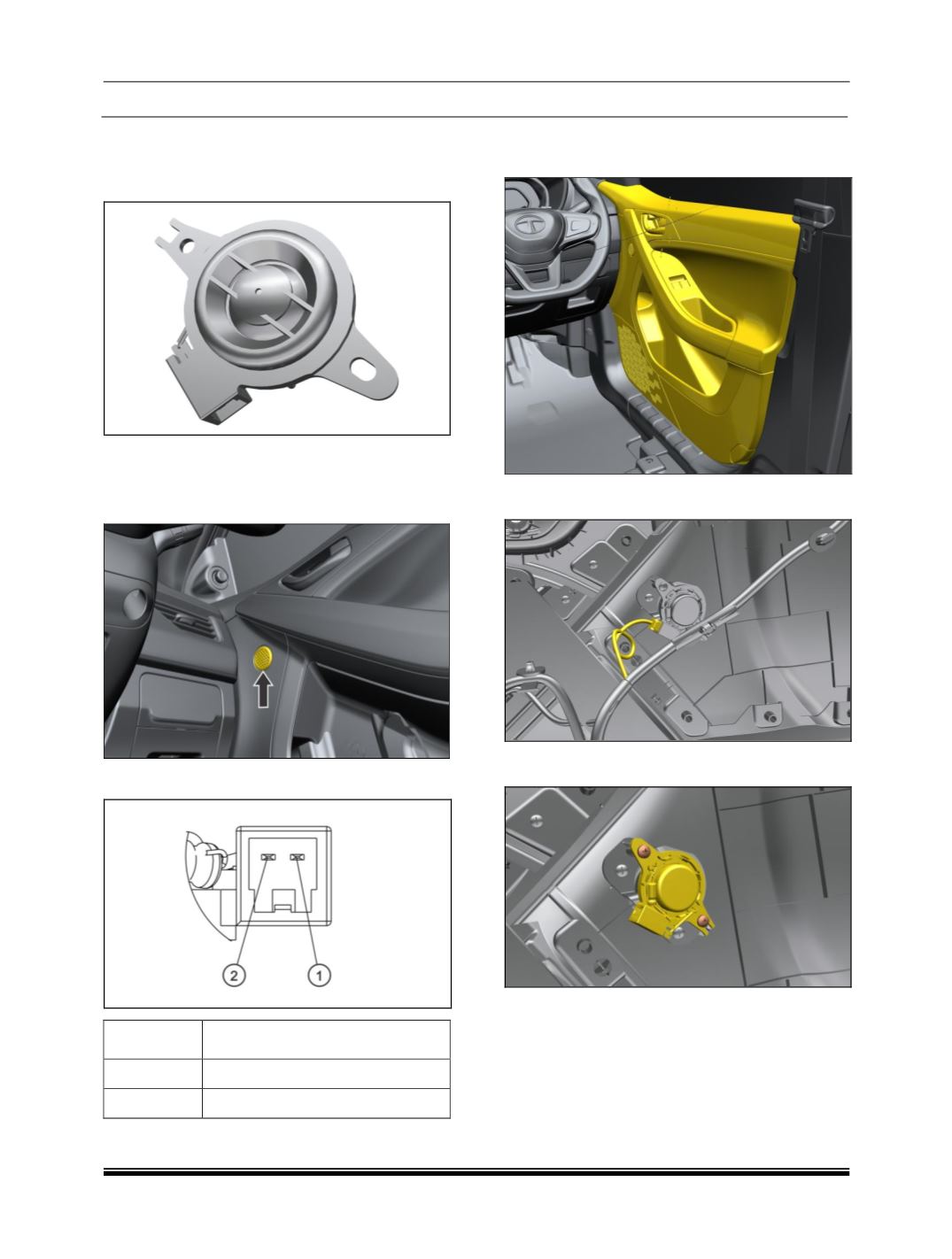

11.5 TWEETERS
Tweeter is a loudspeaker designed to produce
high frequencies.
LOCATION
There are total four tweeters. Each is fitted inside the
front door and rear door.
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
+ve
REMOVAL
1. Remove the door trim (
refer Body section
).
2. Disconnect the electrical connection to the
tweeter.
3. Remove the mounting screws and take out the
tweeter.
REFITMENT
Follow the removal procedure in reverse.
NOTE:
Same procedure is applicable for other door
tweeters. Front and rear door tweeters should not
be interchanged.
