140 / 801
LV ELECTRICAL SYSTEM
54

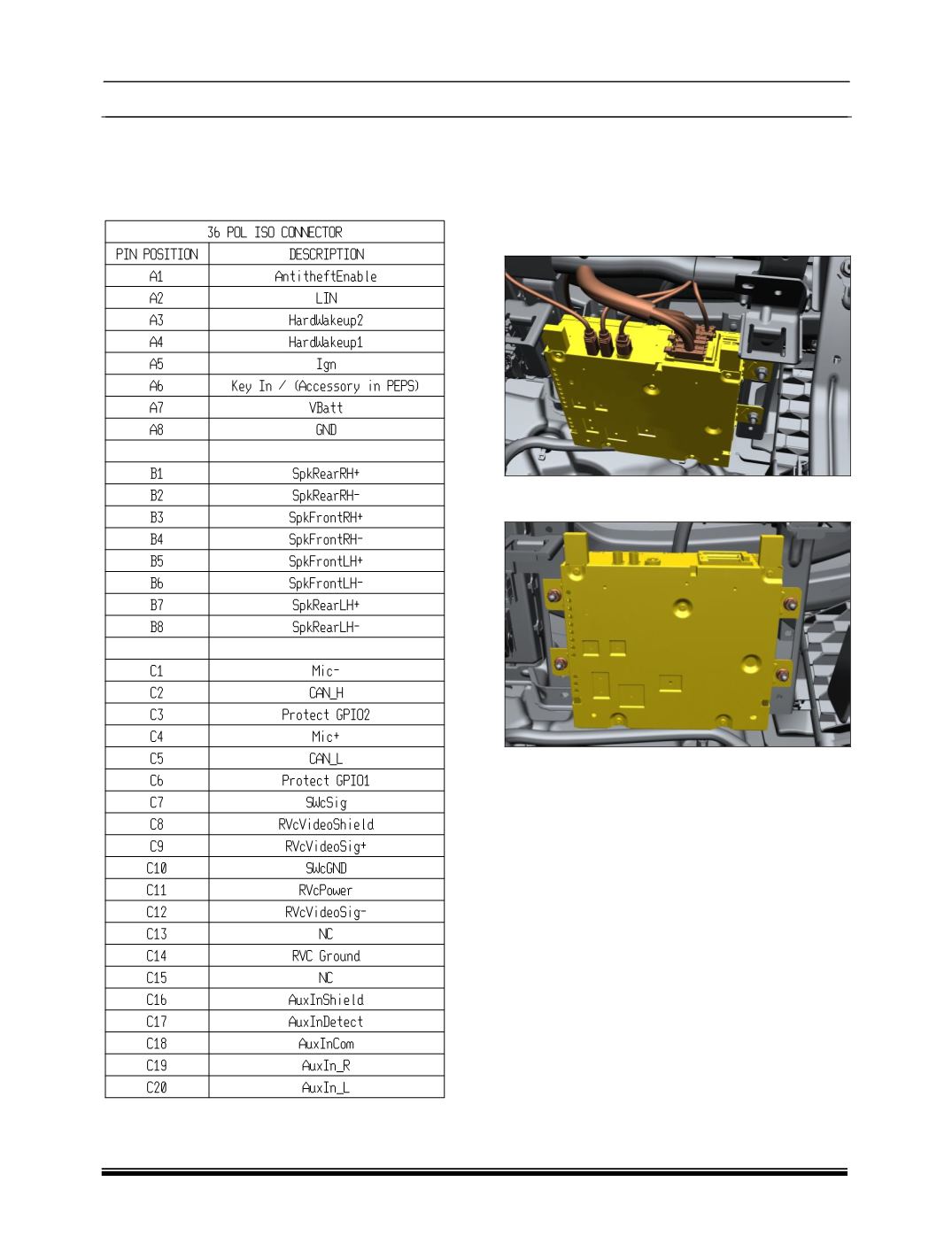

B. 36 POL ISO CONECTOR (XZ-HIGH
VERSION)
NOTE:
Some features may not applicable for
NEXON EV mention in pin details).
C. REMOVAL
1. Disconnect –VE terminal of Battery.
2. Remove glove box.
(Refer Body Section for
removal procedure)
.
3. Disconnect all the electrical connection to the
silver box.
4. Remove the mounting fasteners and take out
the unit.
