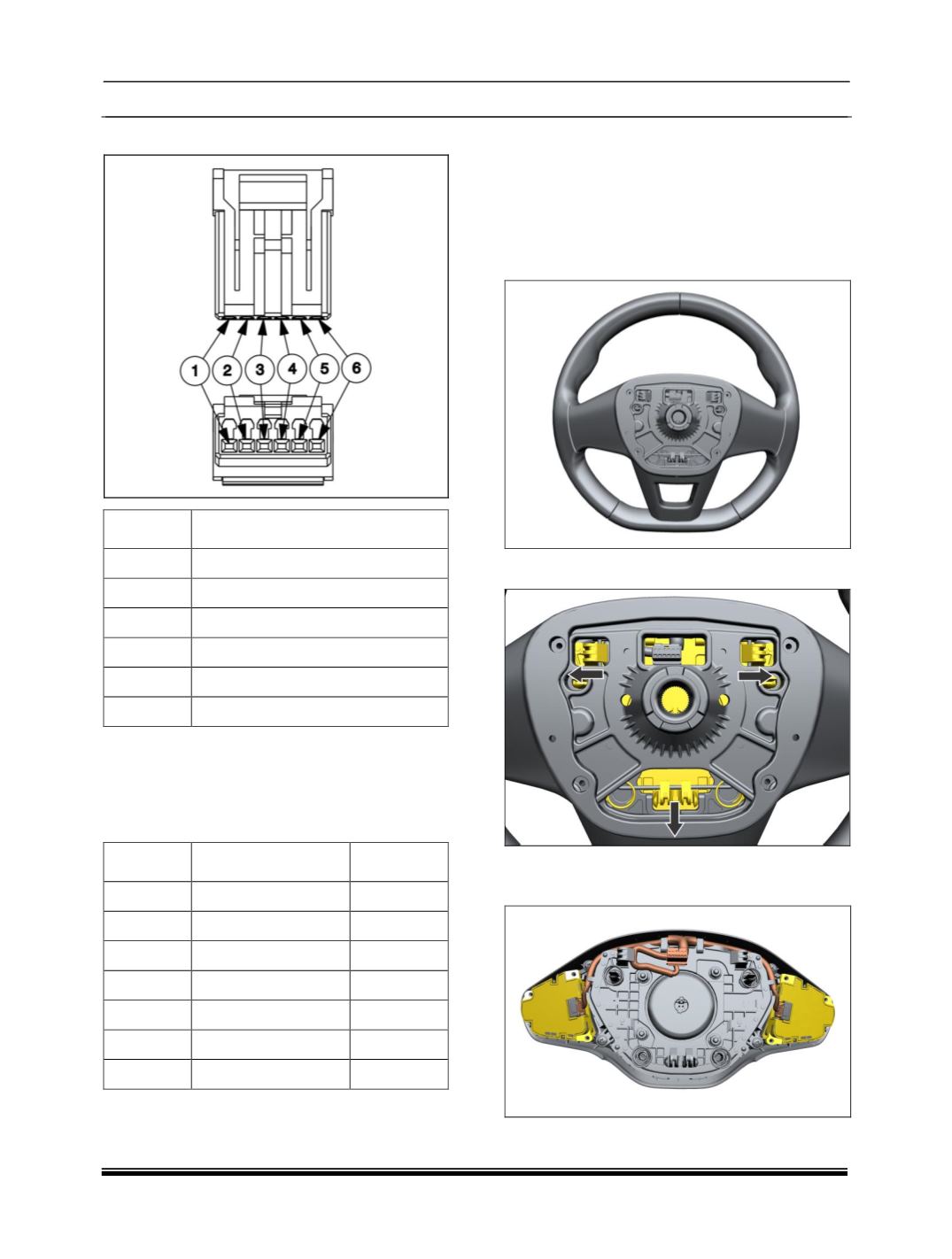

Switch main connector
PIN
DETAIL
1
ILL +
2
ILL -
3
CRUISE -
4
CRUISE +
5
INFOTAINMENT -
6
INFOTAINMENT +
FUNCTION
Steering wheel switches are used to control the
music system operations.
For details ref below table
SWITCH
FUNCTION
POSITION
SW1
Seek Down
LH
SW2
Source
LH
SW3
Seek up
LH
SW4
Phone Reject / Mute
LH
SW5
Volume Up
LH
SW6
Volume Down
LH
SW7
Phone Accept / PTT
RH
LOCATION
It is located on the steering wheel.
REMOVAL
1. Remove steering wheel. Refer “Removal &
Refitment of steering wheel" from Steering
Section
2. Release snaps onsteering wheel Assembly.
3. Separate Garnish switch Assembly and remove
electrical connections.
