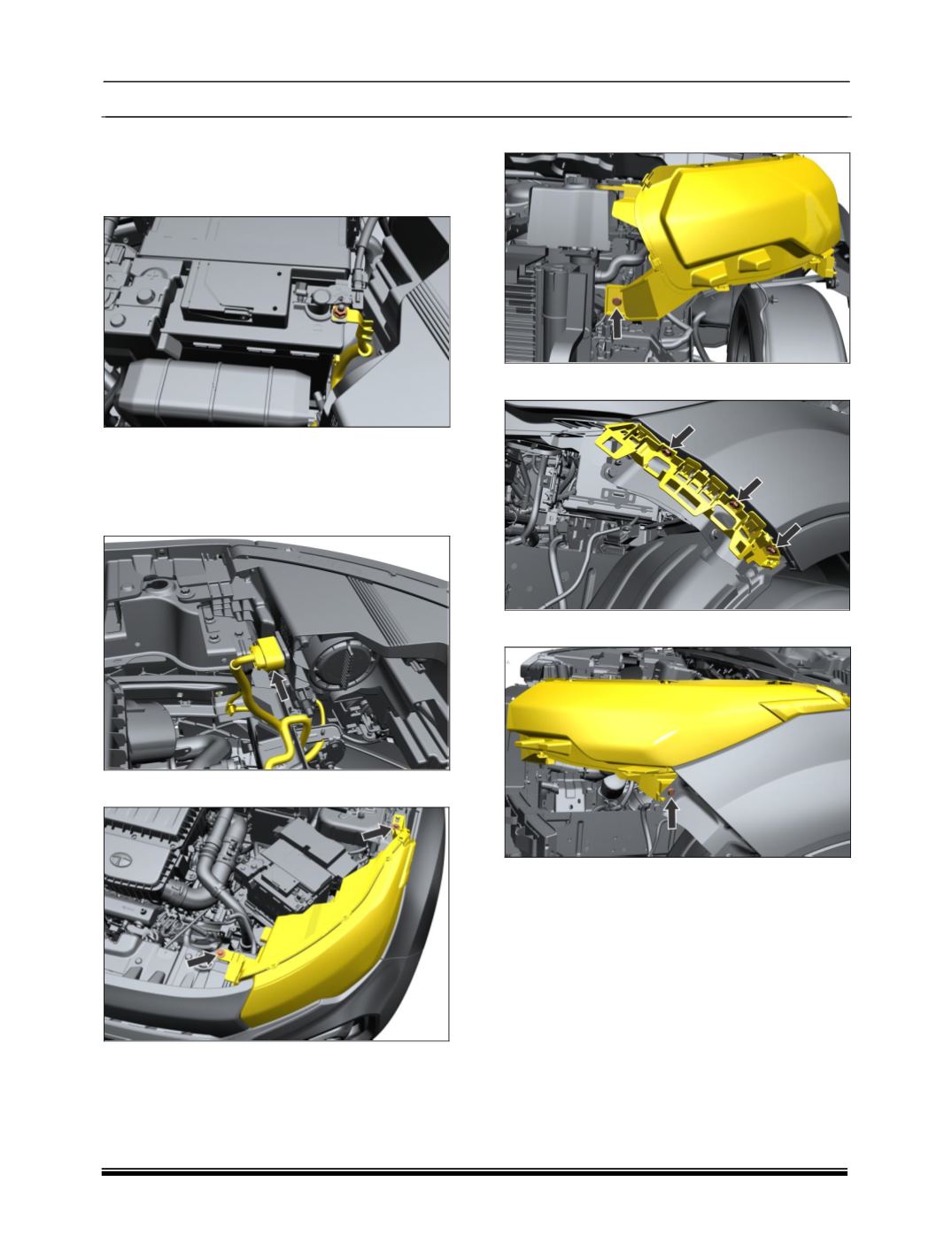

REMOVAL AND REFITMENT OF HEAD LAMP

REMOVAL

1. Remove battery’s negative terminal.

2. Remove front bumper. Refer "Removal & Re-

fitment of Front bumper" from Body Section.

3. Open engine hood.

4. Disconnect head lamp connector.

5. Loosen head lamp two top mounting fasteners.

6. Loosen headlamp "Inner Mounting".

7. Remove Front bumper side mounting bracket.

8. Remove Head Lamp Side Mounting.

9. Hold head lamp properly and remove it.

REFITMENT

1. Position head lamp to its proper place.

2. Refit head lamp with fasteners. (four No.)

3. Refit Front bumper side mounting bracket.

4. Connect head lamp connection.

5. Refit front bumper.

6. Connect battery –Ve terminal.
