849 / 1006
ELECTRICAL
23

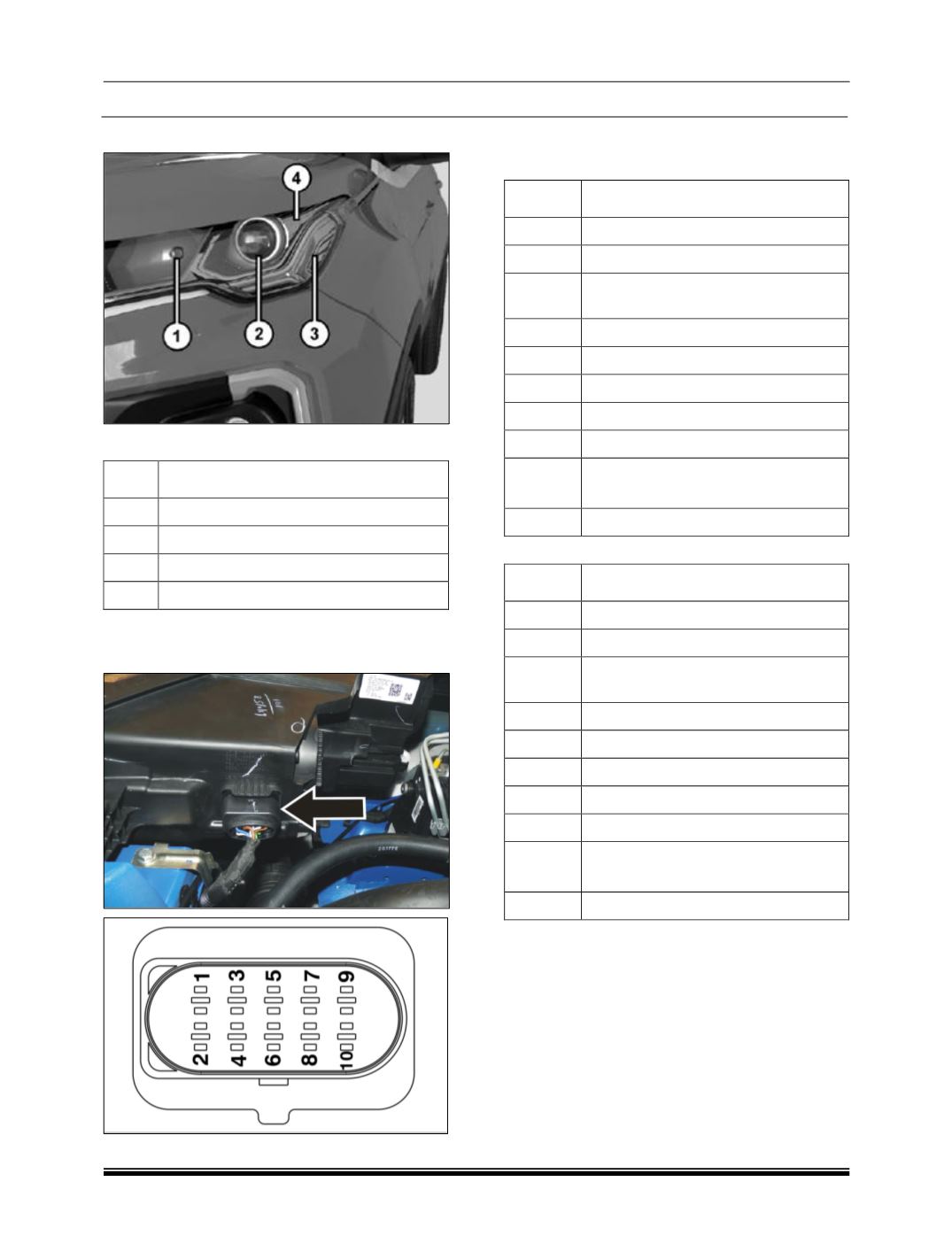

7.4 HEAD LAMP
Head lamp consists of the following bulbs:
NO.
DESCRIPTION
1
High beam lamp
2
Low beam lamp
3
Parking lamp / DRL
4
Turn indicator Lamp
PINOUT DETAILS
Head lamp connector
i. Low version
PIN
DESCRIPTION
1
Low Beam +VE
2
High Beam +VE
3
Ground (Low Beam + High Beam +
Internal VAC)
4
Internal VAC +VE
5
Internal VAC Signal
6
DRL +VE
7
Position +VE
8
Dummy
9
Ground
(DRL / POSITION / FTI))
10
Dummy
ii. For High version
PIN
DESCRIPTION
1
Low Beam +VE (H7)
2
High Beam +VE (H7)
3
Ground (Low Beam + High Beam +
Internal VAC)
4
Internal VAC +VE
5
Internal VAC Signal
6
DRL +VE
7
Position +VE
8
FTI +VE
9
Ground
(DRL / POSITION / FTI))
10
Dummy
