STEERING

16

3. OVERHAULING

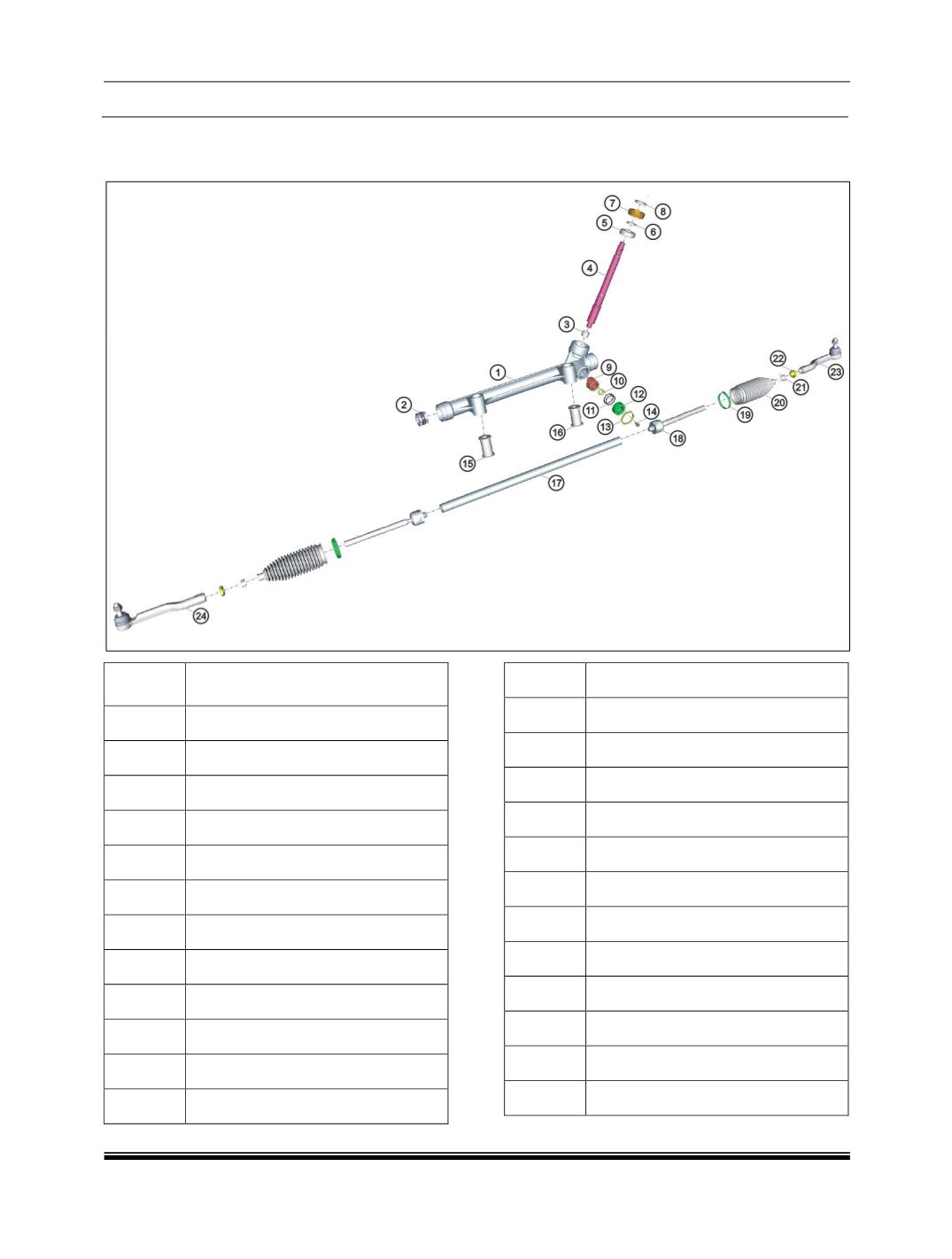

A. OVERHAULING OF STEERING RACK AND PINION ASSEMBLY

DESCRIPTION

1

Case Steering Gear

2

Rack Bush

3

NRB

4

Pinion

5

Bearing

6

Retaining Ring

7

Pinion Cover

8

Oil Seal

9

Yoke

10

Spring

11

O-Ring

12

Yoke Cover

DESCRIPTION

13

YC Lock Nut

14

Audit Plug

15

Slot Bush

16

Round Bush

17

Rack

18

IBJ Assembly

19

Bellow Strap

20

Bellow

21

Bellow Clip

22

Lock Nut

23

OBJ Assembly RH

24

OBJ Assembly LH
