DRIVESHAFT MT
5

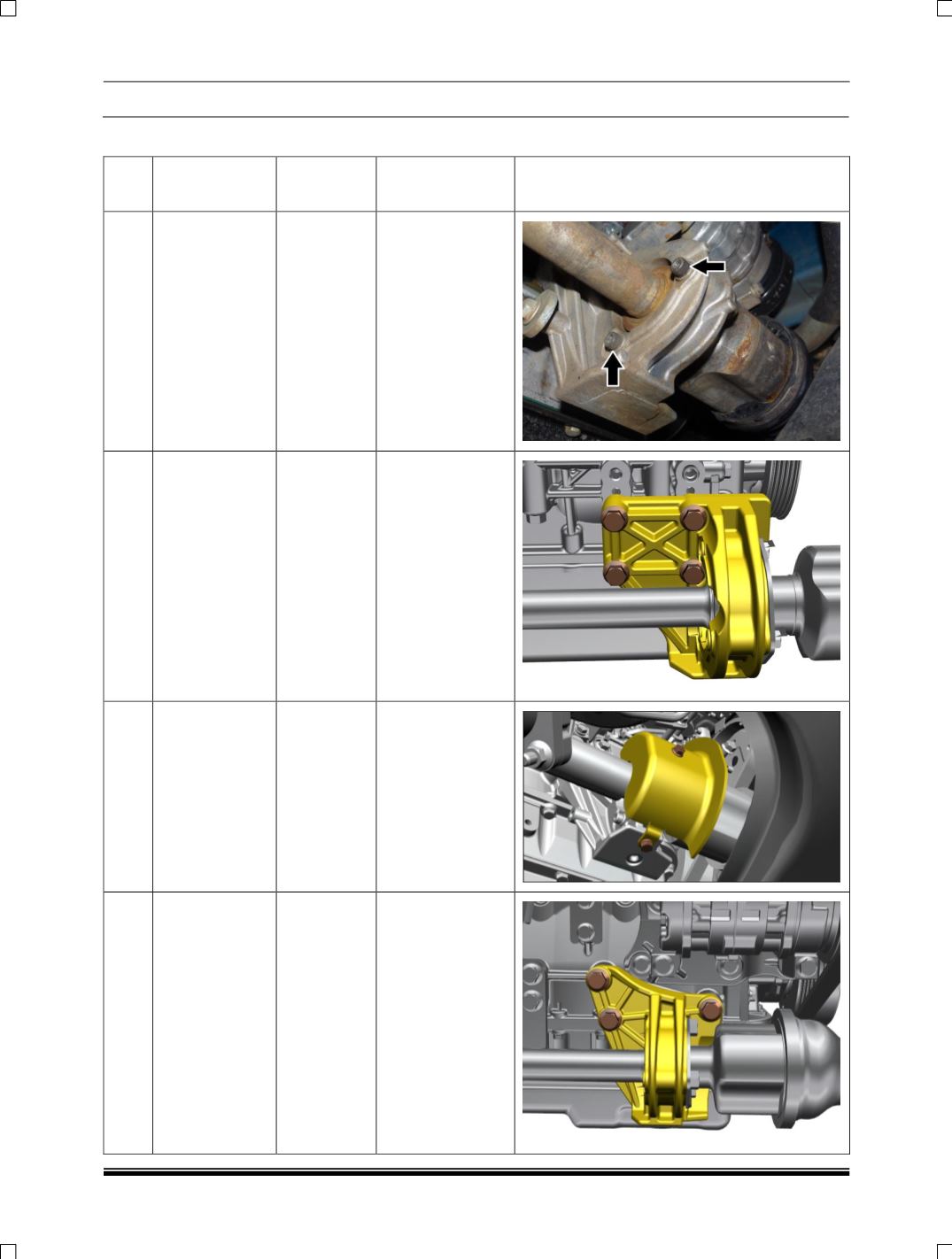

4. TIGHTENING TORQUES
SR
NO.
DESCRPTION FASTNER
TIGHTENING
TORQUE (Kg-M)
LOCATION
1
Intermediate
shaft mounting
on Bracket
Cap Screw
M6X45
1.5 – 1.7
2
Intermediate
shaft Bracket
on Engine
(Petrol)
– 4
No.
Hex FL Bolt
M8X45
2 – 2.5
3
Intermediate
shaft Heat
shield on
Engine
(Diesel)
HEX FL
SCREW
M6X10
1.5 – 1.7
4
Intermediate
shaft Bracket
on Engine
(Diesel)
– 3
No.
Hex FL Bolt
M10X45
3.2 – 3.8
