TRANSAXLE TA6300
19

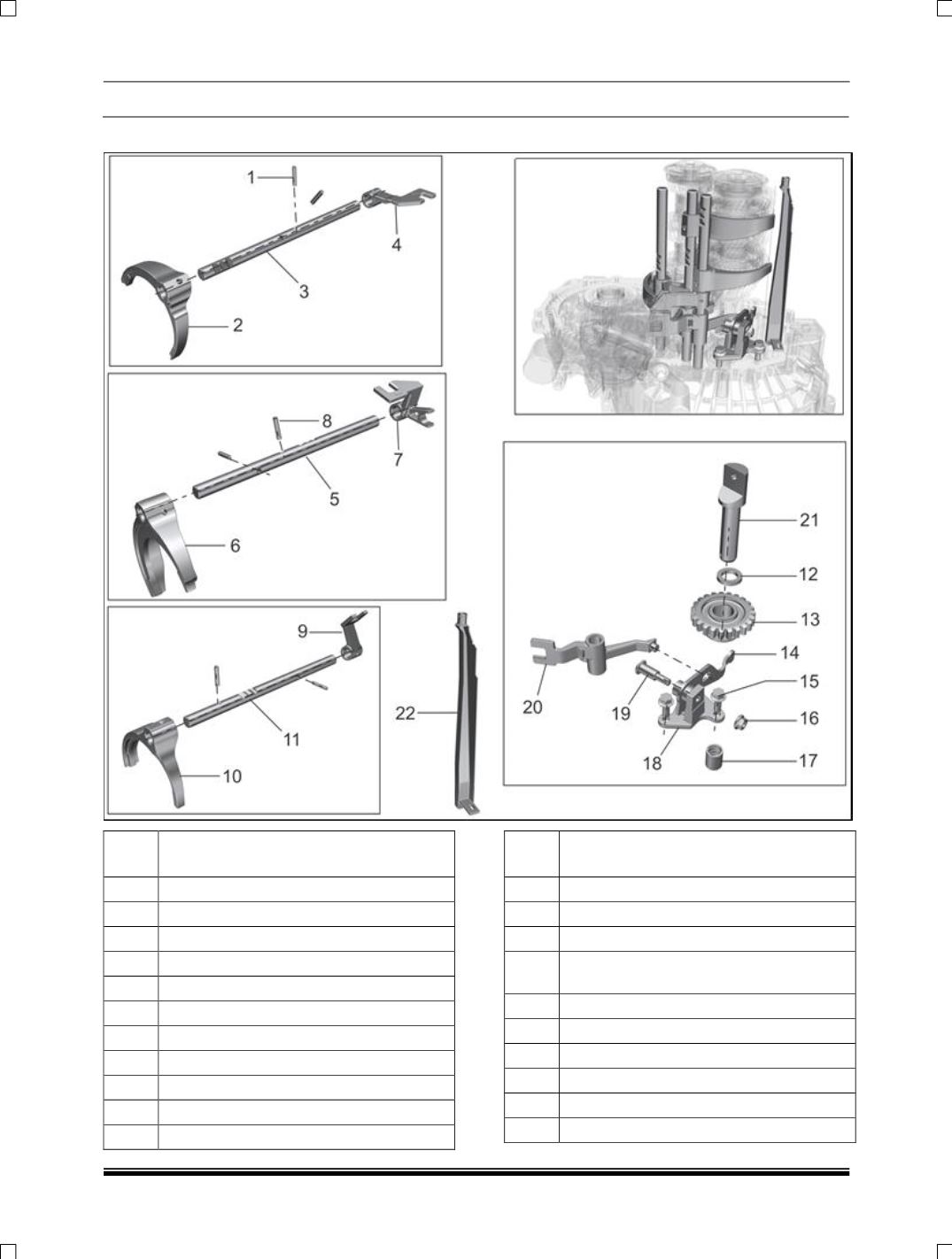

EXPLODED VIEW OF ASSEMBLY SHIFTER SHAFT & REVERSE IDLER SHAFT:
SR.
NO.
DESCRIPTION
1 & 8 ASSY DOWEL SLEEVE
2
SHIFTER FORK(3rd/4th SPEED)
3
SHIFTER SHAFT (3/4 SPEED)
4
SHIFTER DOG (3/4 SPEED)
5
SHIFTER SHAFT (1/2 SPEED)
6
SHIFTER FORK (1/2 SPEED)
7
SHIFTER DOG (1/2 SPEED)
9
SHIFTER DOG (5/6 SPEED)
10
SHIFTER FORK (5/6 SPEED)
11
SHIFTER SHAFT (5/6 SPEED)
12
SPACER(REVERSE IDLER)
SR.
NO.
DESCRIPTION
13
REVERSE IDLER GEAR
14
REVERSE LEVER ASSY.
15
HEX FL SCR M8X22
16
HEX FL NUT AM8 TS17430-8-
SS8451S2-Y
17
BUSH (REVERSE IDLER GEAR)
18
REVERSE LEVER BRACKET
19
PIVOT PIN (REVERSE LEVER)
20
SHIFTER DOG (REV.SPEED)
21
SHAFT (REVERSE IDLER)
22
OIL CHANNEL
