TRANSAXLE TA6300
16

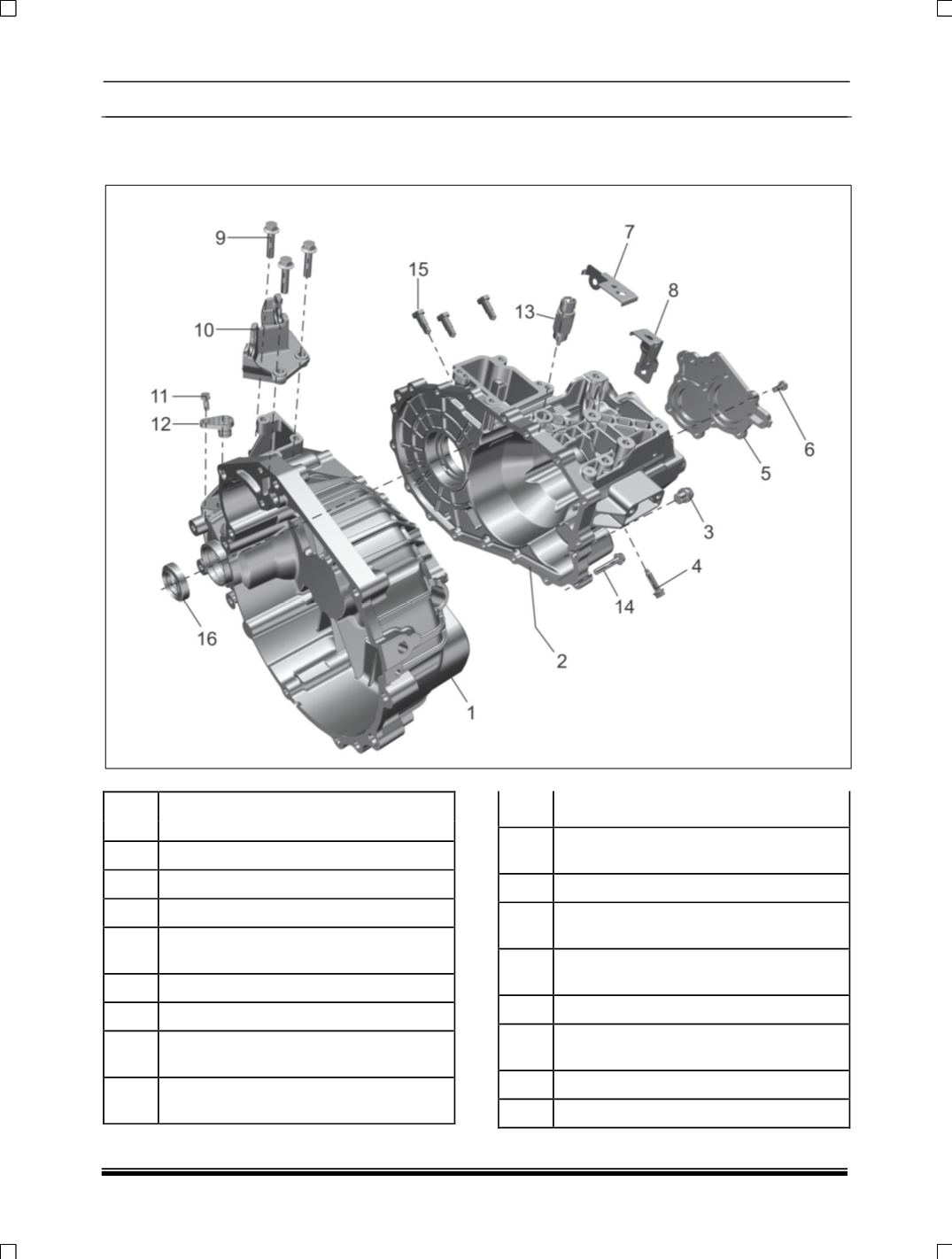

8. EXPLODED VIEW
TRANSAXLE:
SR.
NO.
DESCRIPTION
1
HOUSING ASSY;FRONT-HALF
2
HOUSING ASSY;REAR-HALF
3
MAGNETIC DRAIN PLUG
4
HEX FL BOLT M8X25 TS17130-8.8-
SS8451-8C (REVERSE IDLER SHAFT)
5
COVER REAR HALF
6
SOCKET HEAD CAP SCREW
7
BRACKET;EMS WIRING HARNESS
MTG
8
BRACKET;EMS WIRING HARNESS
MTG
SR.
NO.
DESCRIPTION
9
HEX FL BOLT M8X35 TS17070-8.8-
SS8451S2-Y
10
BRACKET (CABLE ANCHORING)
11
ASSY H/SCR M6X18 Z3TS17070
8.8SS8451S2-Y
12
VEHICLE SPEED SENSOR OR
DUMMY CAP
13
ASSY_REVERSE_LIGHT_SWITCH
14
HEX FL BOLT M8X45 TS17070 8.8
SS8451S2-Y
15
DETENT ASSY (SHIFTER SHAFT)
16
OIL SEAL (DRIVE SHAFT)
