Diagnostic troubleshooting
If the tell-tale is ON in the Instrument Cluster,
please check the following things: -
1. Please check that oil level in dip stick
should be above minimum mark. If yes, go
to step 2 or else top-up the engine oil and
recheck the tell-tale status after engine
restart.
2. Please check if there is any leakage of oil
from oil pressure sensor. If yes, please
tighten the oil pressure switch mounting bolt
with 3 Kgfm.
3. Please check whether the oil pressure
switch connector is not loose.
4. Electrical diagnosis - to be supported from
AED team.
5. If still not solved then please replace with
new switch.

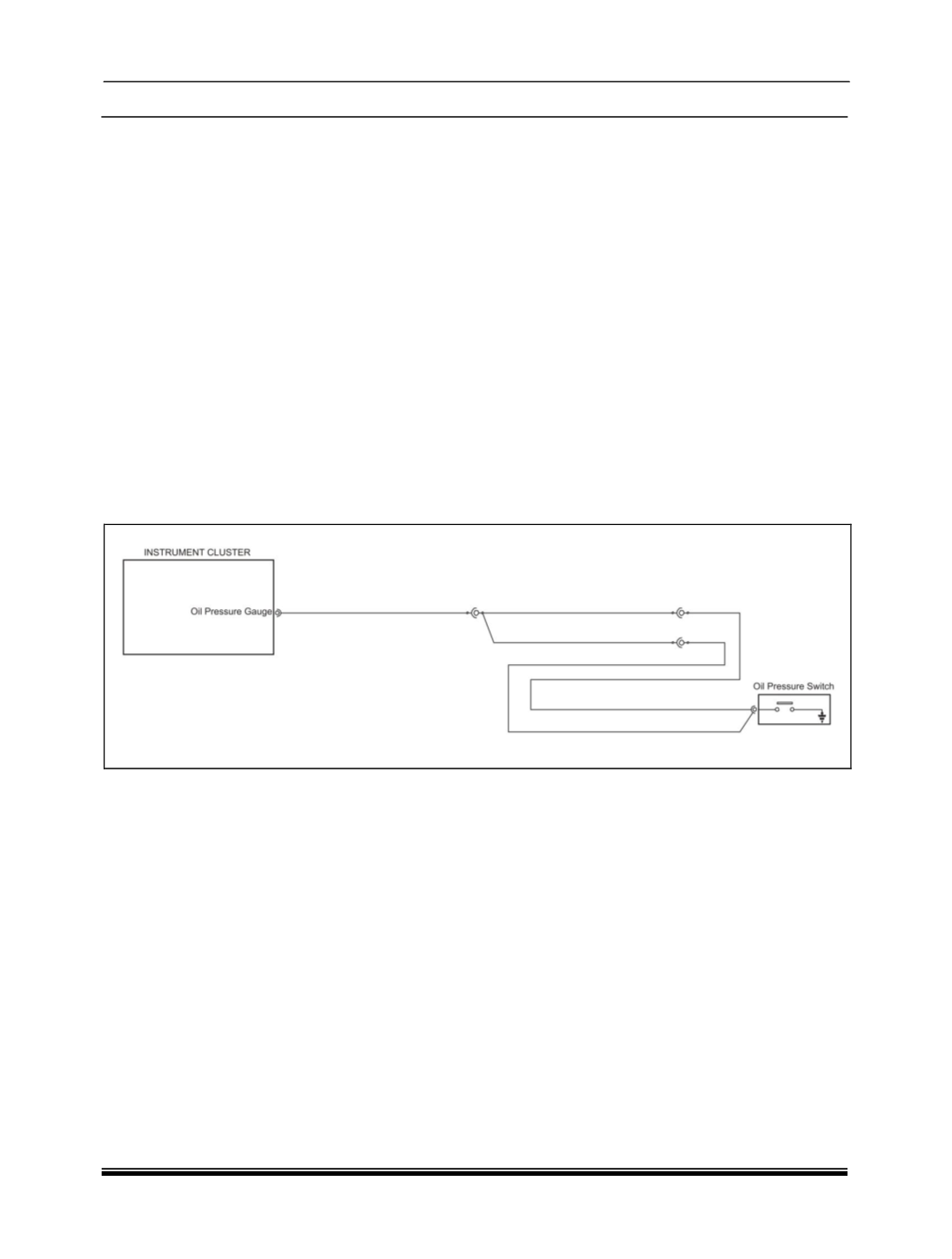

Circuit Schematic Diagram
