1.5L REVOTORQ ENGINE
193
Signal/Output Voltage
The analog output signal is good between 0 and
1V
NOTE
Check the AMF Sensor with no mass flow. The
above given values are for zero mass flow. Every
tiny whiff of air will cause a NTF".

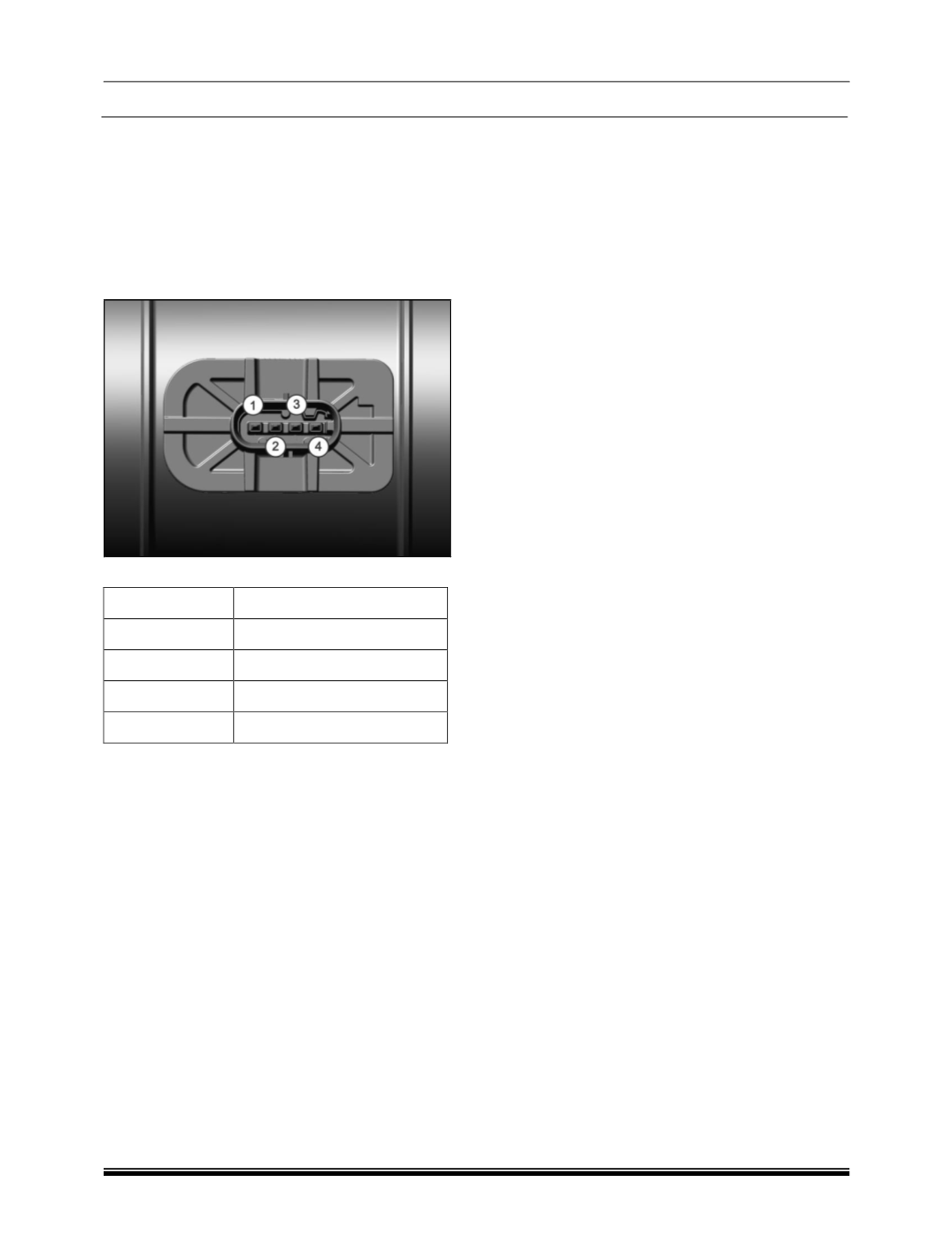

CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Power Supply
2
Power Ground
3
Mass Air-Output
4
NTC
v. VENTURI
It is an integral part of High pressure pump. It has
inlet & outlet connections. One connection comes
from injector back leak circuit & the other
connection goes to the fuel tank (return Line), in
between there is a "T" connector which goes to
the fuel filter.
