1.5L REVOTORQ BS VI ENGINE
129

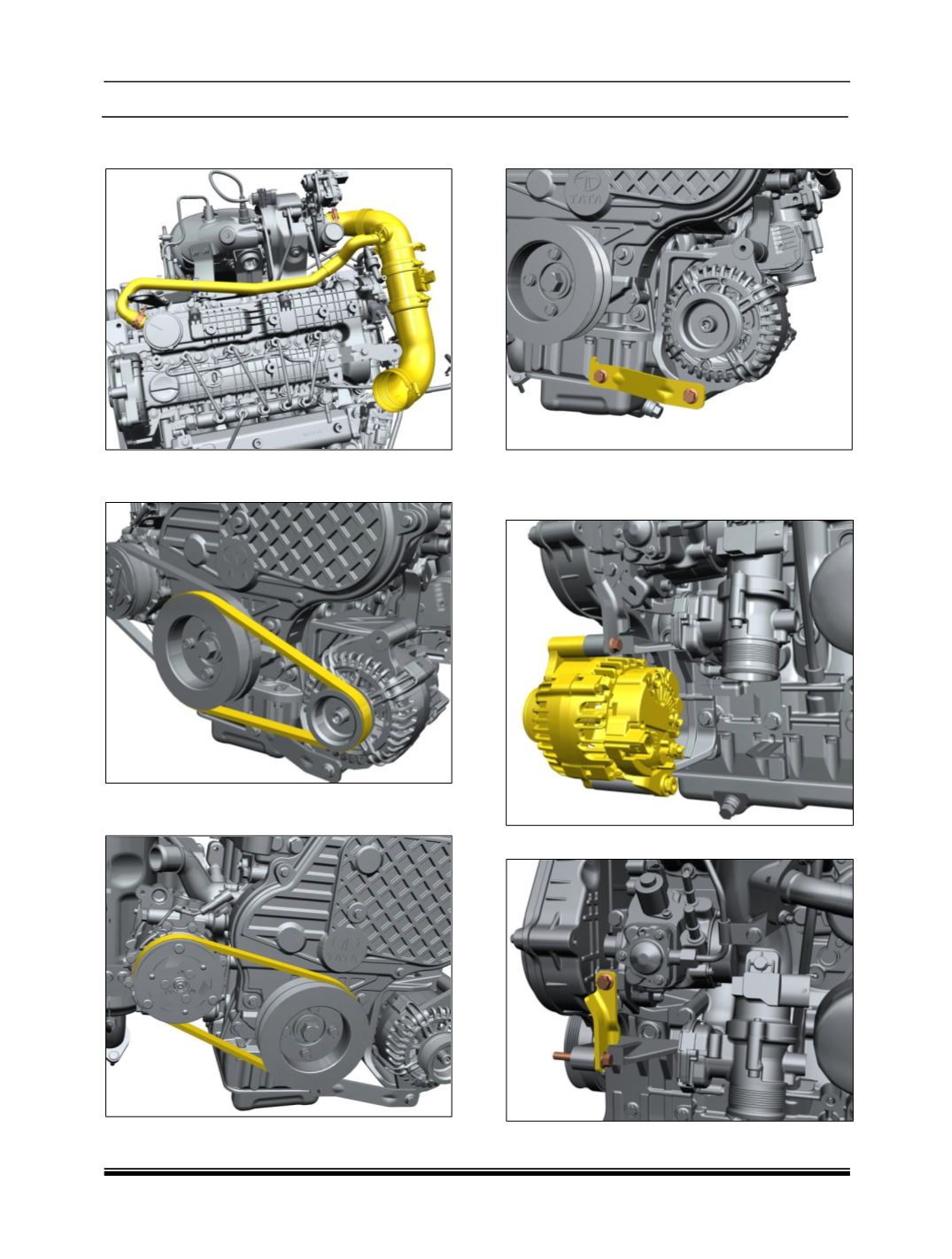

5. Remove oil separator hose and air duct to
turbocharger.
6. Remove the alternator belt from the pulley
using the special tool.
7. Remove the compressor belt from the pulley
using the special tool.
8. Remove alternator support bracket mounting
bolts.
9. Remove the mounting bolt and release the
alternator assembly from the mounting
bracket.
10. Remove the support brackets.
