1.2L REVOTRON ENGINE
135

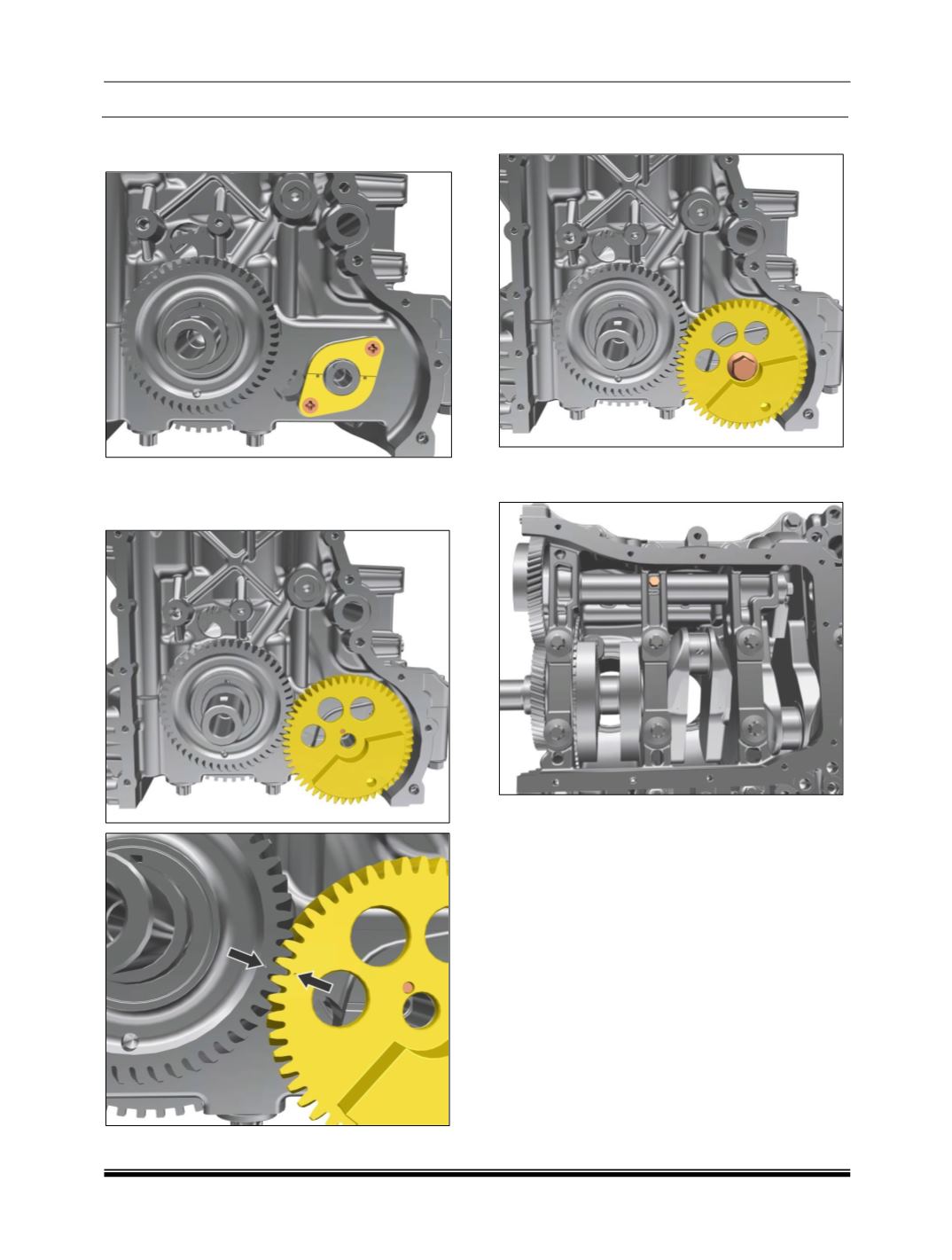

24. Assemble the thrust washer to bed plate and
lock using mounting screws.
25. Insert the locating pin and assemble the
balancer shaft gear matching the punch dots
on the crankshaft gear.
26. Lock the balancer gear using a mounting bolt.
27. Remove the mass balancer locking bolt from
the bed plate.
28. Remove the flywheel locking bolt and check for
two complete free crankshaft rotations.
