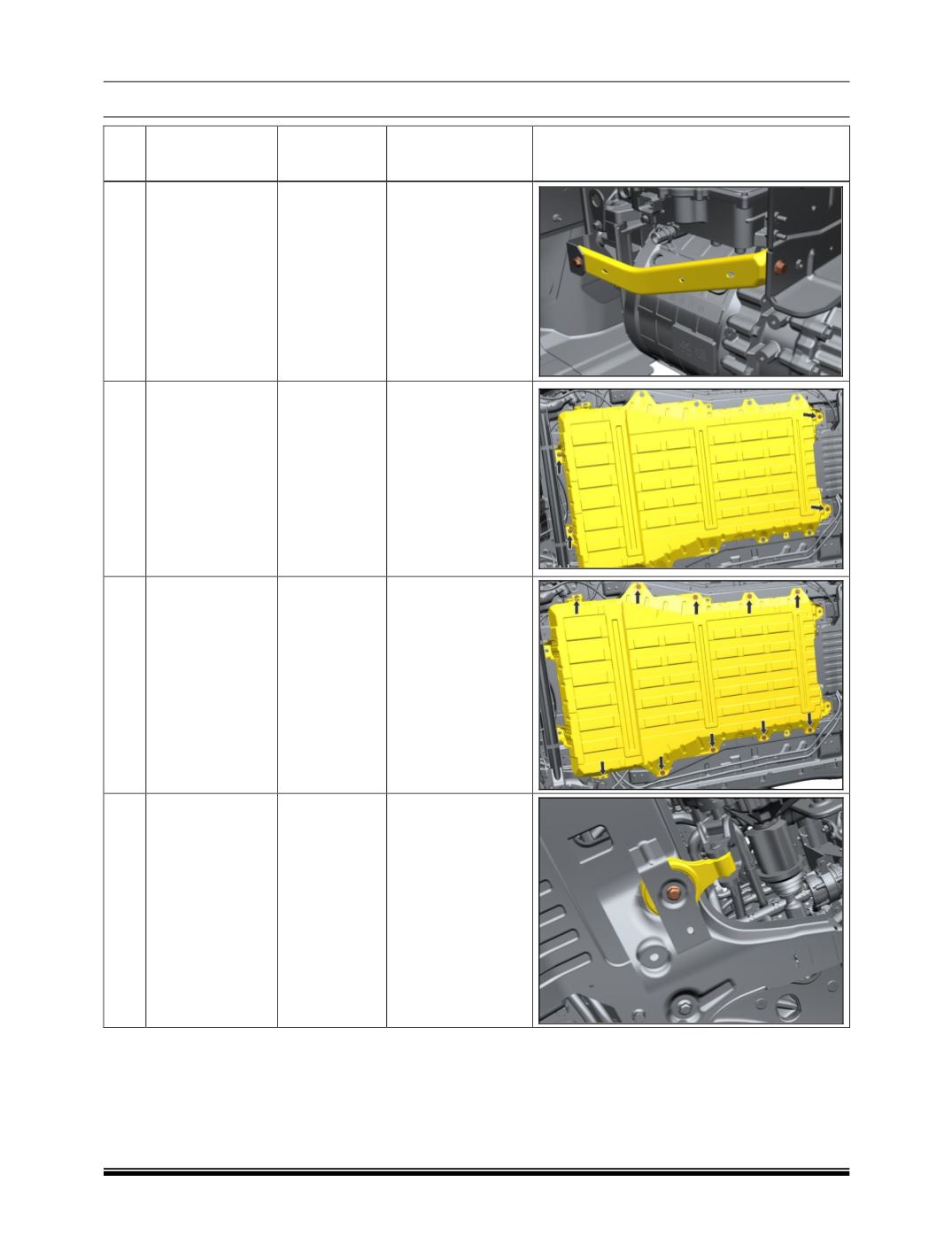

25 / 516
HV ELECTRICAL SYSTEM
17
SR.
NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE (Kg-m)
LOCATION
12
ASSEMBLE
PLATE,
SUPPORT
BRACKET WITH
CRADLE
ASSEMBLY
M8 X 20
1
13
HIGH VOLTAGE
BATTERY ASSY
MTG
M10X1.25X40
4.9
14
HIGH VOLTAGE
BATTERY ASSY
MTG
M10X1.25X55
4.9
15
C-MOUNT ASSY,
E drive
M12 X 1.25 X
105
10.5 - 11
