HV ELECTRICAL SYSTEM
16
SR.
NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE (Kg-m)

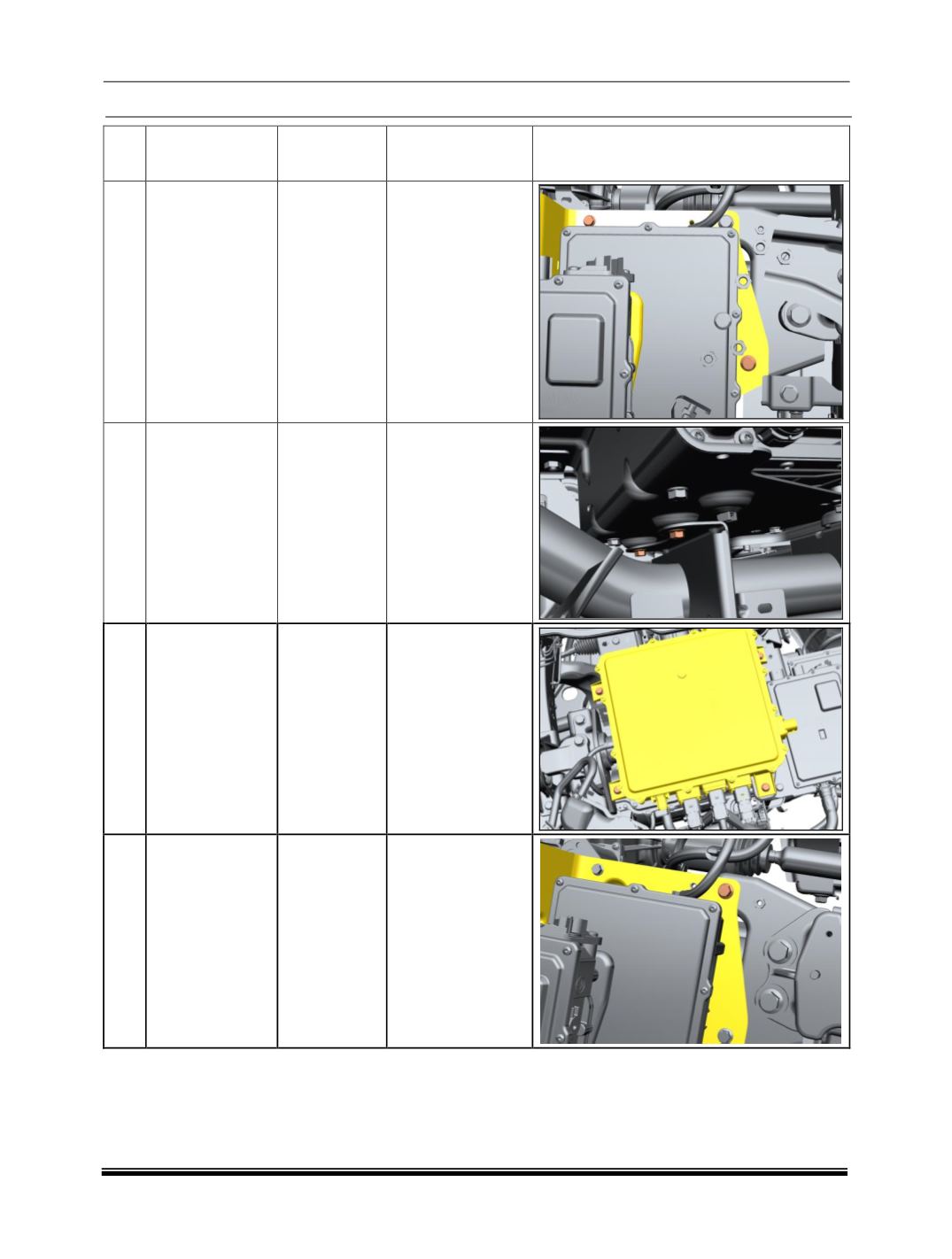

LOCATION
8
BRACKET ASSY
CHARGER +
CONVERTER
MTG
M6 X 12
1
9
BRACKET
CHARGER +
CONVERTER
MTG
M6 X 12
1
10
PDU MOUNTING
SCREW
M8 X 20
2.5
11
BRACKET
CHARGER +
CONVERTER
MTG
M8 X 20
1
