LV ELECTRICAL SYSTEM
24

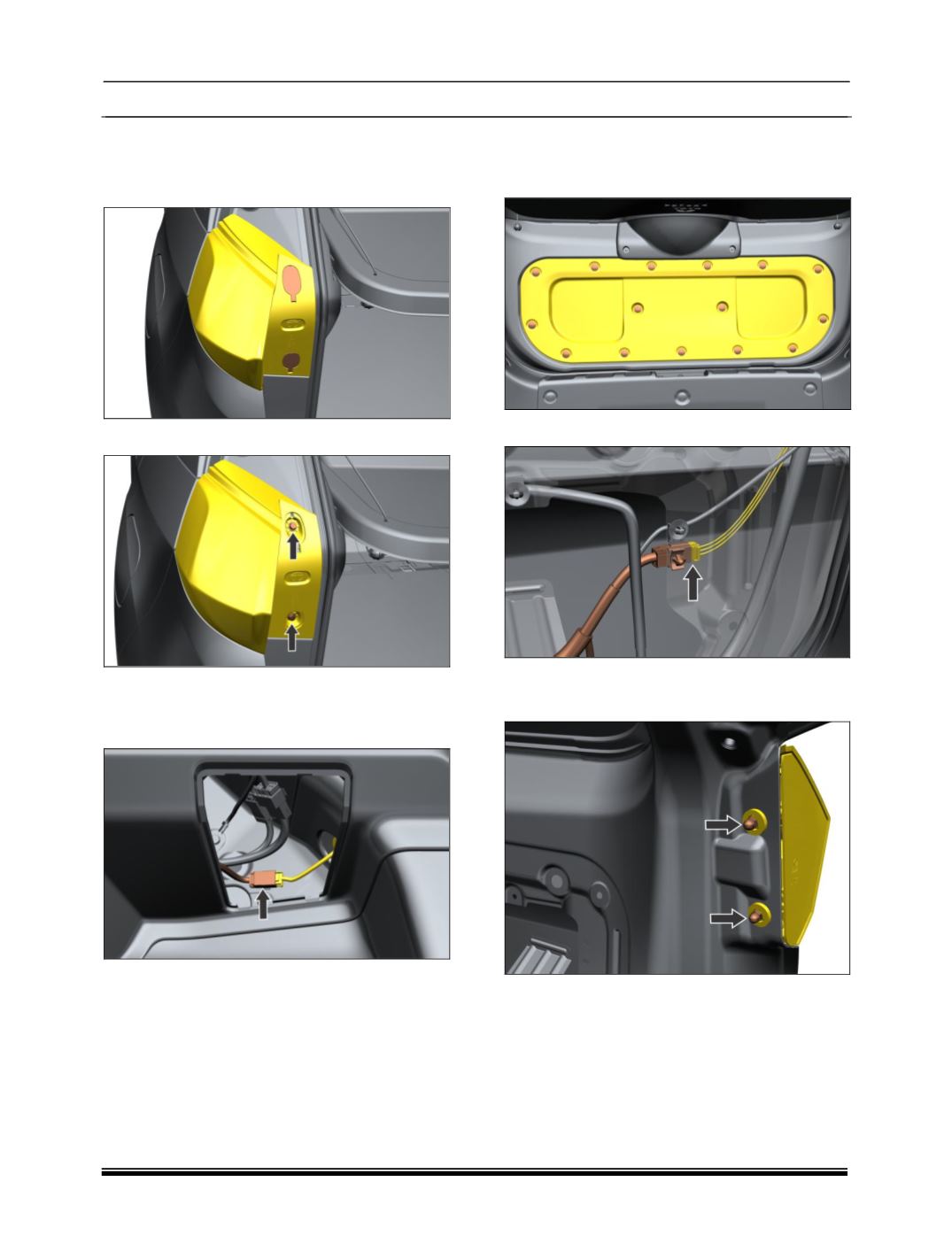

A. TAIL LAMP REMOVAL (BODY SIDE)
1. Open tail gate
2. Open caps on tail lamp mounting bolts.
3. Remove two mounting screws on tail lamp.
4. Remove Access cover to make electrical
connection accessible.
5. Disconnect the electrical connections.
6. Take out Body mounted Tail Lamp.
REFITMENT:
Follow the reverse Procedure of Removal.
B. TAIL LAMP REMOVAL (TAIL GATE SIDE)
1. Remove Tailgate Trim to access electrical
connection.
2. Disconnect Electrical Connection.
3. Open tail gate
4. Remove two nuts on tail gate
5. Take out side mounted Tail lamp.
REFITMENT:
Follow the reverse Procedure of Removal.
