LV ELECTRICAL SYSTEM
23

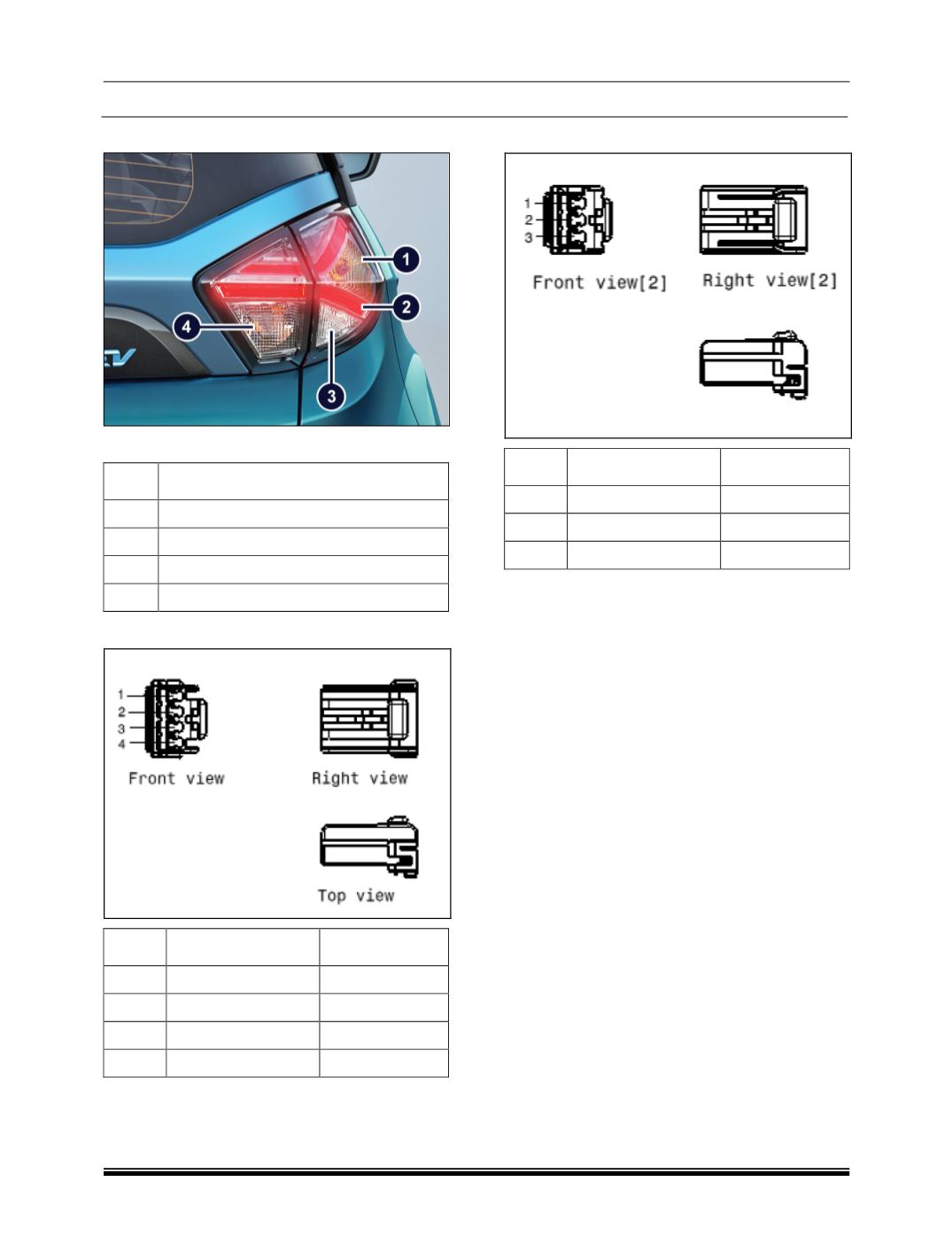

3.8 TAIL LAMP
Tail lamp consists of the following bulbs:
NO.
DESCRIPTION
1
Turn indicators
2
LED Parking / Position lamp
3
Stop lamp
4
Reverse lamp
BSO SIDE TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Turn
Orange
2
Stop
Red
3
Tail/Position
Green
4
Ground
Grey
TRUNK TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Tail/Position
Green
2
Reverse
Yellow
3
Ground
Grey
