BODY
21

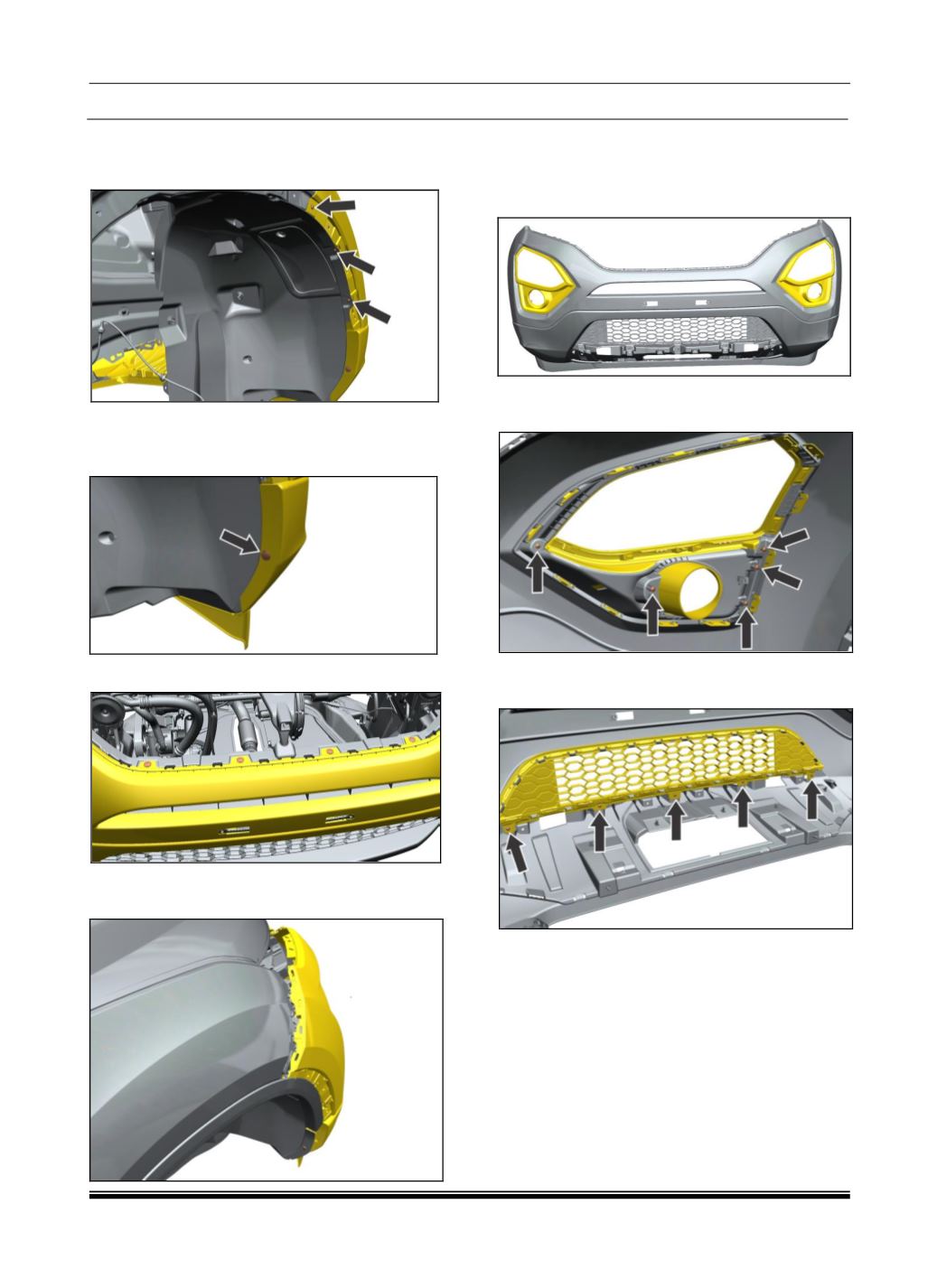

9. Loosen and remove mounting screws from
wheel arch. Follow the same procedure at the
other end also.
10. Remove clip push button of from the inner
side of wheel arch. Follow the same
procedure at the other end also.
11. Remove the mounting clip
12. Pull out the front bumper from wheel arch
end.
13. Disconnect fog lamp connectors and remove
the bumper.
14. After removal front bumper skin remove bezel
lamp.
15. Remove the mounting screw behind bezel
lamp and pull out it .
16. Remove the mounting screw of grill,front
bumper,bottom.
FITMENT
For fitment follow the reverse procedure of
removal.
