BRAKES

20

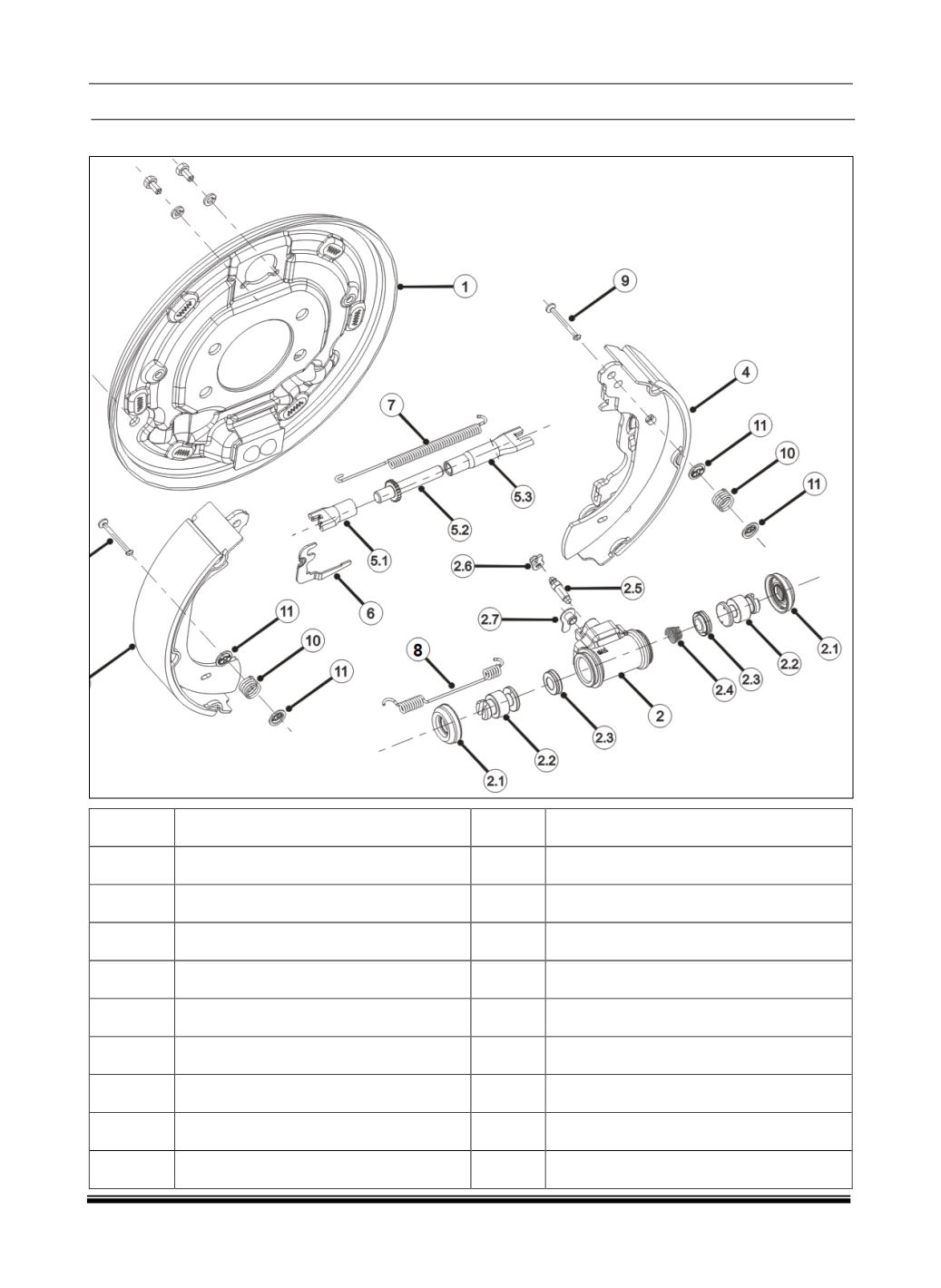

12.REAR DRUM BRAKES:

DESCRIPTION

DESCRIPTION

1

BACKPLATE COMPLETE LH AND RH

4

TRAILING SHOE WITH HBL

2

WHEEL CYLINDER ASSEMBLY

5

AUTO ADJUSTER ASSEMBLY

2.1

BOOT

6

ADJUSTER LEVER

2.2

PISTON

7

UPPER SHOE RETURN SPRING

2.3

SEAL

8

LOWER SHOE RETURN SPRING

2.4

SPRING

9

SHOE SET PIN

2.5

BLEEDER SCREW

10

SHOE HOLD DOWN SPRING

2.6

BLEEDER CAP

11

SHOE HOLD DOWN CUP

3

LEADING SHOE WITH PIN
