CLUTCH RELEASE SYSTEM

5

5. BRAKE PEDAL ASSEMBLY

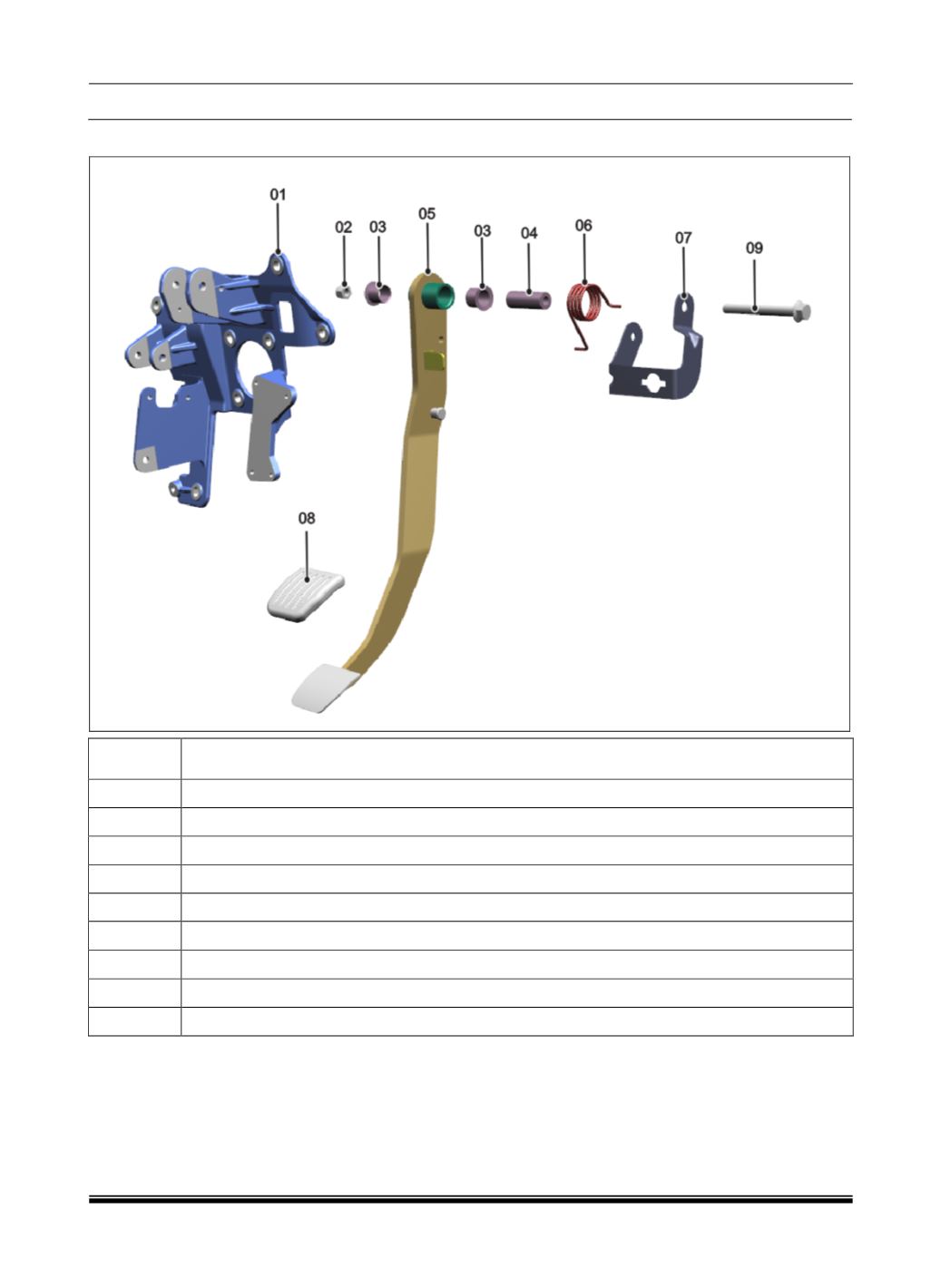

DESCRIPTION

01

CONTROL MOUNTING BRACKET

02

NYLOC NUT M8

03

BRAKE & CLUTCH PEDAL BUSH

04

SPACER (FOR BRAKE AND CLUTCH)

05

BRAKE PEDAL LEVER ASSEMBLY.

06

RETURN SPRING

07

BRACKET B/L SWITCH

08

RUBBER COVER BRAKE

09

HEX FL BOLT
