CLUTCH RELEASE SYSTEM
11

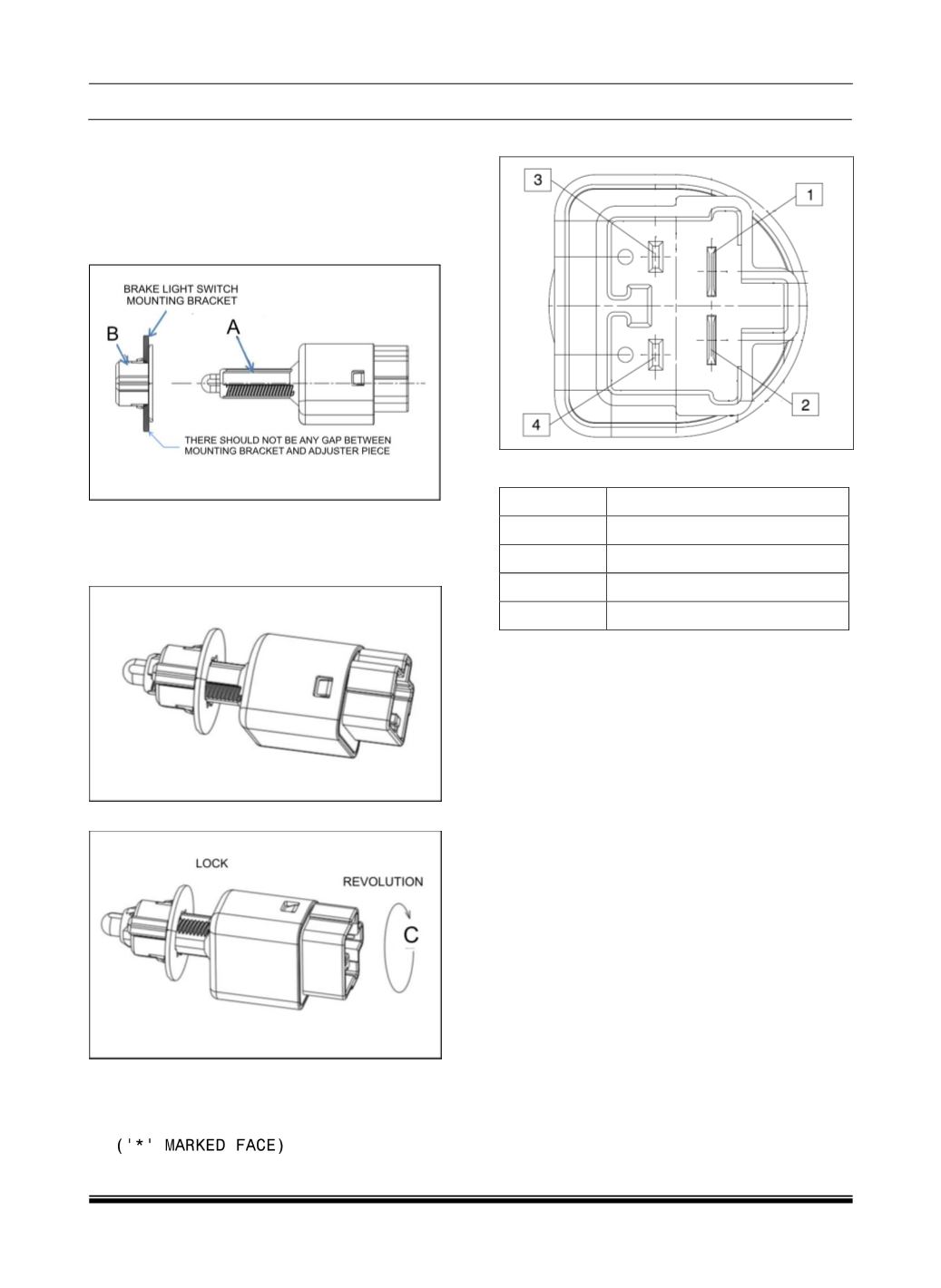

9. BRAKE
SWITCH
INSTALLTION
PROCEDURE
1. Adjuster (B) to be snapped on Brake light
switch mounting bracket.
2. There should not be play in the adjuster after
fitment with mounting bracket.
3. Insert the switch (A) in adjuster (B) till the
switch plunger get completely Pressed against
brake pedal (at this point switch body will rest
on brake pedal)
4. Rotate the switch in direction ‘C until its lock.
5. After locking, the switch will set back by
1±0.15mm. Allowable angular Tolerance for
the operation of pedal is ±1º and will be
checked from the top face of switch Body
.
BRAKE SWITCH CONNECTOR DETAILS
PINOUT DETAILS
PIN NO.
FUNCTION
1
TERMINAL
2
FITMENT
3
OPERATION
4
ADJUSTER PIECE
