206 / 745
C635 TRANSAXLE
19

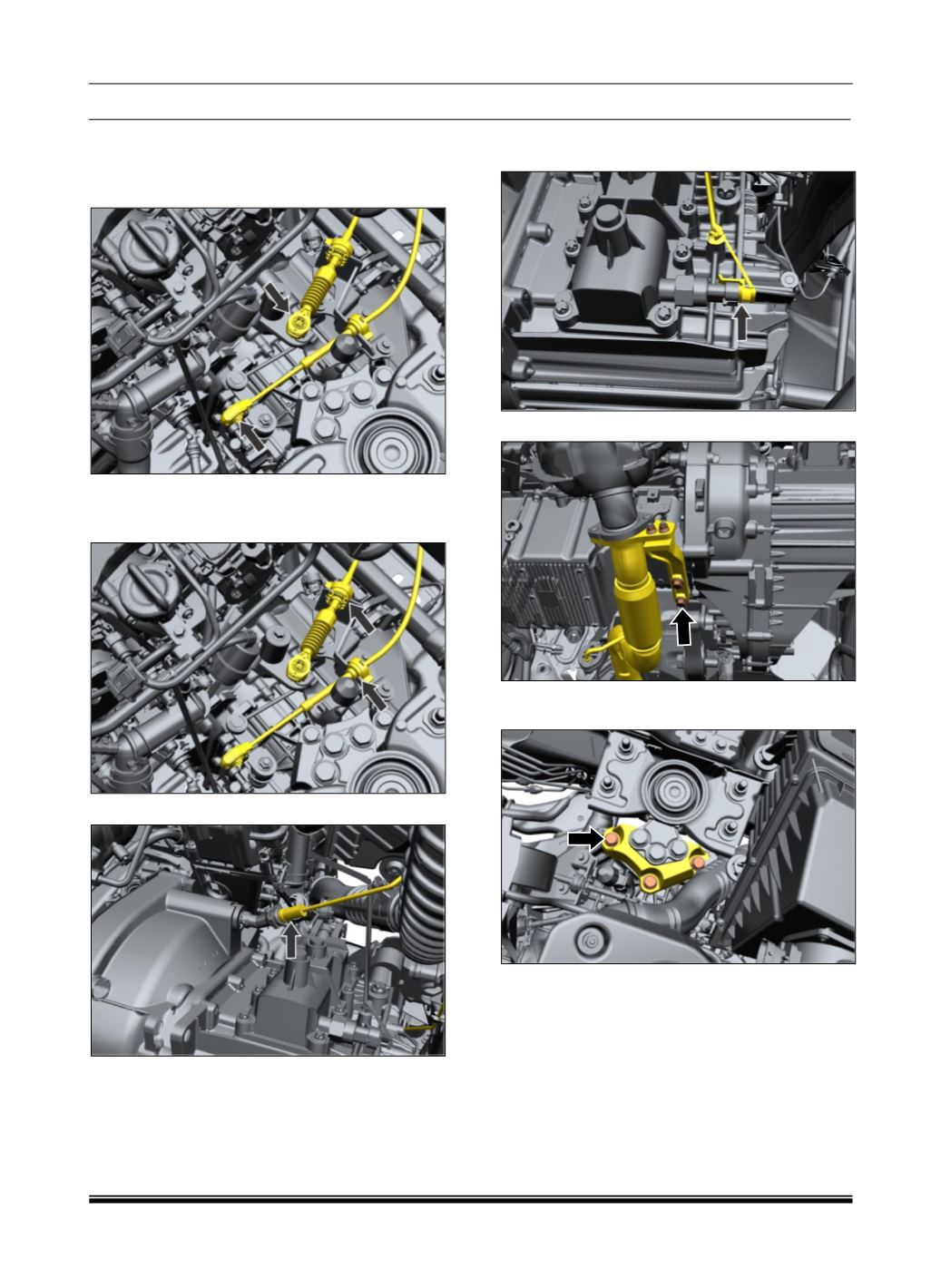

17.Disengage the gear engagement cable end
from the lever by rotating the cable to one side
and prying it off in the direction that continues
the rotating motion.
18.Remove the gear shifter cable from the bracket
by pulling back on the locking collar and lifting
the cable out of the bracket.
19.Disconnect the clutch hydraulic line.
20.Disconnect the reverse light switch wire
harness connector.
21.Remove the Silencer pipe.
22.Remove the hex flange bolt on B mount of
Transaxle.
23.Disconnect the cable at the starter.
24.Remove the nut and disconnect the starter
wiring.
