C635 TRANSAXLE
18

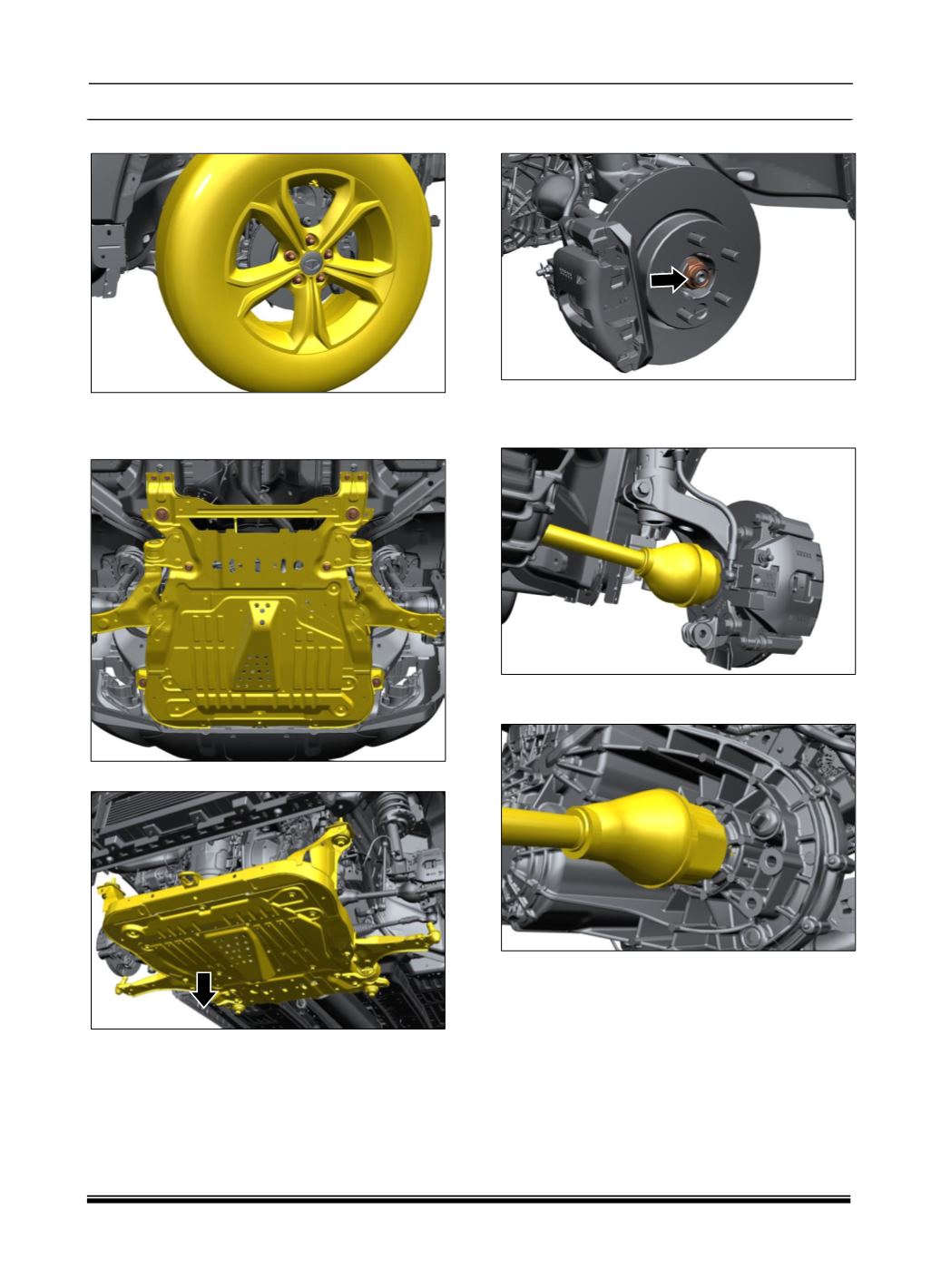

9. Remove the Tires.
10.Support and remove all mountings of ARB Link
rod, Lower wishbone and on the Sub Frame
Assembly.
11.Lower Sub Frame Assembly.
12.Position a suitable transmission jack to properly
support the transmission.
13.Remove Drive shaft Lock Nut.
14.Pull out Stub Axle with shock absorber and
release drive shaft assembly from stub axle end
on both LH & RH side of vehicle.
15.Pull out & separate Drive shaft from RH side of
Gear Box.
16.Remove Intermediate shaft mounting on Engine
Bracket.
