ELECTRICAL
96

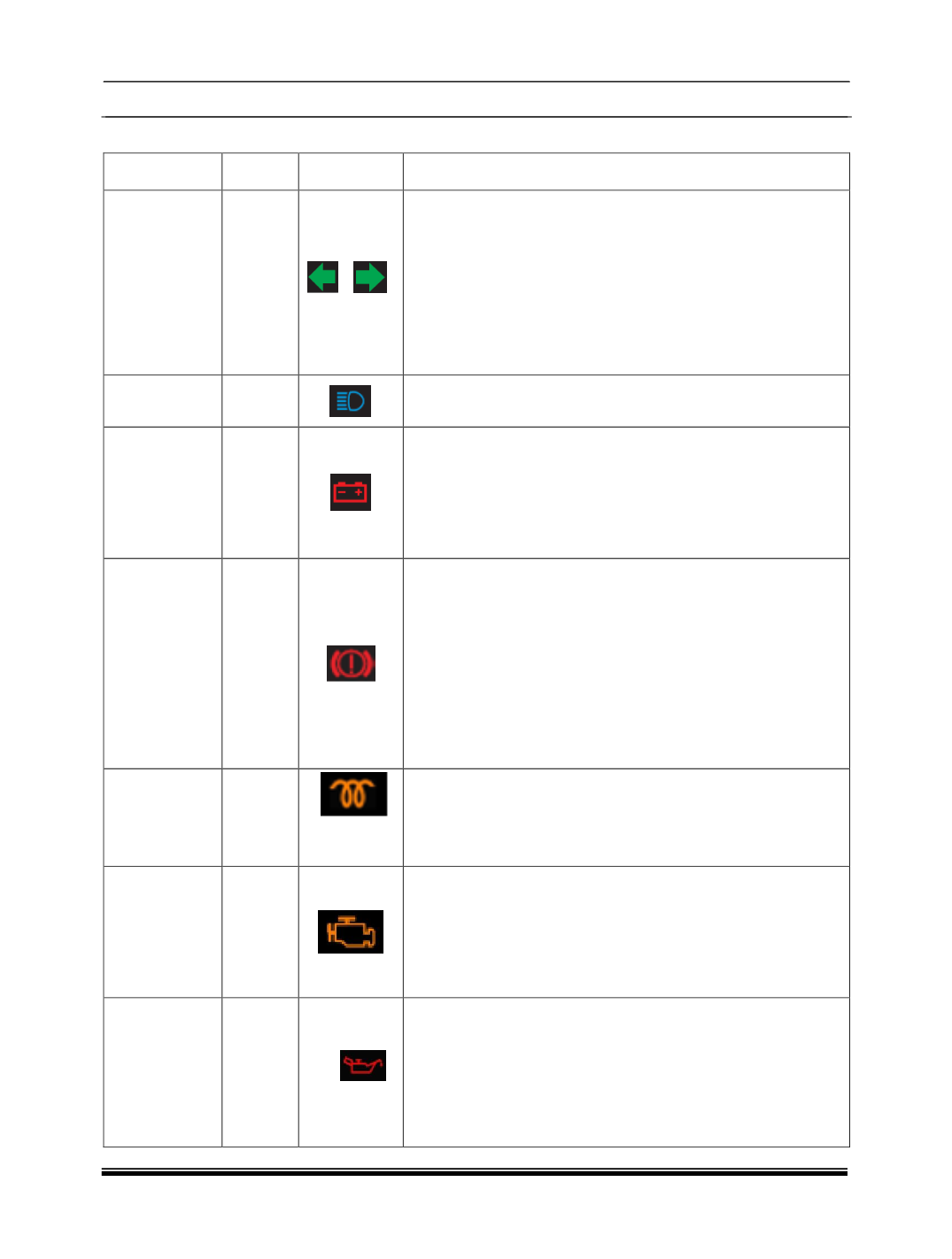

24.2 TELL TALES INFORMATION
TELL TALES COLOR INDICATOR
REMARKS
Turn Signal
Green
One of these symbols comes ‘ON’ when the turn indicators is
switched ‘ON’. Turn signal lamps can be operated only when
the ignition supply is ‘ON’ and by using the turn indicator
switch on the combi-switch. The direction indicator arrow
(LHS) and (RHS) on the instrument cluster flashes along with
external indicator lights as selected.
Both telltales will blink simultaneously when Hazard switch is
pressed.
Tick-Tock sound will be given when any one or both the
telltales are ON
High Beam
Blue
This symbol comes ‘ON’ when the headlamp high beam is
switched ‘ON’
Battery
charging
Red
This symbol lights up when the ‘IGN’ is turned ‘ON’ and should
go ‘OFF’ after the engine starts.
NOTE:
If it remains ‘ON’ while the engine is running, it indicates that
the battery is not getting charged. Switch off all unnecessary
electrical equipment and get the problem attended to at
TATA authorized Service center.
Park Brake
/Brake Fluid
oil
level
indicator/ABS
or
EBD
Malfunction.
Red
This indicator comes ‘ON’ for approximately 4 seconds when
ignition is turned 'ON' and goes ‘OFF’. If it remains ‘ON’, it may
indicate:
1. Brake fluid level is low.
2. Parking brake is applied. It shall go ‘OFF’ when it is
released.
3.
Fault in ABS / EBD system
NOTE:
If it remains ‘ON’ while the engine is running, it indicates that
the brake fluid is low. Get the problem attended to at TATA
authorized Service center.
Diesel
Pre-
Heat/Glow
plug indicator
Amber
This symbol comes ‘ON’ when the ignition key is in the ‘ON’
position.
NOTE:
This telltale is applicable only for Diesel engine
Engine should be started only after this indicator goes ‘OFF’
Malfunction
Indication
Bulb
Amber
This symbol lights up when the ‘IGN’ is turned ‘ON’ and should
go ‘OFF’ after the engine starts.
Caution:
This symbol remains ‘ON’ for any engine related fault that may
cause increase in emission levels of the car beyond the
regulatory limit. Get the problem attended to at TATA
authorized Service center
Low Engine
Oil Pressure
Indicator
Red
When the ignition is turned ‘ON’, this symbol lights up and
goes ‘OFF’ as soon as the required engine oil pressure is
developed after starting the engine.
Warning:
If the low oil pressure indicator does not glow or remains ‘ON’
with the ‘IGN’ ‘ON’ and engine is running, it indicates a fault
in the electrical circuit / lubrication system. Get the problem
attended to at TATA authorized Service center.
