898 / 1003
ELECTRICAL
75

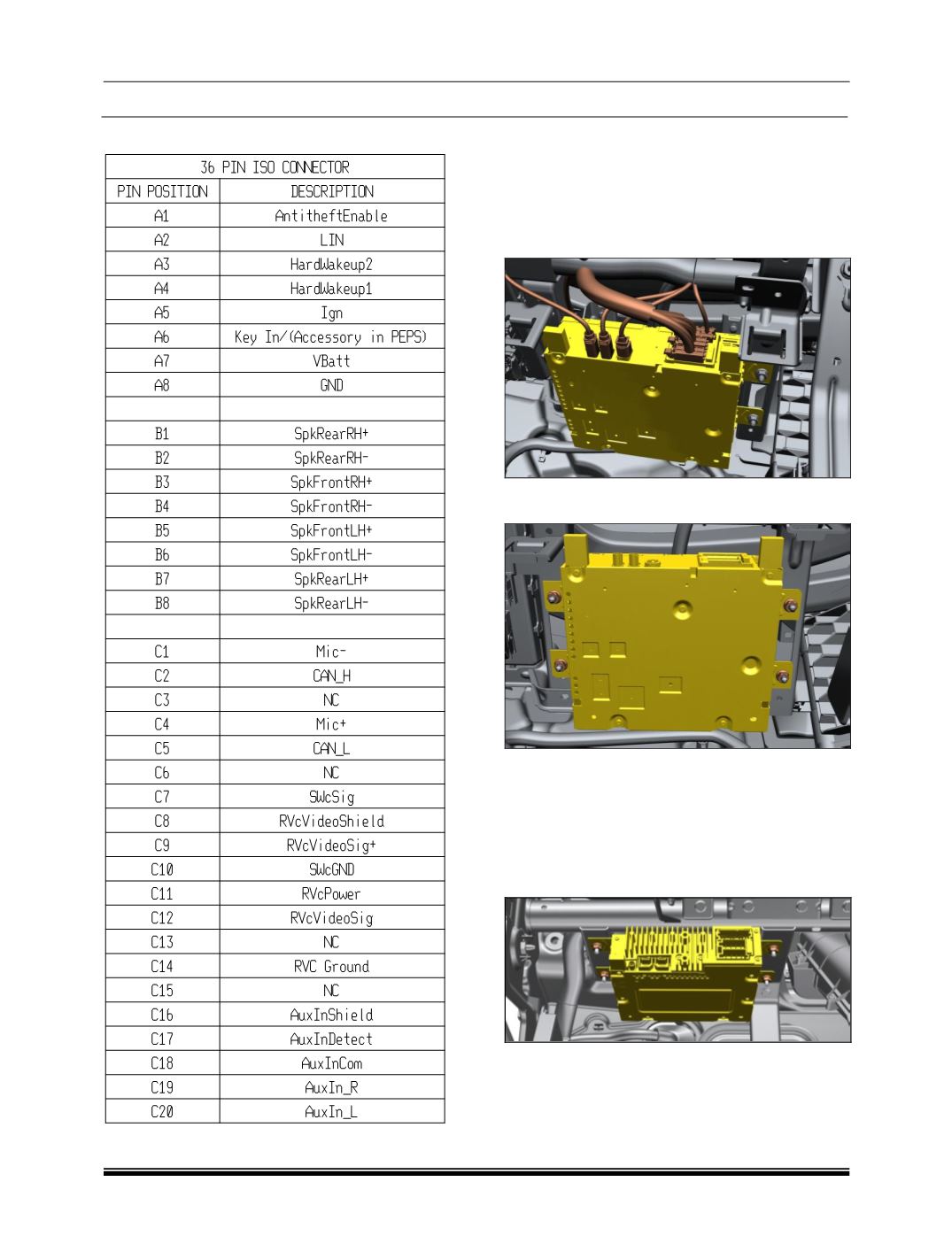

3. 36 PIN ISO CONNECTOR
REMOVAL (HIGH VERSION)
1. Disconnect –VE terminal of Battery.
2. Remove glove box.
(Refer Body Section for
removal procedure)
.
3. Disconnect all the electrical connection to the
silver box.
4. Remove the mounting fasteners and take out
the unit.
LEVEL B (LOW VERSION)
5. Remove glove box.
(Refer Body Section for
removal procedure)
.
6. Disconnect all the electrical connection to the
silver box.
7. Remove the mounting fasteners and take out
the unit.
REFITMENT
For refitment follow the removal procedure in
reverse.
