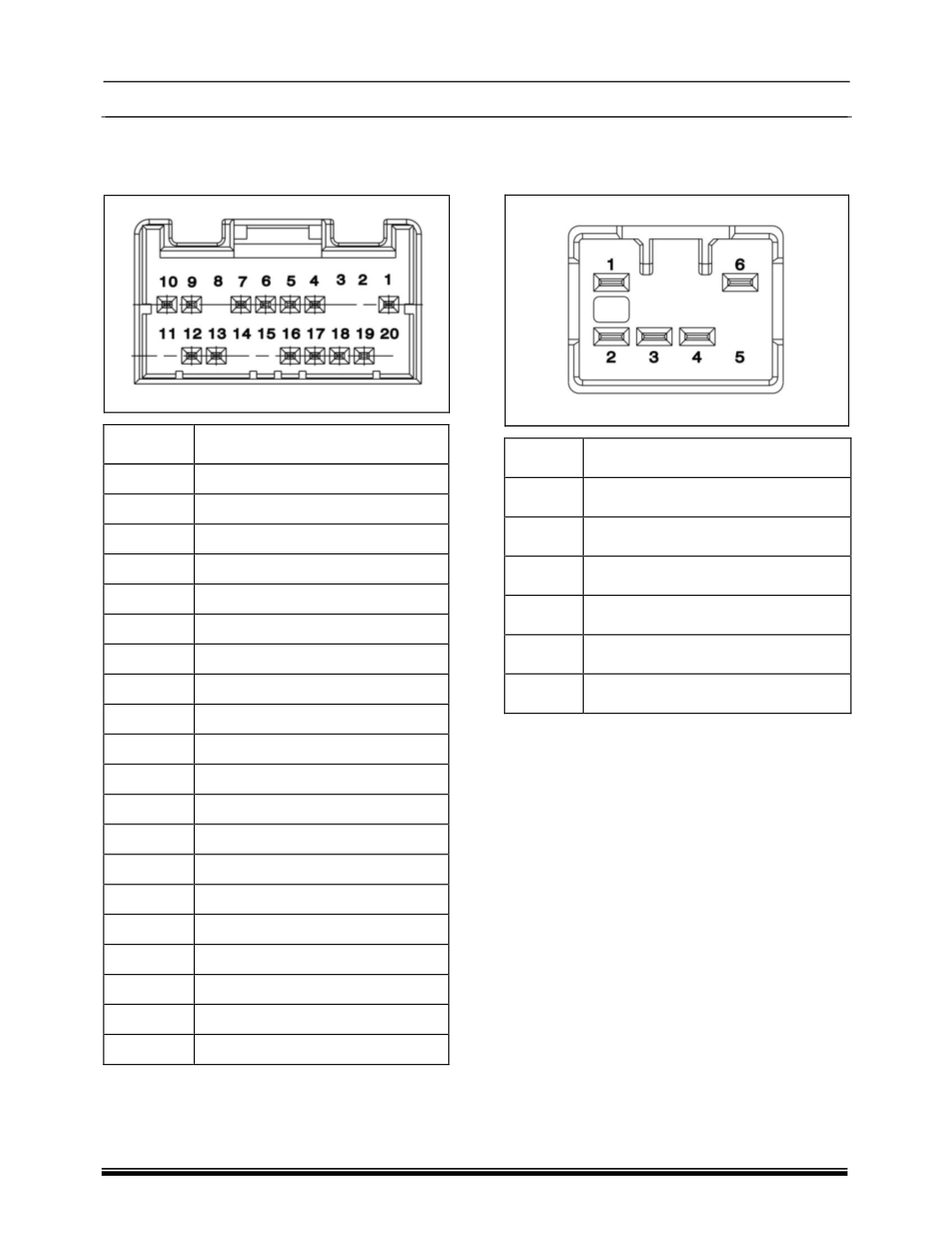

Driver Door Window winding switch is
20 pin connector. For pin out details refer
below table.
PIN
DESCRIPTION
1
WINDOW LOCK
2
BLANK
3
BLANK
4
REAR RH (UP)
5
REARRH(DOWN)
6
EARTH
7
REAR LH(DOWN)
8
BLANK
9
REAR LH(UP)
10
+VE FORW/LOCK INDICATOR
11
BLANK
12
FRONT LH (DOWN)
13
FRONT LH(UP)
14
BLANK
15
BLANK
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
FRONT RH(UP)
19
FRONT RH(DOWN)
20
BLANK
Co-driver, Rear RH & rear LH switch is 6-
pin connector. For pin out details refer
below table.
PIN
DESCRIPTION
1
-VE SUPPLY FOR ILLUMINATION
2
UP
3
DOWN
4
EARTH
5
BLANK
6
+VE SUPPLY FOR ILLUMINATION
