HVAC
47

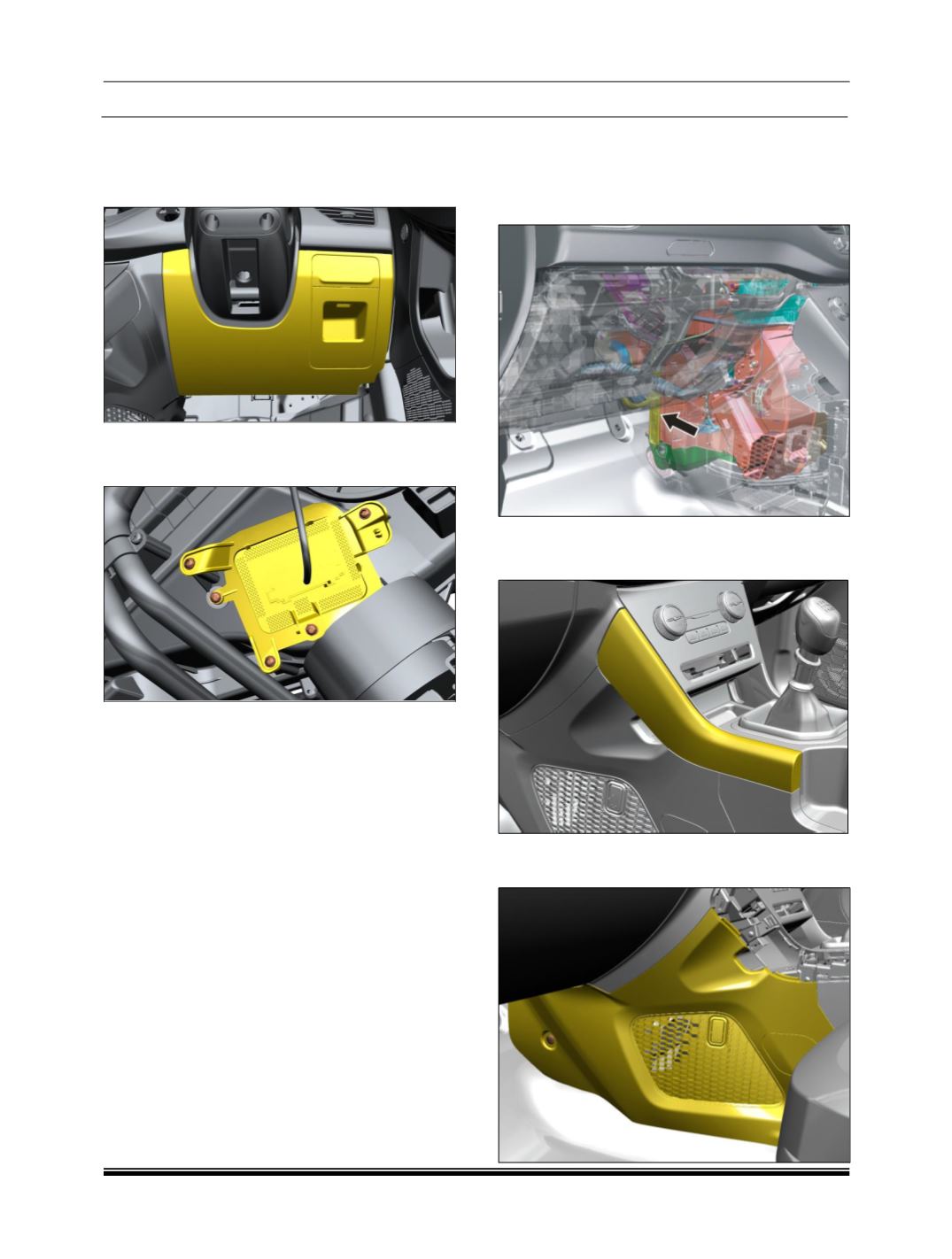

iv. LPM REMOVAL AND ASSEMBLY
REMOVAL
1. Remove HVAC cover.
2. Disconnect electrical connection
.
3. Loosen & remove screw of LPM.
4. Take out LPM unit.
FITMENT
For fitment, follow reverse procedure of removal.
v. AIR FILTER REMOVAL AND ASSEMBLY
LOATION
It is below the dashboard & behind console panel LH
side.
REMOVAL
1. Pull out Console finisher LH side.
2. Remove mounting tree clip of side console panel
LH side & take out the side console panel LH.
