STEERING

11

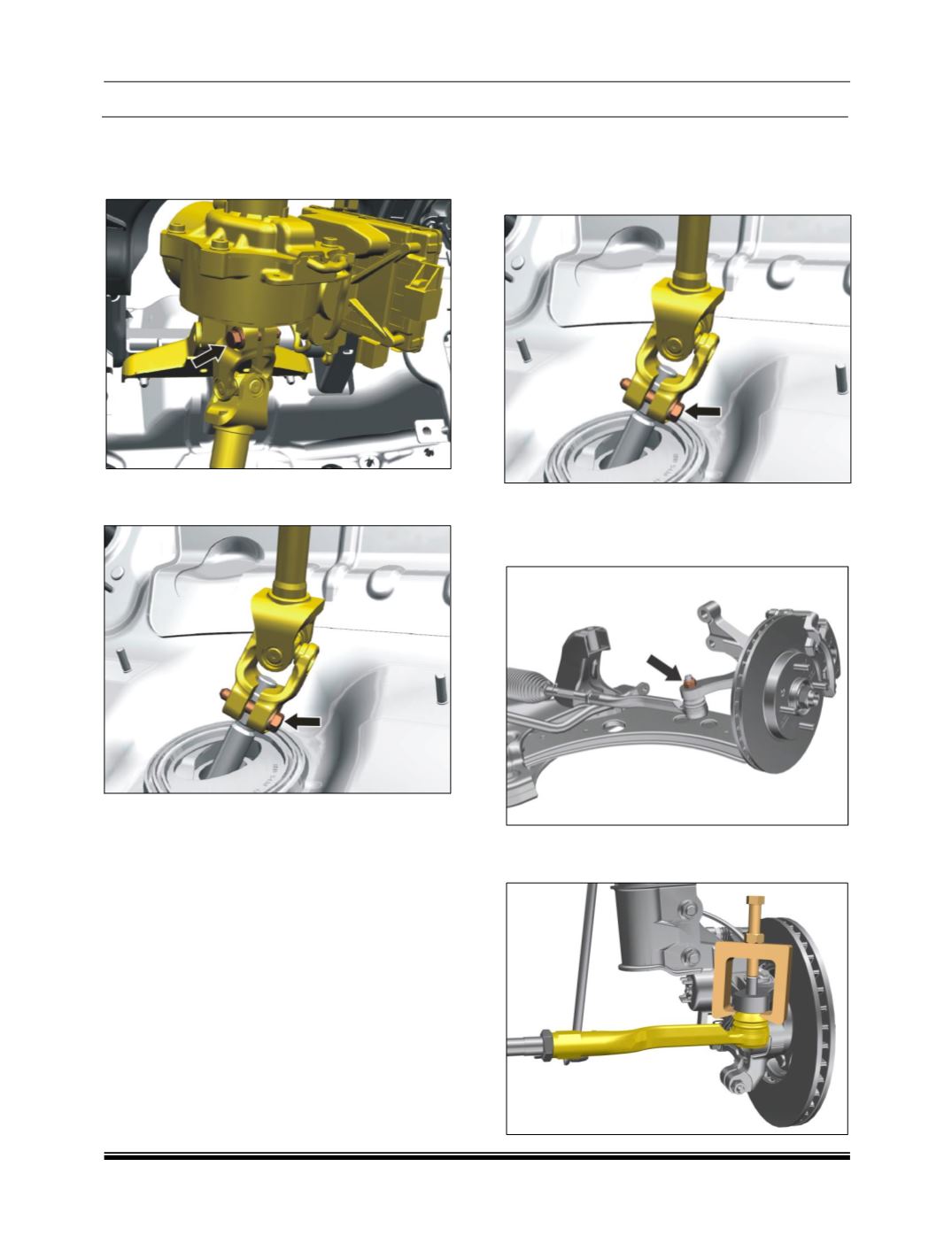

3. INTERMEADIATE SHAFT REMOVAL

1. Loosen the universal joint bolt between

steering column & intermediate shaft.

2. Remove the universal joint bolt between

intermediate shaft and rack & pinion assembly.

3. Disengage the intermediate shaft from rack &

pinion assembly and take out the intermediate

shaft.

REFITMENT:

For assembly follow reverse procedure of

removal.

NOTE:

Do not reuse the universal joint bolts.

4. RACK & PINION ASSEMBLY REMOVAL

1. Remove lower universal joint bolt and make

steering rack free from the steering column

assembly.

2. Remove both front wheels (Refer wheel

removal procedure / Wheels and tyres group).

3. Remove tie rod ball joint nyloc nut.

4. Remove tie rod end by using tie rod ball joint

puller. (Part No. 2871 5890 4601).
