STEERING
9
C. ON VEHICLE REPAIRS

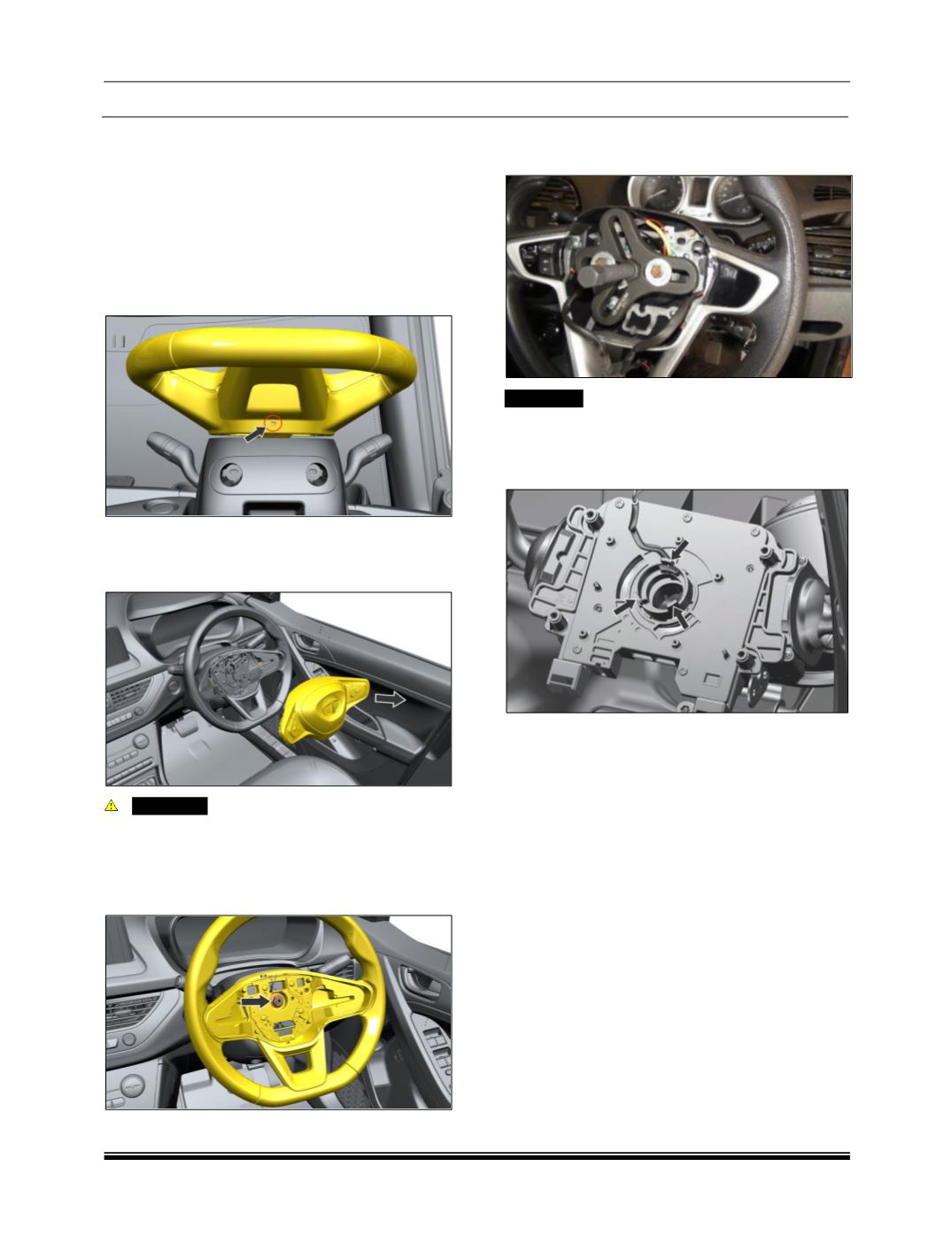

1. STEERING WHEEL REMOVAL
1. Park the car with front wheel in straight ahead
position. Apply parking brake and place wheel
chokes at rear wheels.
2. Disconnect battery.
3. Insert screw driver into hole and press to unlock
the DAB assembly.
4. Pull out the DAB assembly (In case of Airbag
version refer DAB removal procedure in SRS
section).
WARNING
Before removing steering wheel make alignment
marks on the steering wheel and the shaft for
guiding during reinstallation.
5. Remove the steering wheel nut.
Remove steering wheel using steering wheel
puller. (Part No.
8855TOOL0001
)
! CAUTION
Care should be taken such that self-cancellation
lugs do not get damaged (self-cancellation lugs are
shown in below figure with arrows).
INSPECTION:
Check for any damage to self-cancellation lugs, if
found, replace complete steering wheel
INSTALLATION:
1. Align the marks made on the steering wheel and
the shaft. Install steering wheel on steering shaft
2. Tighten the steering wheel nut to the specified
torque.
Tightening torque (Steering wheel nut) = 4Kg-m
3. Fit horn pad (Press fit type).
4. Connect battery.
