DRIVESHAFT AMT
12

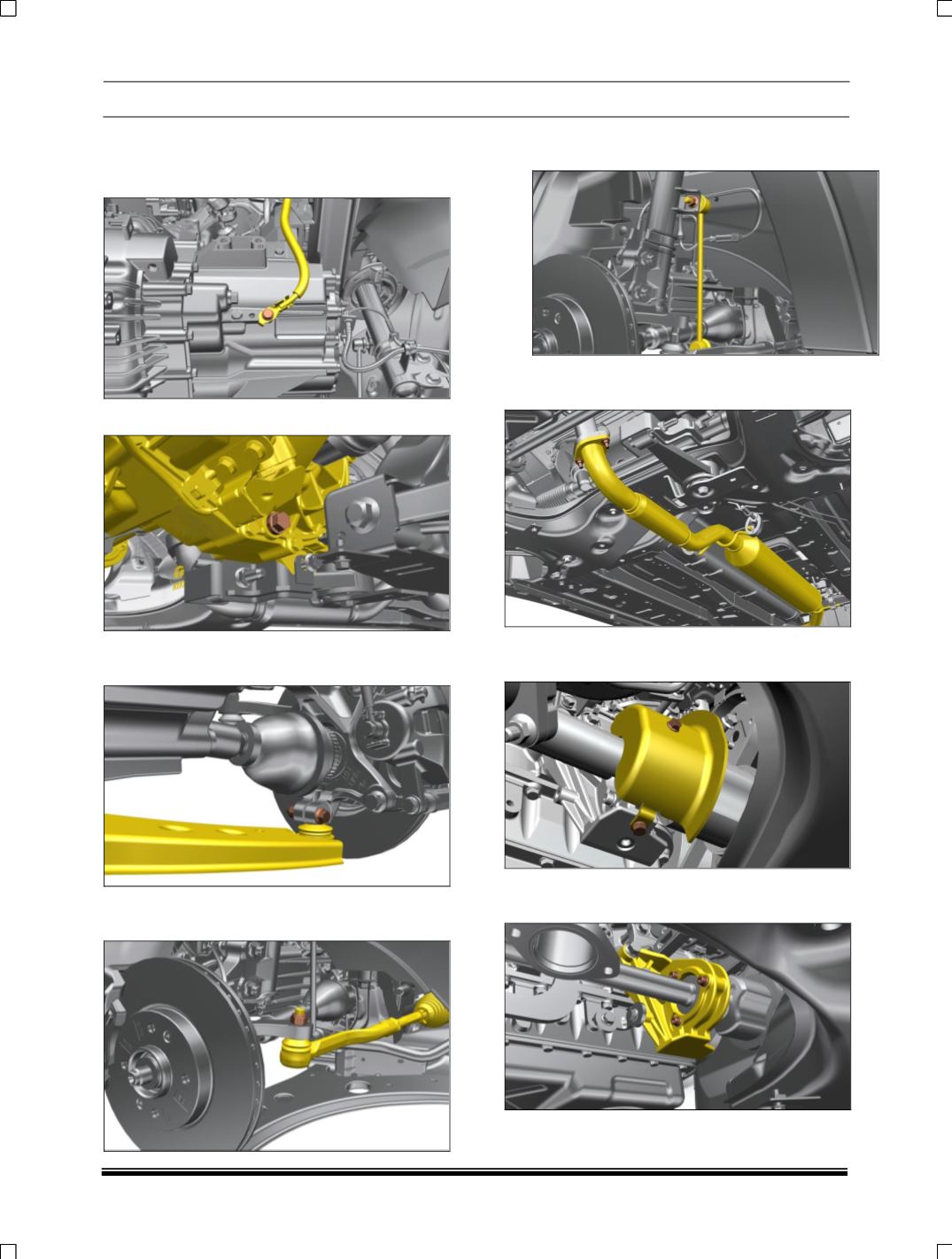

5. Remove four mountings & take out tyres on
LH & RH side.
6. Remove earthing cable from gear box.
7. Drain the Transaxle oil through Drain Plug.
8. Remove stub axle ball joint Mounting &
Loosen Lower Control Arm on LH & RH side.
9. Remove ball joint (steering rack) from steering
knuckle from both sides.
10. Remove vertical link mountings on
suspension rod for both RH & LH sides.
11. Remove pre silencer Assy with pipe, front &
outlet pipe.
12. Remove 2 mtg bolt of intermediate shaft heat
shield & take out heat shield.
13. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side.
