DRIVESHAFT AMT
11

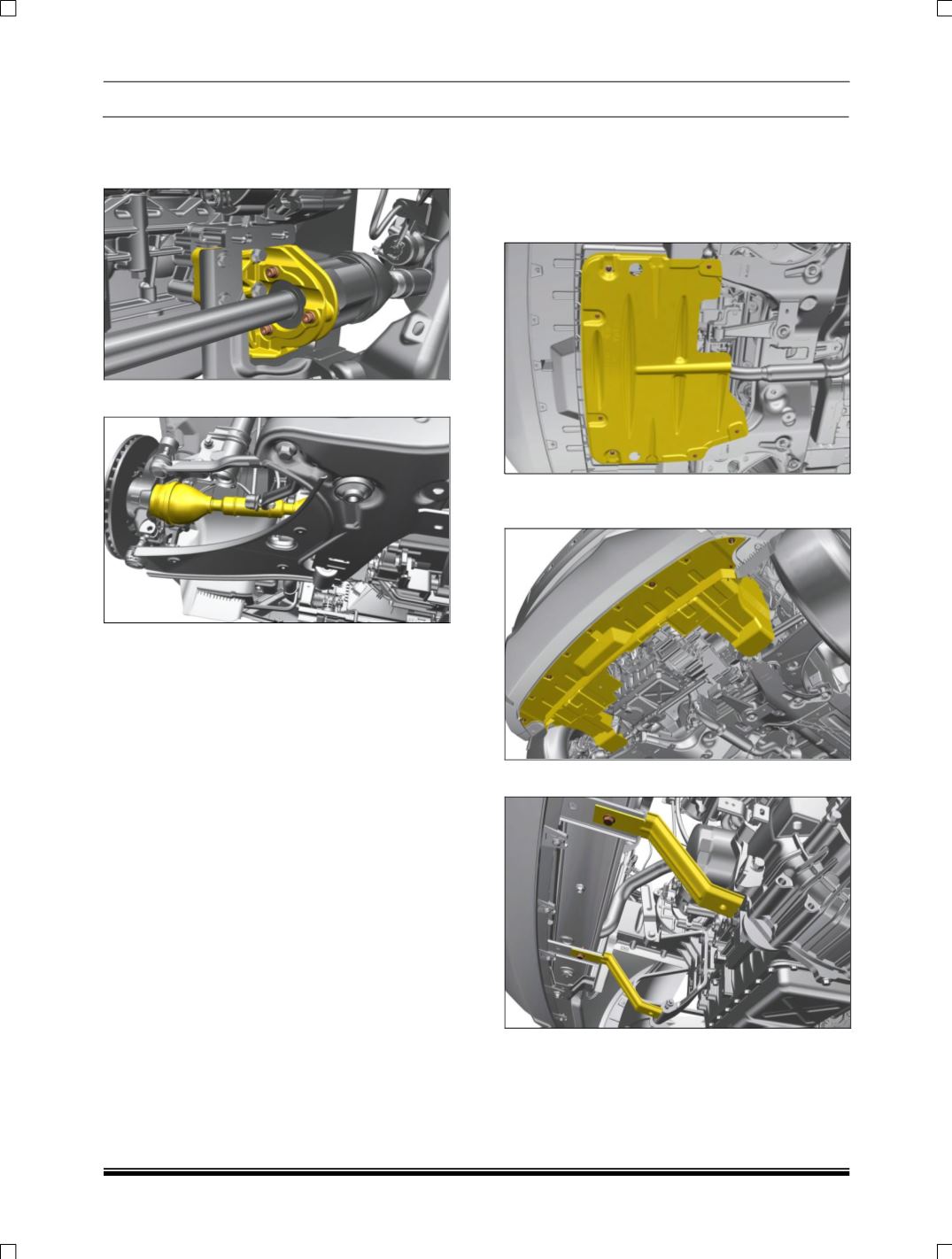

10. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side/Engine
side.
11. Remove Drive shaft from co-driver side.
NOTE:
C
are should be taken not to damage driveshaft
oil seal and its boots (do not use hammer)
.
CAUTION:
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines. Do not place the
CV drive shaft on rough / uncleaned surfaces.
This might damage the drive shaft boot.
INSTALLATION:
Follow the reverse procedure of removal.
B. DRIVE SHAFT (LH / RH) REMOVAL
(DIESEL VEHICEL)
1. Park vehicle on forepost.
2. Remove Assy. bottom shield mounting or
stone guard.
3. Remove splash guard & also remove mud
liner inner front LH & RH side.
4. Remove stone guard bracket Assy.
