DRIVESHAFT AMT
1
1. GENERAL INFORMATION
Driveshaft assemblies transmit engine power to independently suspended wheels. They consist of an inner
and outer constant velocity joint connected by an axle shaft. The inner joint is completely flexible and can
move in and out. The outer joint is also flexible, but cannot move in and out.

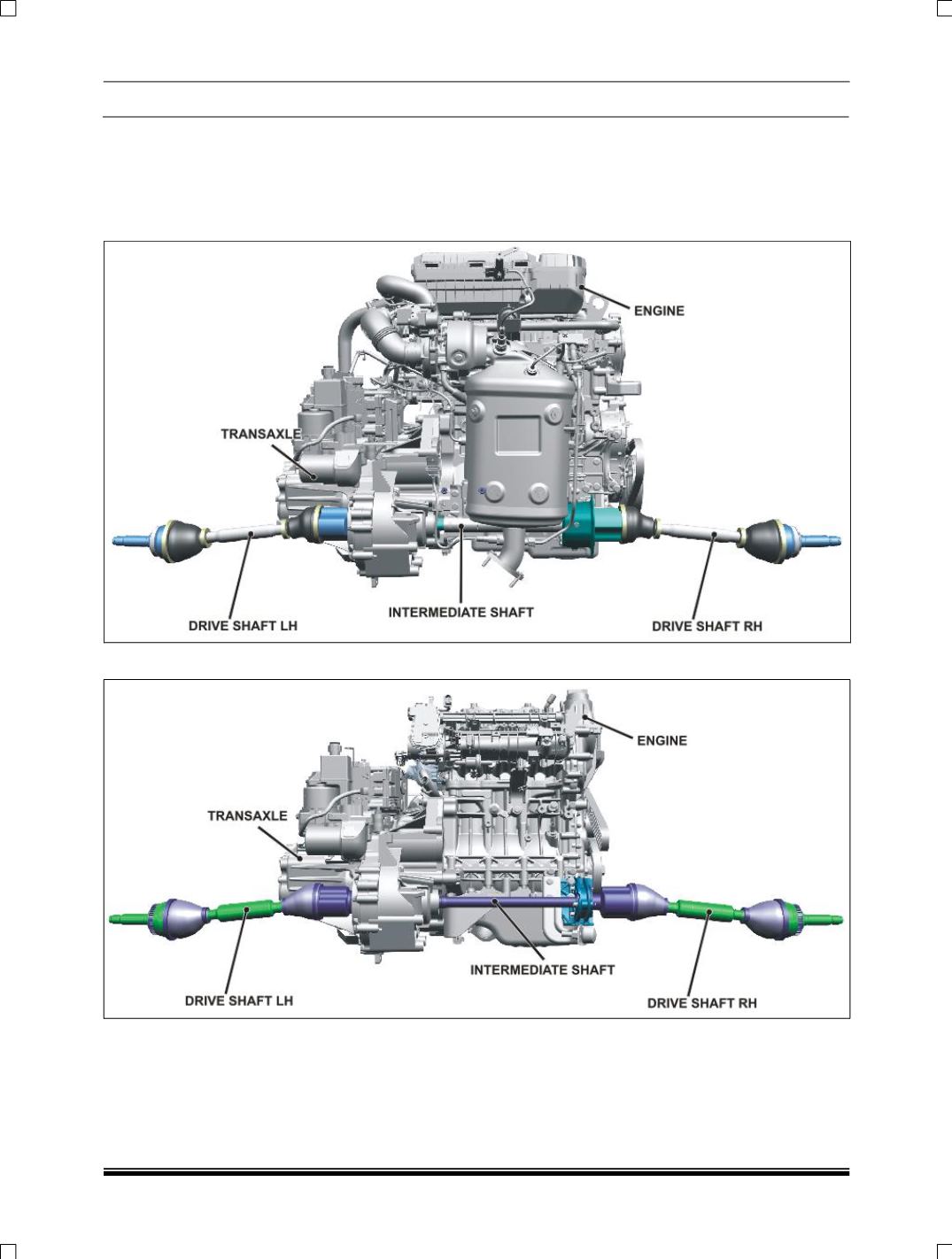

DRIVESHAFT LAYOUT (FOR DIESEL)
DRIVESHAFT LAYOUT (FOR PETROL)
