TRANSAXLE TA6300 AMT
59

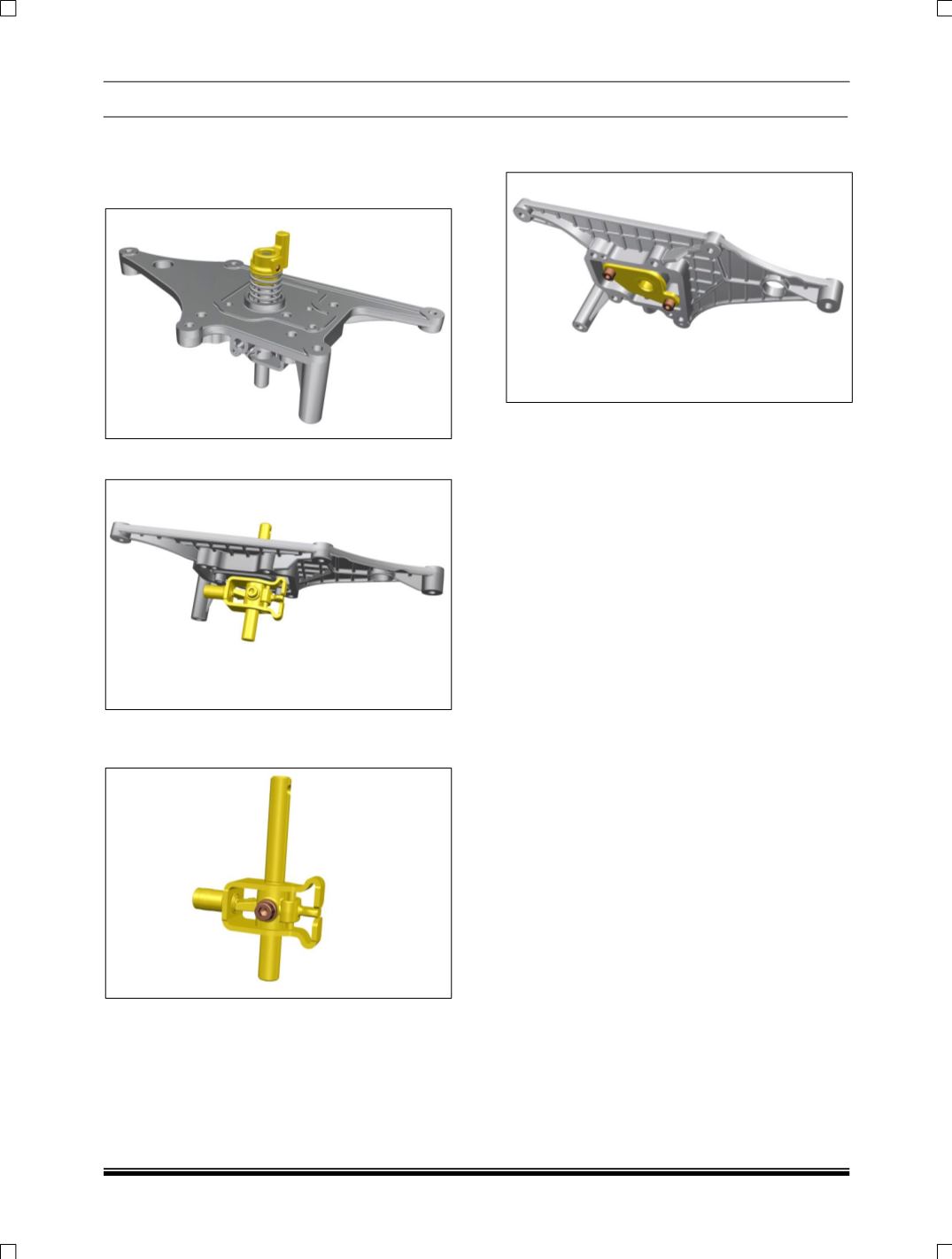

ASSEMBLY OF TOP COVER:
DISMANTLING:
1. Loosen Spiral pin & take out Interface Finger.
2. Take out selector shifter shaft Assy
3. Loosen cross pin Bolt of Selector shifter shaft
to remove interlock & shift finger Assy.
4. Remove Cap screw M8X20 & take out spring
seat sub Assy.
ASSEMBLY TOP COVER:
Follow the Reverse Procedure as given above.
NOTE:
Fixture required for spring seat assembly.
