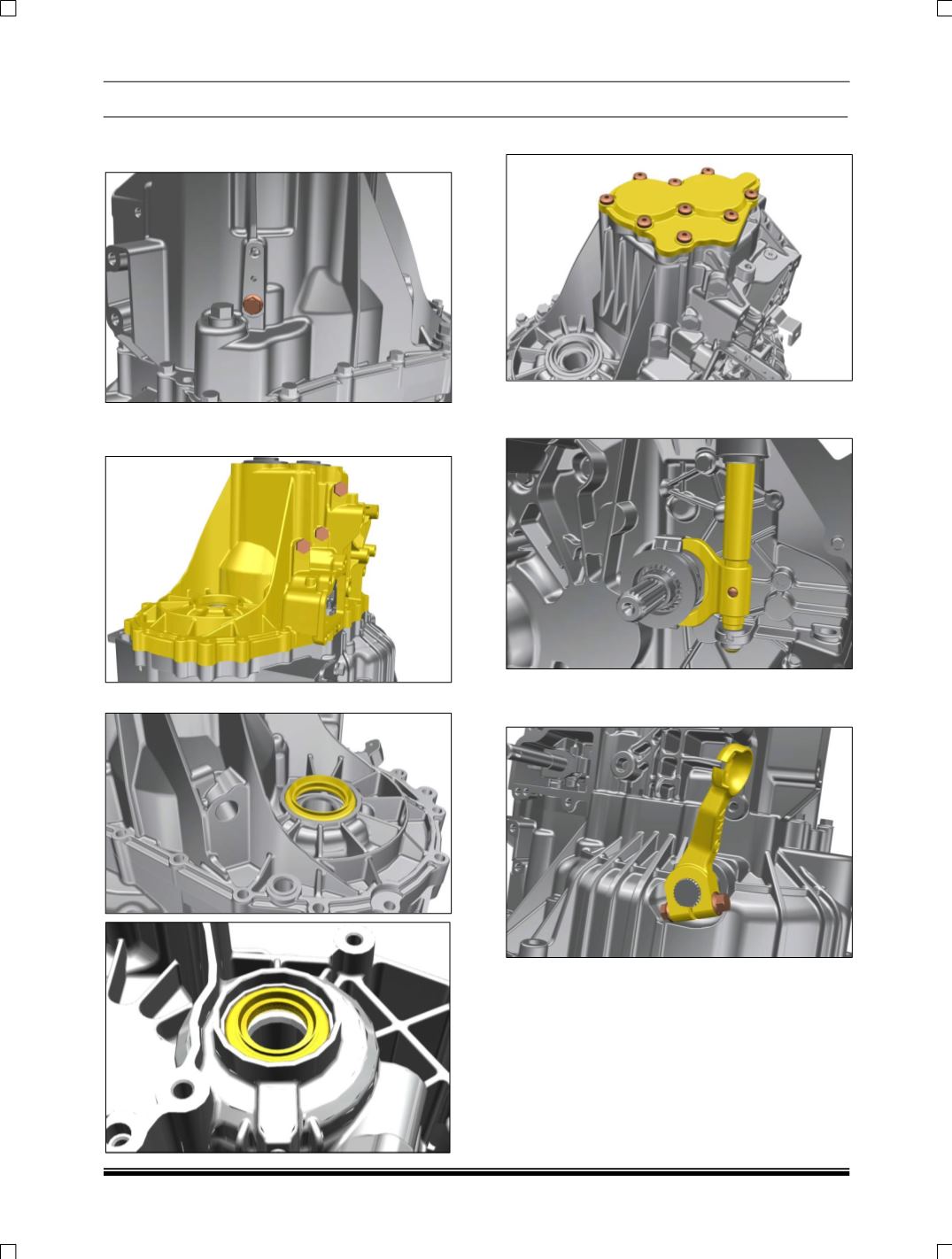

12. Assemble Hex FL bolt M8X25 for Reverse
Idler.
13. Assemble DETENT ASSY (SHIFTER SHAFT)
as shown.
14. Assemble front & rear Oil Seal.
15. Assemble rear cover.
16. Fix grooved pin & connect Clutch release
shaft & Clutch release Fork.
17. Assemble hex flanged screw holding release
lever on to release yoke.
