TRANSAXLE TA6300 AMT
21

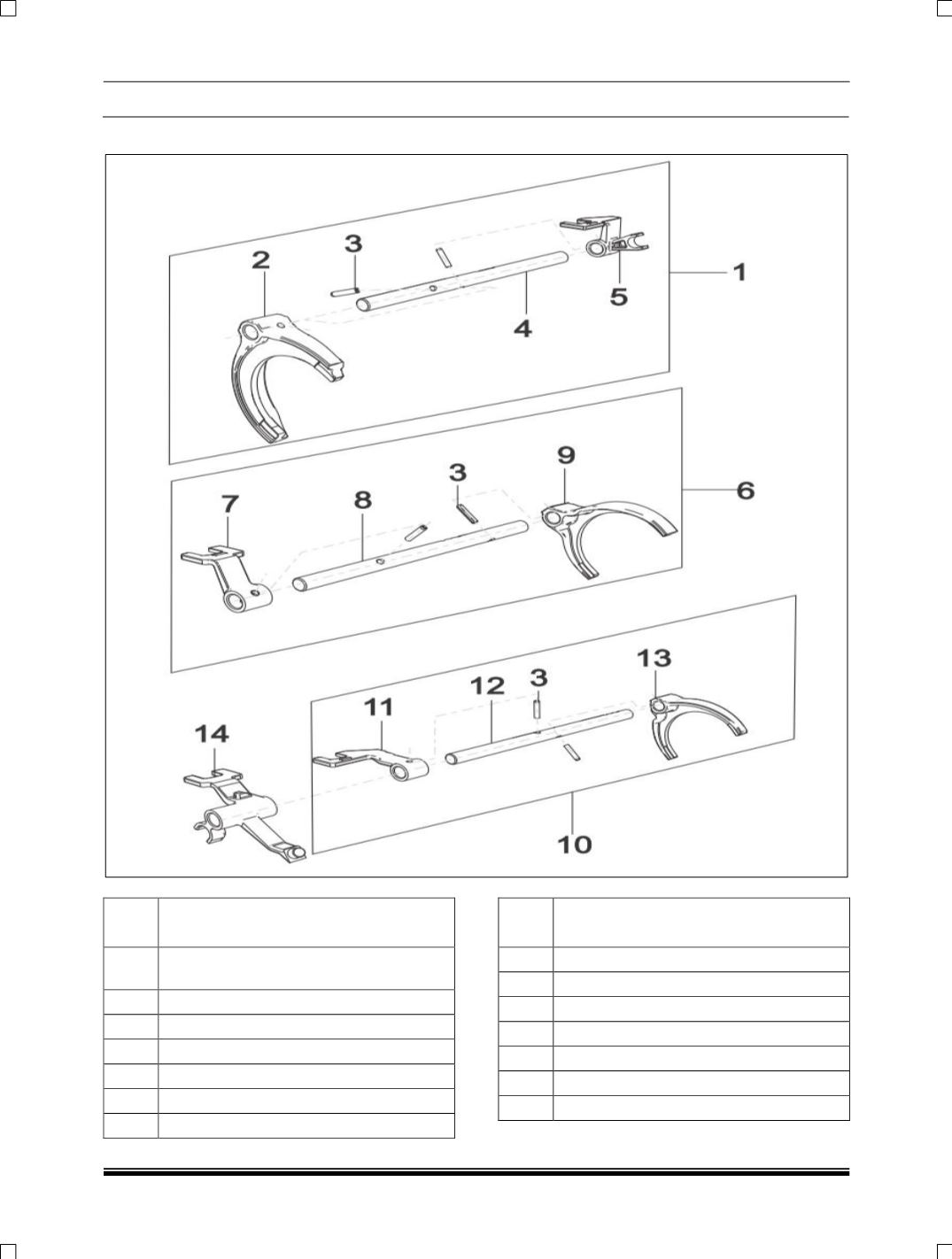

EXPLODED VIEW OF SHIFTER FORK
SR.
NO.
DESCRIPTION
1
SHIFTER SHAFT ASSY WITH FORK &
DOG (1/2)
2
SHIFTER FORK;1ST/2ND SPEED
3
ASSY DOWEL SLEEVE
4
SHIFTER SHAFT;1/2 SPEED
5
SHIFTER DOG (1/2 SPEED)
6
SHIFTER SHAFT ASSY ;5/6 SPEED
7
SHIFTER DOG (5/6 SPEED)
SR.
NO.
DESCRIPTION
8
SHIFTER SHAFT (5/6 SPEED)
9
SHIFTER FORK (5TH/6TH SPEED)
10
SHIFTER SHAFT SUB ASSY;3/4
11
SHIFTER DOG (3/4 SPEED)
12
SHIFTER SHAFT (3/4 SPEED)
13
SHIFTER FORK(3RD/4TH SPEED)
14
SHIFTER DOG (REV.SPEED)
