TRANSAXLE TA6300 AMT
22

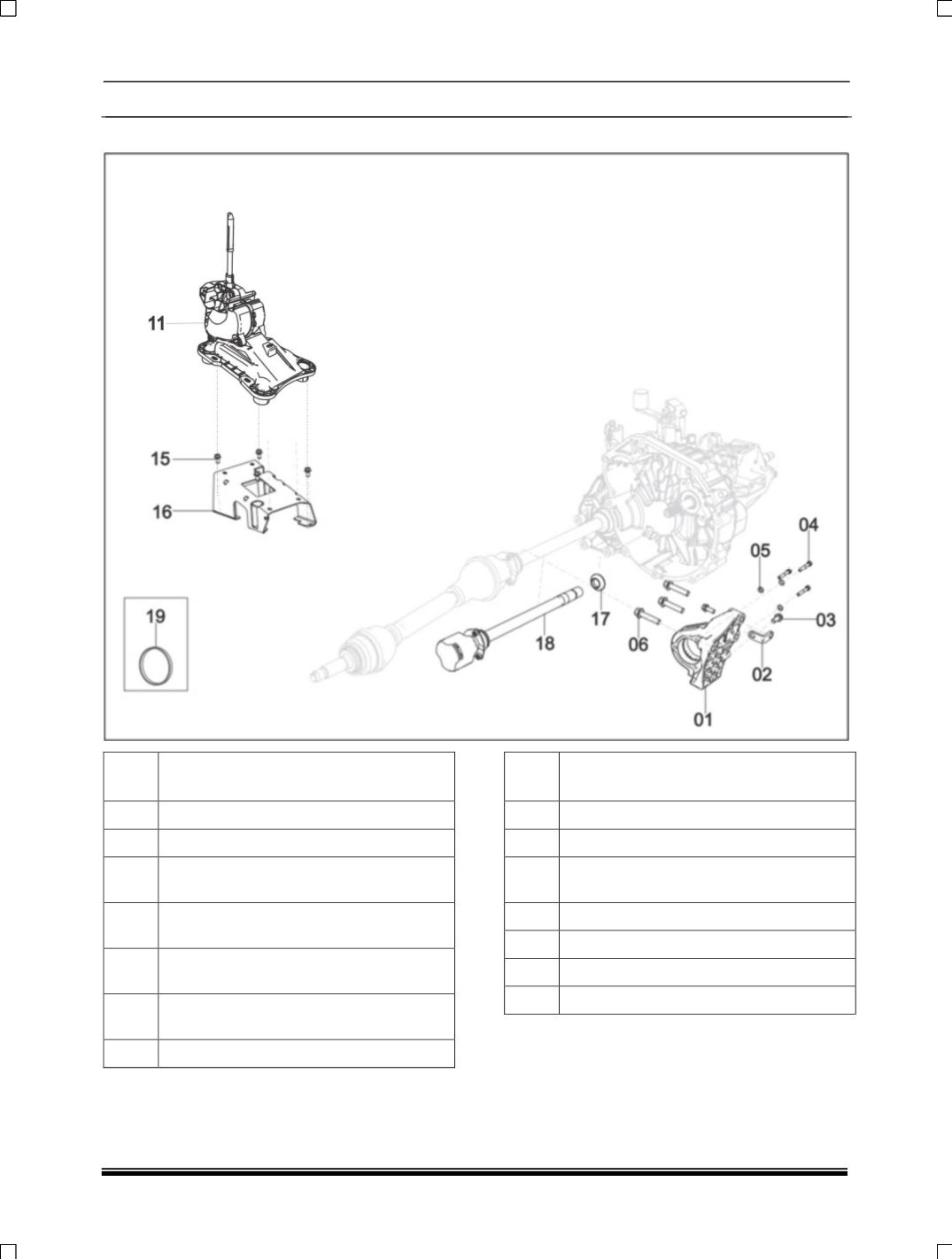

EXPLODED VIEW OF GEAR SHIFT LINKAGE ASSEMBLY:
SR.
NO.
DESCRIPTION
01
BRACKET (INTERMEDIATE SHAFT)
02
SUPPORT BRACKET
03
HEX FL SCR M8X20 TS17130-8.8-
SS8451S2-Y
04
CAP SCREW M6X45 IS2269 12.9
SS9400
05
BRIGHT WASHER 6.4 IS2016 ST
SS8451S2-Y
06
HEX FL BOLT M10X45 TS17130-8.8-
SS8451S2-Y
08
WASHER A6.4 IS5370 ST SS8451S2-Y
SR.
NO.
DESCRIPTION
10
HEX FL NUT AM6
11
GEAR SHIFT UNIT ASSY
15
H/FL SCR M8X16 TS17130-8.8-
SS8457S1-S-B
16
BRACKET ASSY;SHIFTER UNIT MTG
17
DUST SEAL
18
ASSY.INTERMEDIATE SHAFT (RH);
19
CLAMP INBOARD BOOT (RH)
