499 / 1003
TRANSAXLE TA6300 AMT
16
7. SECTION VIEWS

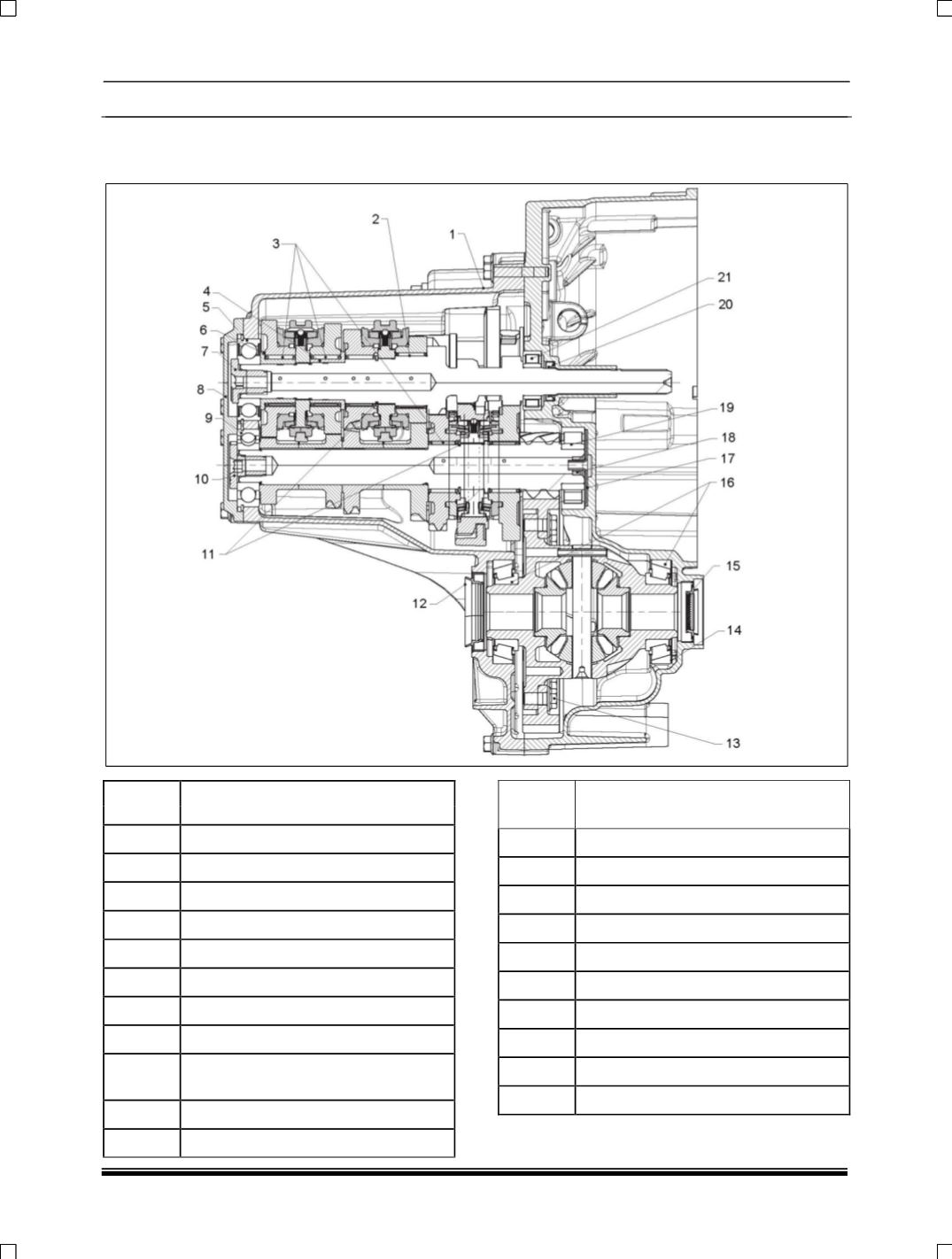

CUT SECTION OF TRANSAXLE TA6300 AMT:
SR. NO.
DESCRIPTION
1
HOUSING;REAR-HALF
2
NEEDLE CAGE (3RD GEAR I/S)
3
NEEDLE CAGE (1ST GEAR L/S)
4
BUSH 5TH GEAR INPUT SHAFT
5
DEEP GROOVE BALL BRG
6
BUSH 6TH GEAR I/P SHAFT
7
CLAMPING SCREW M20 X 1.5
8
COVER REAR HALF
9
DEEP GROOVE BALL BEARING
(L/S)
10
CLAMPING SCREW M18 X 1.5 LH
11
SNAP RING
SR NO.
DESCRIPTION
12
OIL SEAL (DRIVE SHAFT)
13
COLLARED SCREW
14
SHIM;DIFFERENTAIL BRG
15
OIL SEAL (DRIVE SHAFT)
16
TAPER ROLLER BEARING
17
OIL FEEDER;LAYSHAFT
18
OIL RING
19
CYL.ROLLER BRG
20
OIL SEAL (INPUT SHAFT)
21
CYLINDRICAL ROLLER BRG
